Technical Information
iSafePro 360 - VERSO
Central unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSafe Pro 360 Verso and is the answer not in the manual?

Questions and answers

Summary of Contents for Immotec iSafe Pro 360 Verso

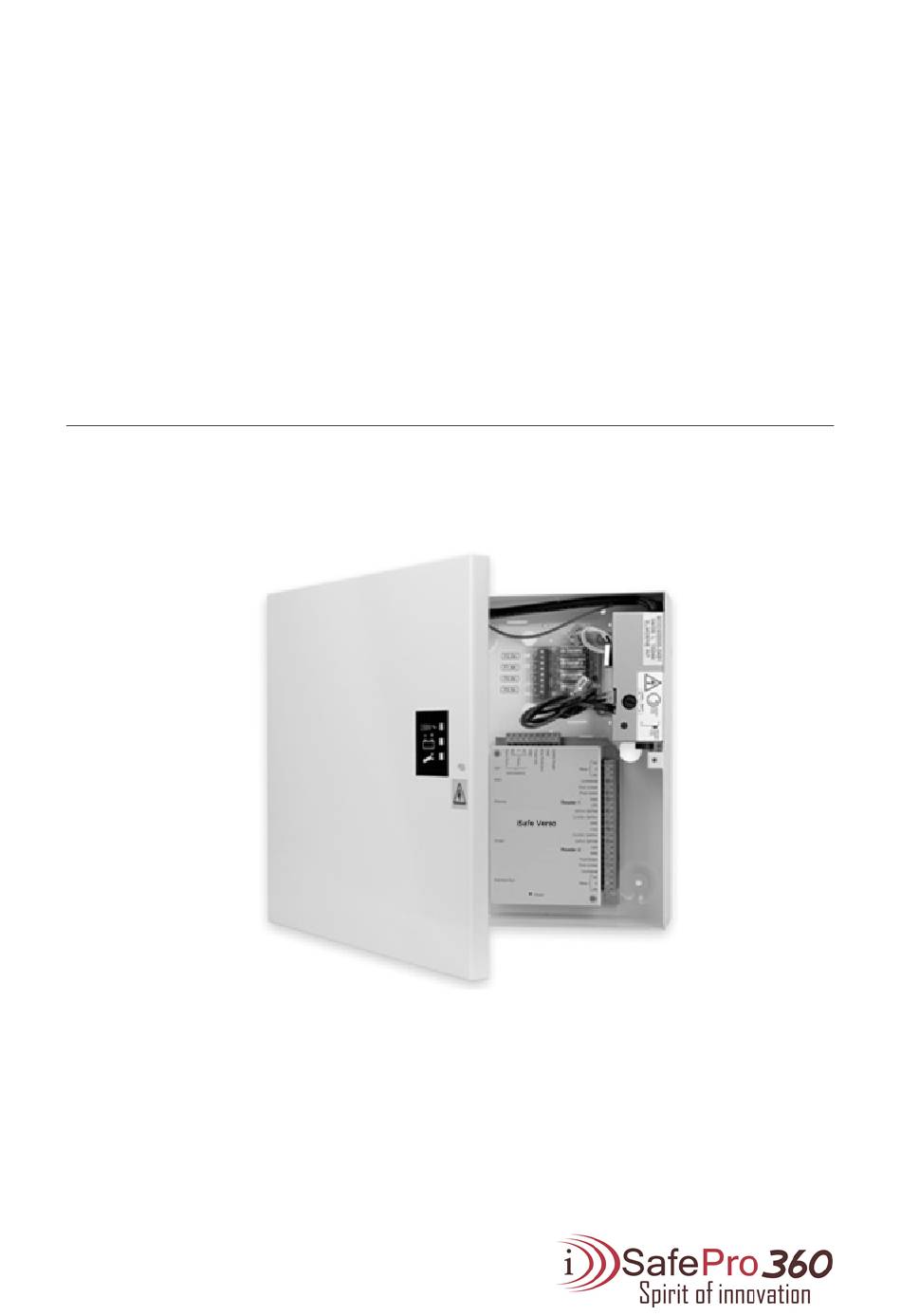

  • Page 1 Technical Information iSafePro 360 - VERSO Central unit...

  • Page 2: Table Of Contents

    Technical information iSafePro 360 VERSO – V1.0 p.2/13 CONTENTS CONTENTS ..........................2 Acknowledgement ......................... 3 Information and RECOMMENDATIONS ................4 Technical characteristics ..................... 5 1) VERSO ......... 5 2) VERSO-220 ........5 3) PROTECTION ......5 CONNECTING A DEVICE USING THE wiegand or clock & data protocol ....... 6 CONNECTING V-EXT4 AND V-EXT4-220 modules .............

  • Page 3: Acknowledgement

    You have just purchased an “iSafePro 360 VERSO” unit. We thank you for your interest in our products. If you want more information about our range, please don’t hesitate to contact your dealer. We wish you every success with your installation. Immotec systems, Inc. www.immotec.ca...

  • Page 4: Information And Recommendations

    Technical information iSafePro 360 VERSO – V1.0 p.4/13 INFORMATION AND RECOMMENDATIONS o Pursuant to European directive UTE C00-200, incorporating directives 89/336 EEC and 92/31 EEC, VERSO complies with the following standards: • NF EN 50081-1 governing electromagnetic radiation, and • NF EN 50082-1 governing electromagnetic susceptibility. o Cabling recommendations: the cables used to connect readers, the network and other periph- erals must be installed in accordance with the instructions for Level 2 (protected environment) of standard NF EN 61000-4-4.

  • Page 5: Technical Characteristics

    Technical information iSafePro 360 VERSO – V1.0 p.5/13 TECHNICAL CHARACTERISTICS 1) iSafePro 360 VERSO Maximum power consumption ..300 mA Supply voltage ........ 9 – 14VDC Weight with housing ......150 g Housing dimensions ......157 x 108 x 30 mm Operating temperature ....

  • Page 6: Connecting A Device Using The Wiegand Or Clock & Data Protocol

    Technical information iSafePro 360 VERSO – V1.0 p.6/13 CONNECTING A DEVICE USING THE WIEGAND OR CLOCK & DATA PROTOCOL WIEGAND: o Proximity readers (HID, INDALA, etc.) o Key pads (HID, etc.) o Biometric readers o Radio receivers CLOCK & DATA: DATA0 / DATA o Magnetic strip readers DATA1 / CLOCK...

  • Page 7: Connecting V-Ext4 And V-Ext4-220 Modules

    Technical information iSafePro 360 VERSO – V1.0 p.7/13 CONNECTING V-EXT4 AND V-EXT4-220 MODULES VERSO V-EXT4 Up to 10 modules per RS485 VERSO You can also use the A and B terminals on the V-EXT4 modules to connect an RS485 bus. Information: 2 conductors (2 pairs recommended) Max.

  • Page 8: Connecting A Power Loss Bolt And An Electromagnetic Door Lock Operating On Power Loss

    Technical information iSafePro 360 VERSO – V1.0 p.8/13 CONNECTING A POWER LOSS BOLT AND AN ELECTROMAGNETIC DOOR LOCK OPERATING ON POWER LOSS Anti-return diode Power supply +12V 0V Warning: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above.

  • Page 9: Connecting A Standard Power-On Door Lock

    Technical information iSafePro 360 VERSO – V1.0 p.9/13 CONNECTING A STANDARD POWER-ON DOOR LOCK Anti-return diode Power supply +12V 0V Warning: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above.

  • Page 10: Connecting The Verso Unit To An Ethernet Network

    Technical information iSafePro 360 VERSO – V1.0 p.10/13 CONNECTING THE VERSO UNIT TO AN ETHERNET NETWORK Crossed cable Straight cable Straight cable Each VERSO unit has an IP address. This address is printed on a sticker on the unit housing. To configure a different IP address, you can use the “Automatic detection”...

  • Page 11: Installation Of Visor 360 Dongle

    Technical information iSafePro 360 VERSO – V1.0 p.11/13 INSTALLATION OF VISOR 360 DONGLE To use the VISOR software, you must, in certain cases (see following table), install a dongle on your unit. Use of the dongle Number of readers in the installation Software Dongle Up to 2 readers...

  • Page 12: Functions Of The Terminals

    Technical information iSafePro 360 VERSO – V1.0 p.12/13 FUNCTIONS OF THE TERMINALS Reset switch 1 Reset switch 2 Ethernet network RS485 Extension bus...

  • Page 13: Use Of The Reset Buttons

    Technical information iSafePro 360 VERSO – V1.0 p.13/13 USE OF THE RESET BUTTONS Use this switch to restore the factory network settings (IP address: 192.168.2.150, mask 255.255.255.0). Turn off the power. Hold the switch down while turning the power back on Wait until the relays engage (about 20 seconds) holding the switch down Release the switch...
