Summary of Contents for MMR Technologies elan2 digital
- Page 1 OFFICE STATION USER MANUAL MMR TECHNOLOGIES, INC. VOLUME 2, ISSUE 1...
- Page 2 STARTUP / SHUTDOWN REFERENCE NEVER TURN OFF UNIT WITHOUT FOLLOWING THE BELOW PROCEEDURE! SHUTDOWN: To prevent damage to the system, place the system in “STANDBY” 11. Remove any liquid nitrogen from the Liquefier by pressing “DISPENSE” or “TRANSFER” 7 (depending on the model).
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION…………………………………………………………………………..2 Welcome Intended Use Product Overview SAFETY………………………………………………………………………………………..3 Liquid Nitrogen Safety Handling Containment Specifications LOCATION RECOMMENDATIONS…………………………………………………4 Choosing a Location Handling GETTING STARTED……………………………………………………………………….5 QUICK SETUP……………………………………………………………………………….7 Connecting the Air Compressor ... -
Page 4: Introduction

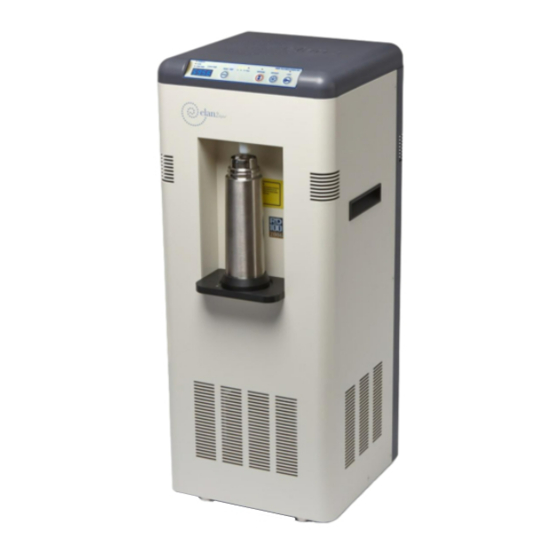

INTRODUCTION WELCOME: Congratulations on your purchase of the world’s smallest office Liquid Nitrogen Generator, the Elan2Digital. Being the latest generation of award winning Liquid Nitrogen generators offered by MMR, the Elan2Digital boasts increased production rates, a smaller foot print, quieter operation, and a digital microprocessor. -
Page 5: Safety
SAFETY LIQUID NITROGEN SAFETY: These Liquid Nitrogen generators have been designed with the highest level of user safety in mind. They are also designed to minimize direct handling of Liquid Nitrogen by the user. However care must be taken to ensure no contact is made with the cryogenic fluid during Liquid Nitrogen removal from a leak or splash. -
Page 6: Handling
LOCATION RECOMMENDATIONS CHOOSING A LOCATION: To ensure optimal operation and ongoing performance of the system, the following guidelines must be met: Room temperature should not exceed 72°F Well ventilated The room should be free of dust and exhaust from other instrumentation ... -
Page 7: Getting Started
GETTING STARTED CONTENTS: Please ensure the following items are present: AIR COMPRESSOR LIQUEFIER COMPRESSOR POWER CORD LIQUEFIER POWER CORD COMPRESSOR DATA CABLE 6FT TEFLON AIR HOSE PAGE 5... - Page 8 GETTING STARTED 1. Sensor Values 11. Standby / Run Switch 2. Ready for Dispense 12. Data Link to Air Compressor 3. Temperature LED 13. Soft Reset System 4. Liquefier Internal Level Indicators 14. Test Air Pressure (push and hold) 5. Main Display 15.
-
Page 9: Quick Setup
QUICK SETUP CONNECTING THE AIR COMPRESSOR TO THE LIQUEFIER: 1. Connect Air Hose from Air Compressor to Liquefier; hand tighten only 2. Connect Air Compressor Data Cable from the Air Compressor to the Liquefier 3. Connect both Power Cables from Air Compressor and Liquefier to suitable wall outlets 4. -
Page 10: Front Display Operation
FRONT DISPLAY OPERATION LIQUEFIER TEMPERATURE: The Liquefier temperature is shown either by selecting the “Cryo Temp” sensor value or by viewing the Temperature Light 3. When the temperature is greater than 77K production is not possible. Flashing Red: Temperature is greater than 200K Solid Red: Temperature is greater than 100K Solid Blue: Temperature is less than 100K LIQUEFIER LEVEL AND DISPENSES: The four Liquefier Internal Level Indicator lights 4 show the... -
Page 11: Liquid Nitrogen Removal
LIQUID NITROGEN REMOVAL DEWAR FILLING: Carry out the following procedure to remove Liquid Nitrogen. STOP! BEFORE PROCEEDING ENSURE PROPER EYE AND HAND PROTECTION IS WORN! DEWAR PLACEMENT: Place the Dewar provided with the system on the Dewar Shelf 15, note the “Dewar Present”... -
Page 12: Maintenance And Care
MAINTENANCE AND CARE FILTER REPLACEMENT: The Elan2Digital is essentially maintenance free and will carry on with minimal user intervention. However, to ensure the ongoing performance, monthly inspection and replacement of the rear filter is necessary, and the frequency of checks will depend on the cleanliness of the environment. -
Page 13: Troubleshooting
TROUBLESHOOTING ERROR STATE: When an Error condition is encountered a code is displayed and the system is shutdown to prevent damage, the cooling fans and air compressor will remain on. While the systems have been designed and calibrated to prevent false alarms this will happen occasionally when certain monitored parameters such as temperature or humidity go out of range sporadically / momentarily. -
Page 14: Support
Office Hours: 7:30am – 3:00pm PST (Monday – Friday) Address: MMR Technologies, Inc. 41 Daggett Dr. San Jose, CA 95134, USA SPARE PARTS: Contact our sales department at MMR for sales assistance. The following parts are available for immediate purchase. -
Page 15: Datasheet And Electrical
DATASHEET & ELECTRICAL Voltage: 115V 60Hz, Single Phase Power Consumption (RUN): ~950W Power Consumption (STANDBY): Noise dB (RUN): ~65dB (1 meter) Noise dB (STANDBY): Quiet Air Source: 90-120PSI (-55C°/ 6ppm Dew Point) Liquid Nitrogen Production: Up to 8Liters per day (depending on environment) Liquid Nitrogen Purity: N2 99%... -
Page 16: Warranty
Agreement. In addition to the Two Year Limited Warranty, MMR Technologies offers Extended Warranty Agreements that enable you to select the best plan to fit your needs, ensuring maximum protection for your investment. -
Page 17: Glossary Of Terms
GLOSSARY TERMS AIR PRESSURE: The pressure coming from the Air Compressor (90-100PSI; 120PSI max). CRYOGEN: A substance used to produce very low temperatures. CRYOGEN STORAGE VESSELS: Referred to as a Dewar or Flask. CRYO TEMP: The temperature inside the Liquefier expressed in Kelvin units (77K when cold). COMP TEMP: The temperature of the Refrigeration Compressor Casing expressed in degrees Celsius. -
Page 18: End User Agreement
“Start Date” means the date from which the Licensed Product was shipped. “MMR” means MMR Technologies, Inc. and its subsidiaries, or, as the context so applied, any of them. “Documentation” means any documentation provided to you by us (whether electronic or printed) which accompanies the Licensed Product. - Page 19 Any notices required to be given in writing to MMR or any questions concerning this End User License Agreement should be address to The Company Secretary, MMR Technologies, Inc., 41 Daggett Dr., San Jose, CA 95134, USA.
- Page 20 MMR TECHNOLOGIES, INC. 41 DAGGETT DR. SAN JOSE, CA 95134, USA +1 (650) 962 9620 WWW.ELAN2.COM WWW.MMR-TECH.COM...
