RetractAway 40 & RetractAway 50
Your Austral RetractAway clothesline is designed to last a long time. It is important to follow these
instructions so you will enjoy the benefits of a properly installed clothesline. Incorrect installation or
operation could damage your line and/or void your guarantee. If at any time your clothesline fails to
function correctly or if spare parts are required then call your state distributor listed on the Warranty page.
There is considerable stored energy in the RetractAway at all times.
UNDER NO CIRCUMSTANCES REMOVE ANY SCREWS AT EITHER END OF THE UNIT,
NOR ALLOW THE DRAW ARM TO RETURN UNASSISTED TO THE UNIT.

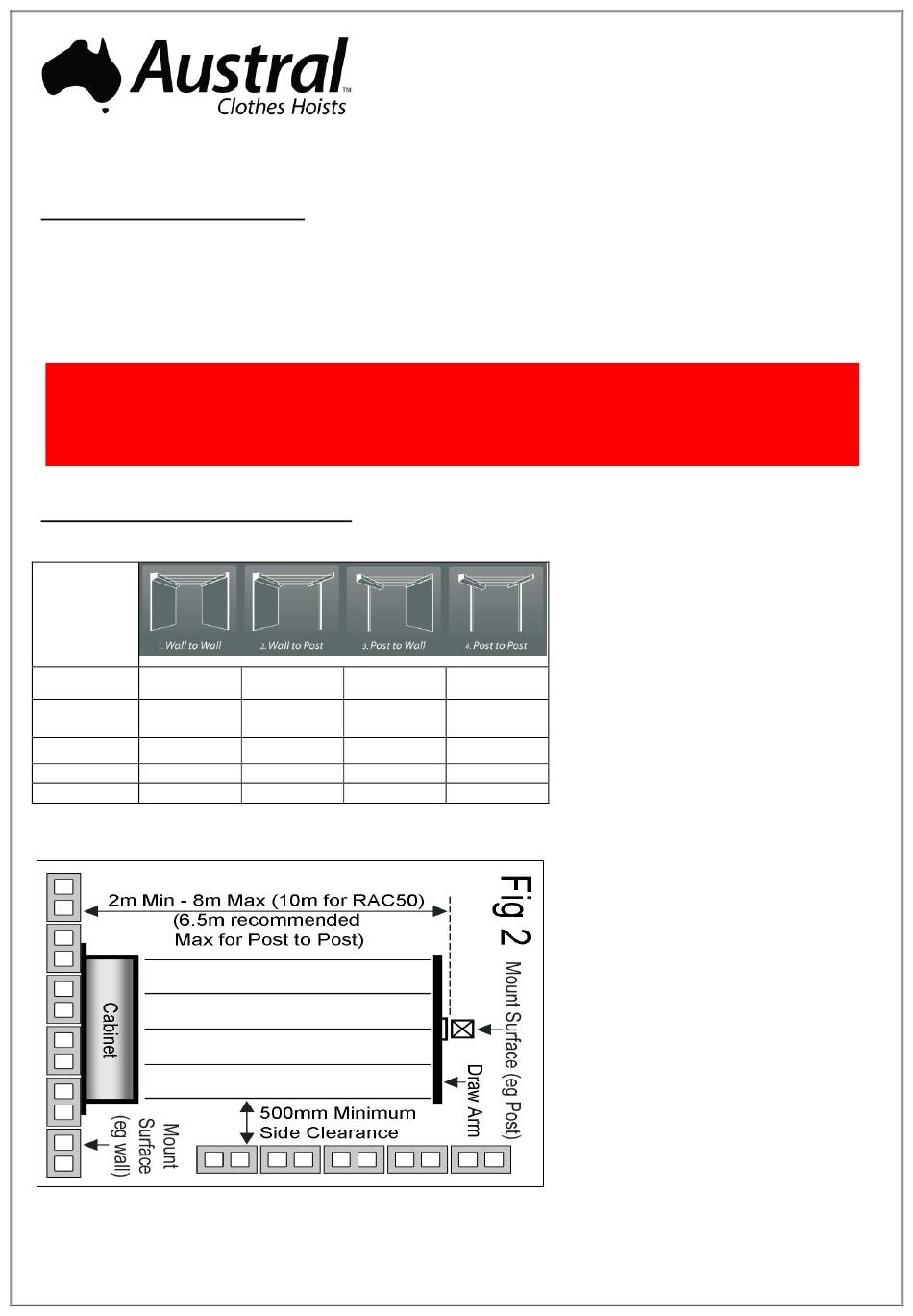

SITE SELECTION & MOUNTING OPTION
Fig 1
Cabinet
1
Wall Fixings
t
4
t
Posts
-
Mount Bar
-
Socket *
- *
INCORPORATED IN VICTORIA A.B.N.: 68 006 790 727
222-224 HAMMOND ROAD, DANDENONG 3175, AUSTRALIA
IMPORTANT
1
1
t
t
2
2
1
1
-
1
1 *
- *
AUSTRAL CLOTHES HOISTS PTY. LTD.
Tel: (03) 9706 7577, Fax: (03) 9706 7522
International Tel: +61 3 9706 7577
International Fax: +61 3 9706 7522
W: www.australclotheshoists.com.au
E:
vic@australclotheshoists.com.au
Select a suitable site and mounting option
for your RetractAway.
The maximum span between the two
mounting surfaces should not exceed 8
metres for a RetractAway 40 or 10m for a
RetractAway 50.
Minimum extension for RetractAway 40 or
1
50 is 2m.
-
Allow a minimum of 500mm clearance
(ideally 1 meter or more) on the sides for
2
ease of use and for clothes to blow about.
1
See Figures 1 and 2.
1 *
*A Socket will be required if the Post is to be
removable.
t
Wall fixings are not supplied as
mounting surfaces vary.
For brick or block fixing use 8mm masonry
anchors.
For timber fixing use 8mm coach screws.
Please seek advice if fixing to alternative
surfaces.
Support battens may be required to mount
on some surfaces, timber fences,
weatherboard, fibro, blueboard etc.
1/4
