Blaze Quick Installation Guide
Prepare Your Telephone Numbering Plan
Blaze Communication System supports flexible numbering plan with maximum "5" digits of extension
number. You need to prepare the followings before you install Blaze Communication System.
CO Line Extension Number: Prepare an extension number for each CO Line port so that the associated
extension number can reach each trunk line that is connected to it.
SLT Extension Number: Prepare an extension number for each SLT port so that the associated
extension number can reach each analog phone that is connected to it.
IP Phone: Prepare an extension number for each IP phone.
Group Number: If you plan to group specific trunk lines or extensions as a group, prepare a Group
Number for each CO Line Group and Extension Group.
AA Menu: Plan your AA procedure and prepare an access code for each AA Menu.
Routes: Plan your Routes, ARS and Class of Service to be uses when making calls.
Installing and Configuring Blaze Server

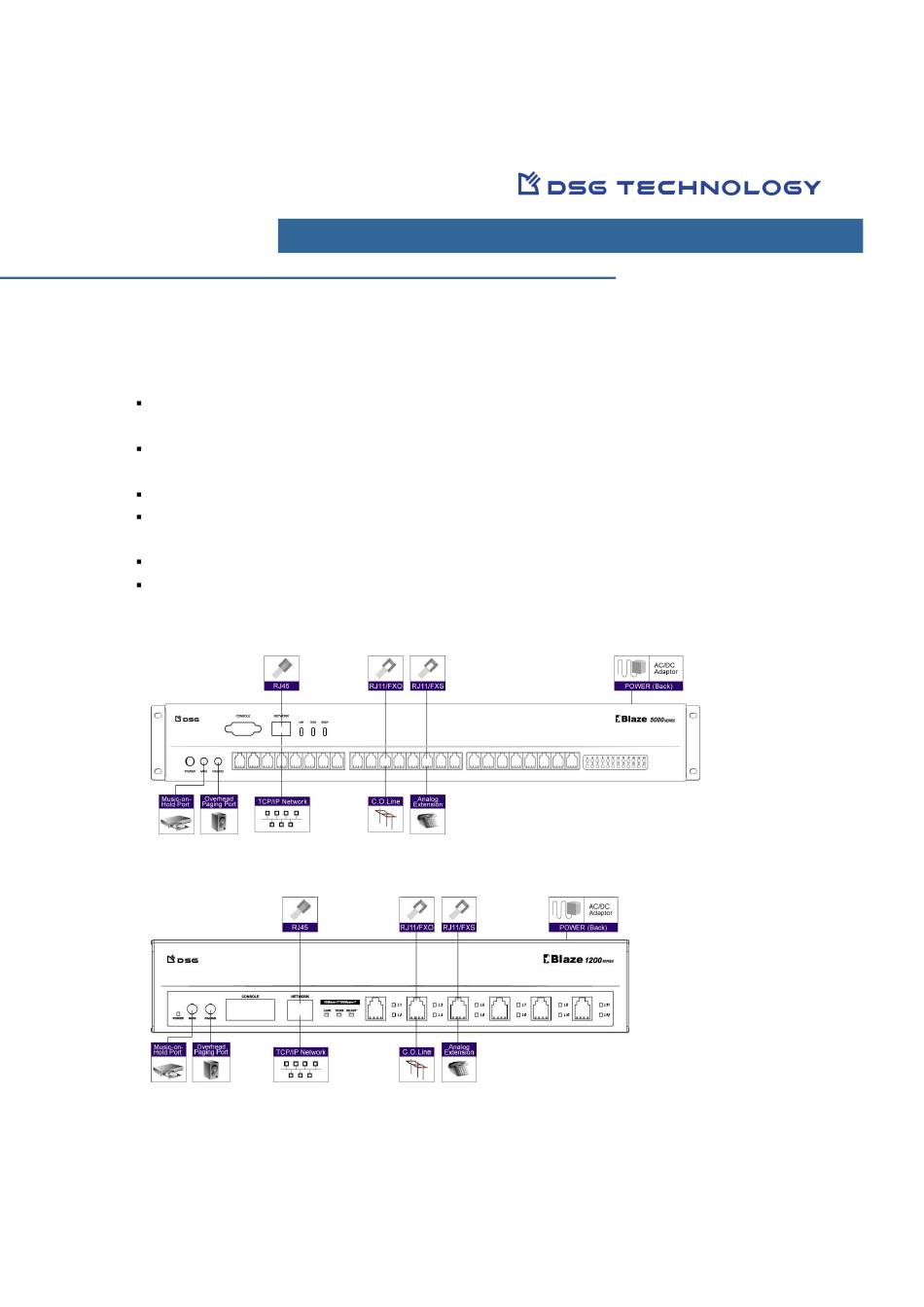

Figure: Blaze 5000 Series Connection Diagram
Figure: Blaze 1200 Series Connection Diagram
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blaze Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DSG Technology Blaze Series

  • Page 1 Blaze Quick Installation Guide Prepare Your Telephone Numbering Plan Blaze Communication System supports flexible numbering plan with maximum “5” digits of extension number. You need to prepare the followings before you install Blaze Communication System. CO Line Extension Number: Prepare an extension number for each CO Line port so that the associated extension number can reach each trunk line that is connected to it.
  • Page 2 3. Connecting to CO Lines or Extension Lines With Blaze Series, the Server is integrated with Voice Gateway module. Voice Gateway supports CO line or analog extension modules. Please plug a CO line to a CO Line port or plug an analog extension to a SLT port.
  • Page 3 When you login the Blaze Administration next time, please enter your user name and password to login. After you login the Blaze Administration successfully, the screen will display the main menu of Blaze Administration website as follows: 6. Basic IP Settings (1) Go to Main Menu>System Configuration>General Parameters.
  • Page 4 (4) If Blaze Server is deployed behind NAT, select “Behind NAT” checkbox and assign a real IP address of the NAT device in “NAT IP Address” box. 7. Add License Key Go to Main Menu> Operation Management> General Information. Select Add and add a License Key. 8.

  • Page 5: Gateway Configuration

    Servers located behind NAT, you need to open UDP6055 on the NAT router both at the remote site and on your site. ( With our NAT Proxy Server, you don’t need to modify any setting on the NAT device. ) Gateway Configuration The Blaze System supports analog and digital gateway.
  • Page 6 8. Min. Loop Current Drop Time: Normally, when a telephone call terminates, the telephone company sends a momentary drop in loop current to signal the disconnect event. Please enter the minimum Loop Current Drop time in this field to avoid the IP-PBX system detecting the disconnect signal incorrectly.
  • Page 7 11. Pickup After Rings: Input the number of the ring count allowing the system to answer calls. 12. Flash Timing: The Flash function was set on the MENU button of the IP phones. Set the Flash Timing allowing IP phones to use functions provided by Centrex. 13.

  • Page 8: Group Management

    Receive Gain: this field edits the RX Gain of the CO Line ports, or the volume of incoming calls. DTMF Volume: this field edits the intensity of the DTMF tones in the CO Line ports. Dial Tone Volume: this filed edits the dialing volume of the SLT ports, or the dial tone volume of analog phones.

  • Page 9: Class Of Service

    “Members”. Class of Service Class of Service (CoS) is call permission for extension users, it allow the extensions making the intercom calls, accessing CO lines or setting the ARS( Auto Routing Selection ) . Each extension needs to assign a Class of Service.
  • Page 10 assign more numbers to the list. AA Management Planning an AA Menu 1. Go to Main Menu> VM Configuration>AA Management. 2. Select an entry from the list and click on the Modify button. 3. In “Description” shown as blank, describe the purpose for this AA Menu, for example, “Business Hours”.

  • Page 11: Extension Management

    6. Assign each DTMF tone (0-9, *, #) with one specific AA Menu Action from the list. The system will perform according to AA Menu Action when callers press one of pre-defined DTMF keys. Recording AA Menu Greetings 1. Go to Main Menu> VM Configuration>AA Management. 2.
  • Page 12 1. Go to Main Menu>Group Management>Class of Service. Click Add to increase a Class of Service. 2. Go to Main Menu> Operation Management>Auto Discovery. Click the Turn On Auto Discovery button to enable the Auto Discovery function. 3. You will find the Class of Service you have created from the list of “Set Default CoS for Auto Discovery.”...
  • Page 13 key. Settings on IP Phones 1. Plug in the power cord of the IP phone and please DO NOT connect the IP phone to LAN. 2. After the system check, press and hold the middle button for 3 seconds to enter the setup menu. Input your password, if any.
  • Page 14 button to save. 7. Keep pressing the downward button until the LCD displays “EXIT SETUP”. Press the button to exit. NOTE: The IP Phone will automatically search and download the latest version of software from the Blaze Server and then reboot with the latest version. In DHCP Environment If your LAN is under DHCP environment, you can skip the settings of IP address, Gateway IP and Subnet Mask.
  • Page 15 Connect Your IP Phone to LAN 1. Connect your IP phone to the Ethernet Network. Please connect one end of the network cable to the “LAN” port on an IP phone and connect the other end to the RF45 port of 10/100 BaseT switching hub or Hub on LAN.
  • Page 16 6. Change Password: With Auto Discovery, the extension password is blank, the administrator can modify the password for logging in the Blaze Management Website. 7. Off-Hook Access to: Blaze provides extensions different Off-Hook selections that enable users directly off-hook access to extension, CO line, operator, or hotline. Please select a direct access item for your extension from the “Off-Hook Access to”...

  • Page 17: Recording System

    5. Fill in the information about extension users, including First Name, Last Name, Title, Location and Department. 6. Change Password: The default of the SLT port password is blank. The administrator can modify the password for logging in the Blaze Management Website. 7.
  • Page 18 2. Enter the IP address of the Blaze Server in the field “IP Address” for built-in recording system. For Professional Recording System, please enter its associated IP address. 3. The default value of “Port Num” is “10”, which means the system can record up to 10 extensions at the same time.
  • Page 19 NOTE: The recording function does not apply to analog and off-premises extensions. Playing the Recording The extension users can play the recording from their IP phones directly. Press the specific programmable button or Rec/Play button or function code #42 to active the function.
  • Page 20 10IPBXQ.BZ2.32b.EN3...
