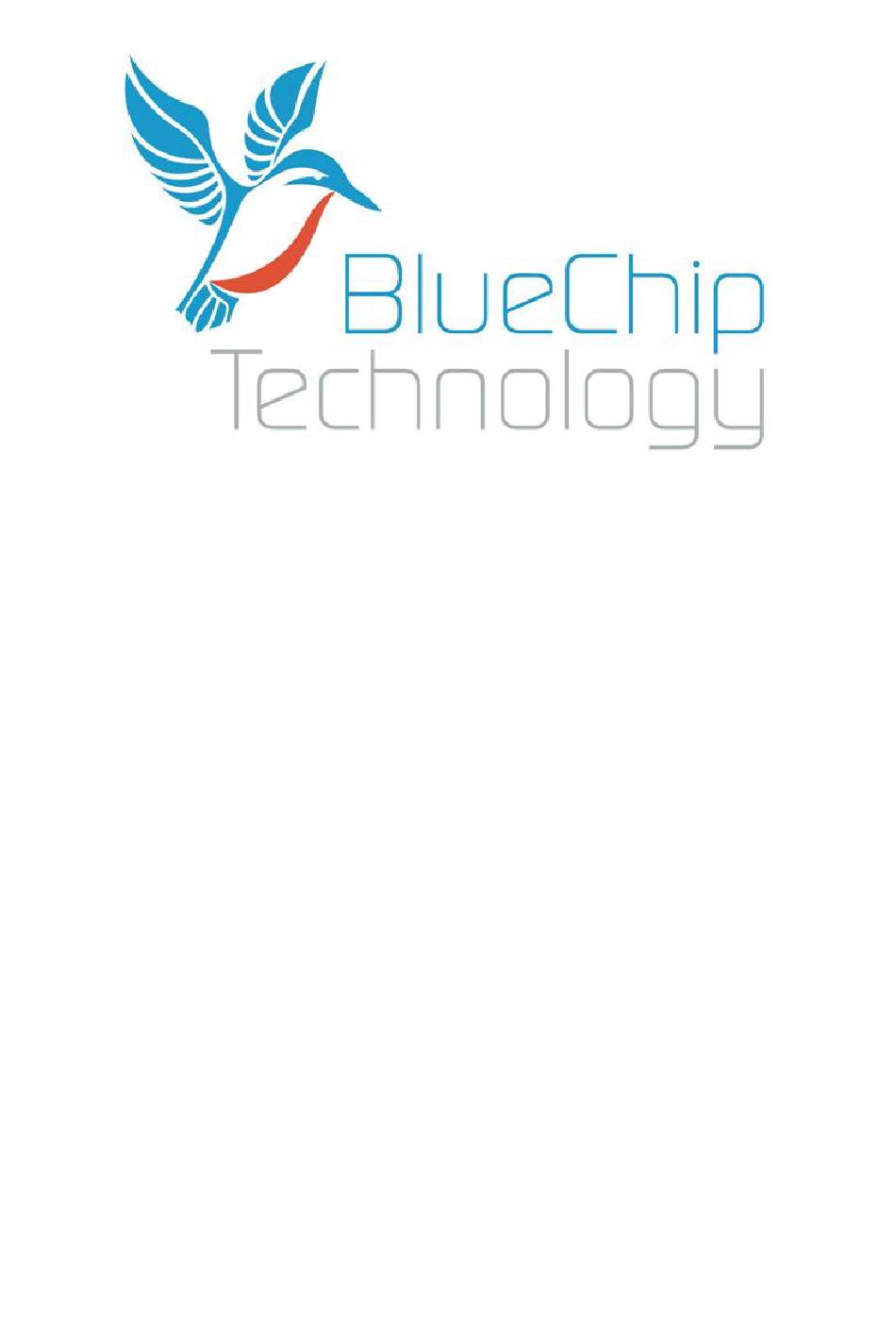

- Page 1 Ultima X 2U Passive Industrial PC User Manual Document Reference Ult1ima2U Passive Manual Document Issue Level Blue Chip Technology Ltd. Chowley Oak Tattenhall Chester CH3 9EX U.K. Telephone: +44 (0)1829 772000 Facsimile: +44 (0)1829 772001 www.bluechiptechnology.co.uk...
-
Page 2: Table Of Contents
ULTIMA I NDUSTRIAL ONTENTS CONTENTS CONTENTS .........................2 INTRODUCTION ......................4 COMPANY PROFILE ......................... 4 COPYRIGHT ............................4 LIMITATIONS OF LIABILITY ......................4 REGULATORY STATEMENTS ......................5 RELATED PUBLICATIONS........................ 5 TRADEMARKS ........................... 5 PRECAUTIONS ..........................6 Electro-Static Discharges ..........................6 On-Board Battery............................6 BIOS & CMOS RAM .............................6 Electromagnetic Compatibility ........................7 GETTING STARTED ....................8 MANUAL ORGANISATION ........................ - Page 3 ULTIMA I NDUSTRIAL ONTENTS ADDING/REMOVING I/O BOARDS ....................25 CHANGING A HDD .......................... 27 REPLACING THE PSU ........................29 AC and DC PSU’s ............................29 Dual Redundant PSU ..........................30 TROUBLESHOOTING GUIDE .................. 31 AMENDMENT HISTORY ................... 32 SLIDE RAIL KIT FOR ULTIMA & DELTA PRODUCTS ..........33 INTRODUCTION ..........................
-
Page 4: Introduction
ULTIMA I NDUSTRIAL NTRODUCTION INTRODUCTION OMPANY ROFILE Blue Chip Technology is a leading specialist PC product manufacturer in Europe, providing innovation with quality design and manufacturing from a single source. Based in the North West of England, our purpose built complex contains both advanced research and development facilities, and manufacturing facilities. -
Page 5: Regulatory Statements
ULTIMA I NDUSTRIAL NTRODUCTION EGULATORY TATEMENTS This product meets the essential protection requirements of the European EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC), and is eligible to bear the CE mark. Warning This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. -
Page 6: Precautions
ULTIMA I NDUSTRIAL NTRODUCTION RECAUTIONS Certain precautions are necessary when designing with, handling, and using circuit boards. It is imperative that precautions are taken at all stages to avoid electro-static discharges, which will damage boards. Those boards fitted with an on-board lithium battery must be handled carefully to avoid maltreatment of the battery that could create a hazard. -
Page 7: Electromagnetic Compatibility
ULTIMA I NDUSTRIAL NTRODUCTION ELECTROMAGNETIC COMPATIBILITY This product has been assessed operating in representative, standard configurations. As with any PC product, however, final installation & configuration can vary significantly, and so the following guidelines are offered to help ensure that compatibility is maintained. All components added to a system should either carry appropriate equivalent levels of compliance, or be tested for compliance as part of the final system, and should be installed in accordance with supplier recommendations. -
Page 8: Getting Started
ULTIMA I NDUSTRIAL ETTING STARTED GETTING STARTED ANUAL RGANISATION This manual describes in detail the Blue Chip Technology ULTIMA 2U Passive Industrial PC. We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of the ULTIMA Industrial PC. -
Page 9: Overview
ULTIMA I NDUSTRIAL ETTING STARTED VERVIEW NTRODUCTION The ULTIMA 2U PASSIVE is a ruggedised PC compatible microcomputer designed for reliable operation in adverse environments. It is available as a 19" rack mountable unit, and as a desktop unit. Both units use a common chassis and layout. -
Page 10: Ultima 2U Passive Industrial Pc
ULTIMA I NDUSTRIAL ETTING STARTED ULTIMA 2 PASSIVE INDUSTRIAL PC Above 2004 Model Below 2012 Model Blue Chip Technology Limited Page 10... -
Page 11: Chassis Features
ULTIMA I NDUSTRIAL ETTING STARTED CHASSIS F EATURES HASSIS The basic chassis is common to both types of assembly (rack mounting and desktop), and comprises several sub- assemblies: Chassis body including the cooling fan assembly Chassis front panel Chassis cover Internal drive cage assembly Internal HDD cage assembly Internal I/O Expansion assembly... - Page 12 ULTIMA I NDUSTRIAL ETTING STARTED Shock: (IEC 68-2-27) Operating 5G 11 ms, ½ sine wave Non-operating 15G 11ms, ½ sine wave Vibration: (IEC 68-2-6) Operating 5 to 500 Hz, 0.5G Non-operating 5 to 500 Hz, 2.0G Safety Designed to meet EN 60950 Blue Chip Technology Limited Page 12...
-
Page 13: Chassis Layout
ULTIMA I NDUSTRIAL ETTING STARTED HASSIS AYOUT RACK MOUNT The rack mounting chassis is made of polished stainless steel and is shown in Figure 1. It comprises the same chassis as the bench mount, but has mounting ears. A polished stainless steel lid held in place by five screws completes the chassis. -
Page 14: Desktop
ULTIMA I NDUSTRIAL ETTING STARTED DESKTOP The desktop unit is shown in Figure 2. It comprises the same chassis as the rack unit, but without the mounting ears. Figure 2 Desktop Dimensions Blue Chip Technology Limited Page 14... -
Page 15: Front Panel
ULTIMA I NDUSTRIAL ETTING STARTED FRONT PANEL Operator controls and the air filter are located on the front panel behind sealed doors. The operator controls are behind a key-lockable door, on the right hand side. The filter is held in place behind the left-hand door. A ¾ turn fastener allows access to the filter. -
Page 16: Installation
ULTIMA I INSTALLATION NDUSTRIAL INSTALLATION LECTRICAL This item must be connected to an earthed socket. A stud is fitted to the rear panel of the chassis. It is recommended that this is also connected to a good earth within the racking system. Cutting washers must be used in order to maintain a good connection. - Page 17 ULTIMA I INSTALLATION NDUSTRIAL Figure 5 2U Ladder Holes (left hand side) SLIDE RAIL AND BRACKET ASSEMBLY Referring to Figure 6.1, withdraw the inner slide section and disconnect by depressing the spring catch. Figure 6.2 shows outer and inner slide rail sections disconnected, top and bottom respectively. Figure 6.1 Figure 6.2 Blue Chip Technology Limited...
- Page 18 ULTIMA I INSTALLATION NDUSTRIAL Figure 6.3, shows the relationship between the brackets and slide rail outer section. The small bracket fits to the front of the cabinet, the larger to the rear. Note the rail orientation, with middle slide visible at the front. Figure 6.3 Referring to Figure 6.4 and 6.5, attach the front bracket to the slide rail outer section.
- Page 19 ULTIMA I INSTALLATION NDUSTRIAL SLIDE RAIL INSTALLATION Referring to Figure 6.8, insert fillister head screws through cage nut B at front and rear. Figure 6.8 Figure 6.9 Referring to Figure 6.9, carefully position slide rail and bracket assembly on to fillister screws B at front and rear.
- Page 20 ULTIMA I INSTALLATION NDUSTRIAL Referring to 6.12, withdraw the middle slide until it locks into the extended position. Figure 6.12 UTLIMA INSTALLATION The following pictures show a 4U chassis. The assembly for the 2U chassis is exactly the same. Referring to Figure 7.1 and 7.2, attach the inner slide rails to ULTIMA sides using 4 off M4 x 6 screws.
- Page 21 ULTIMA I INSTALLATION NDUSTRIAL Referring to Figure 7.3 and 7.4, slide unit on to extended middle sections until spring catches lock. Press the catches again and slide unit home. Tighten rear fillister screws. Adjust unit until front panel is central and does not foul equipment panels above and below.
-
Page 22: Maintenance
ULTIMA I NDUSTRIAL AINTENANCE MAINTENANCE RECAUTIONS It is recommended that the unit is switched off and any mains cables disconnected before removing any cover. Some systems may incorporate battery-backed power supplies, in which case a failure to switch off the supply may result in internal electronics still receiving power. Note that some components may become hot during operation, and so it is generally good practice to allow the unit to cool before starting any significant internal maintenance work WARNING... -
Page 23: Removing The Top Cover
ULTIMA I NDUSTRIAL AINTENANCE EMOVING THE OVER It is not necessary to remove all the cover screws to remove the Top Cover. First loosen the three front top cover screws, and then remove the three rear cover screws highlighted in Figure 8.2. - Page 24 ULTIMA I NDUSTRIAL AINTENANCE Figure 9.3 Figure 9.4 Figure 9.3 Figure 9.5 With the drive cage fully removed as indicated in Figure 9.5, there is access to all bays. To refit the drive cage, is just a matter of reversing the removal instructions. The two screws indicated A in Figure 9.4, will slot into the spaces indicated A in Figure 9.3.
-
Page 25: Adding/Removing I/O Boards
ULTIMA I NDUSTRIAL AINTENANCE I/O B DDING EMOVING OARDS I/O boards are located on a central assembly that consists of the Passive Backplane and the CPU card. In order to add or remove any I/O board the assembly must first be removed from the chassis. Note: Due to the configuration inside the chassis, only 1 full length PCI card is supported, and this must be placed in the top connector, above the HDD. - Page 26 ULTIMA I NDUSTRIAL AINTENANCE In figure 10.5, C indicates where the IDE cables need to be removed. If IDE drives are fitted, then there may be two cables, one for the CD-ROM and one for the HDD. D indicates the connector for the FDD cable if fitted. In figure 10.6, E shows the USB cable header that must be removed and F shows the location of the S-ATA cable headers if fitted.
-
Page 27: Changing A Hdd
ULTIMA I NDUSTRIAL AINTENANCE HANGING A HDD The hard drive assembly is separate from the Drive Cage, and for access you have to remove the cover. Depending on which drive you want to change, it may be necessary to first remove the CPU assembly to allow access to the drives. - Page 28 ULTIMA I NDUSTRIAL AINTENANCE The 2 Drive is removed as follows, again, due to the proximity of the grounding screw to the CPU assembly, it may be necessary to remove the CPU Assembly first. Firstly, remove the EMC grounding connection A shown in Figure 11.4. Next disconnect the Power and Data cables from the drive, and remove the screws B as indicated in Figure 11.5.
-
Page 29: Replacing The Psu
ULTIMA I NDUSTRIAL AINTENANCE EPLACING THE The Ultima Passive unit can support different types of Power Supplies. A normal AC PSU and a DC PSU have the same footprint and use the same mounting method. A Dual Redundant Power supply can also be fitted however uses different mounting brackets. -
Page 30: Dual Redundant Psu
ULTIMA I NDUSTRIAL AINTENANCE DUAL REDUNDANT PSU Instead of a single bracket enclosing the PSU, the Dual Redundant PSU has two brackets at each side of the PSU as shown in Figures 12.1 and 12.2 The screws for the left hand bracket as shown in figure 12.1, are actually attached from the inside if the PSU, so the Redundant PSU’s must first be removed from the PSU casing. -
Page 31: Troubleshooting Guide
ULTIMA I NDUSTRIAL ROUBLE HOOTING UIDE TROUBLESHOOTING GUIDE This is not intended as an extensive faultfinding procedure, rather it is intended to indicate the more likely causes of failure with this product. Ensure that the power is switched off before making any hardware changes. Bear in mind that it is possible to set combinations of parameters within the BIOS that will prevent proper operation of the board. -
Page 32: Amendment History
ULTIMA I NDUSTRIAL MENDMENT ISTORY AMENDMENT HISTORY Issue Level Issue Date Author Amendment Details 15/09/2004 First Draft 22/09/2004 first release 16/11/04 updated PSU reference 30/06/09 Updated EM references 22-07-09 tmck Corrected Shock/Vibration references. Improved warning comments 1-2-11 tmck Added appendix for slide rail kit 30-11-11 tmck Release with new door assembly... -
Page 33: Slide Rail Kit For Ultima & Delta Products
ULTIMA I NDUSTRIAL PPENDIX LIDE SLIDE RAIL KIT FOR ULTIMA & DELTA PRODUCTS NTRODUCTION The slide rail kit supplied by Blue Chip Technology can be used on either the Ultima product range or the Delta product range, however as supplied it will fit straight onto the Delta chassis. For use with Ultima, it requires to be converted before assembly into the rack system The kit comprises of the following Blue Chip Part numbers 1 x 1092-1006... -
Page 34: Step 1: Remove Long Rear 3 Hole Bracket And Replace With Long 4 Hole Bracket
ULTIMA I NDUSTRIAL PPENDIX LIDE STEP 1: REMOVE LONG REAR 3 HOLE BRACKET AND REPLACE WITH LONG 4 HOLE BRACKET The bolts to be removed are highlighted in the above picture. First turn the bracket over as shown below and extend the slide rail to its full length The screws are now visible and can be removed –... -
Page 35: Step 2: Remove Smaller Front 3 Hole Bracket And Replace With Smaller 4 Hole Bracket
ULTIMA I NDUSTRIAL PPENDIX LIDE STEP 2: REMOVE SMALLER FRONT 3 HOLE BRACKET AND REPLACE WITH SMALLER 4 HOLE BRACKET Again, the first step is to turn the slide assembly over and extend to its full length. This time the screws are harder to see but with the bracket fully extended they can be accessed. Remove them as before and replace the bracket with the small 4 hole version.
