Summary of Contents for Bogen CDC-3

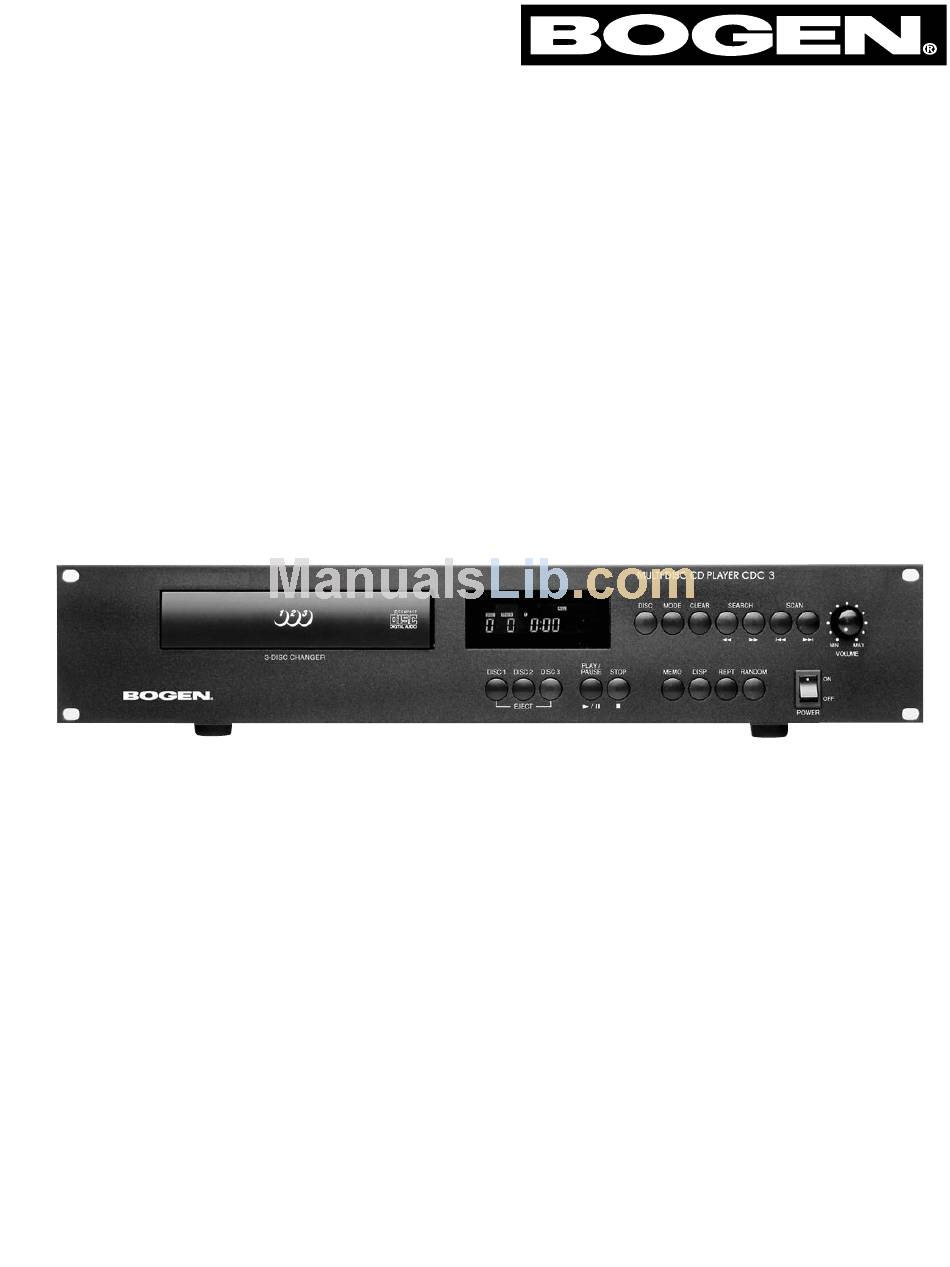

- Page 1 CD Player Model CDC-3 Installation and Use Manual © 2001 Bogen Communications, Inc. All rights reserved. 54-2066-01R1 0109 Printed in Korea. Specifications subject to change without notice.
- Page 2 Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. Important Safety Information WARNING: To Reduce The Risk of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
-
Page 3: Table Of Contents
Contents COMPACT DISC & PLAYER CARE INSTRUCTIONS...2 INTRODUCTION...3 Package Contents ...3 PANEL DESCRIPTIONS...4-5 CDC-3 Front Panel ...4 CDC-3 Rear Panel ...5 LIQUID CRYSTAL DISPLAY DESCRIPTIONS ...6 INSTALLATION ...7 Rack Mounting...7 Table Mounting ...7 OPERATION ...8-10 Loading and Removing Discs ...8 Play / Pause...8... -
Page 4: Compact Disc & Player Care Instructions
• Do not affix gummed labels or tape to the surface of the disc or the label on the disc. • Do not use compact discs with special shapes (such as heart-shaped or octagonal discs) as they may damage the player. Note:The CDC-3 will not play rewritable (CD-RW) discs, but will play recordable (CD-R) discs. -
Page 5: Introduction
Depending on which mode is chosen, the CDC-3 can randomly shuffle selections for a single disc or for all discs loaded into the CD player.The CDC-3 can also scan each track from a single disc, or for all discs loaded into the CD player, and play an excerpt from each track for 10 seconds. -
Page 6: Panel Descriptions
Scan Buttons - Change tracks in single increments in numerical order in either direction (forward or reverse) before or during play for a particular disc. Volume Control - Adjusts the audio output level of the CD player, but not the AUX input. Power Switch - Applies power to the unit. -
Page 7: Panel Descriptions
CDC-3 Rear Panel Line Voltage Input Connector with Fuse - Connects AC Cord from 120V AC, 60Hz source. Fuse is located in cord receptacle. AUX Input - Provides stereo input for auxiliary audio source. Output Connectors - Provide both stereo and mono outputs. -
Page 8: Liquid Crystal Display Descriptions
Liquid Crystal Display Descriptions Note: Not all indicators displayed below will be lit at all times. A. Memory Operating Indicator - Indicates memory function is activated. B. Random Indicator - Indicates random function is activated. C. Repeat Indicator - Indicates repeat function is activated. D. -
Page 9: Table Mounting
Rack Mounting The CDC-3 front panel is designed to allow mounting in 19" racks. If any feet have been attached to the bottom of the CD player, remove them. Install the CD player into the rack and secure it to the rack with appropriate hardware (not included). -
Page 10: Operation
CDC-3, beginning with whichever disc is currently selected and continuing through all discs installed. If no disc is installed in a particular tray, the CDC-3 will skip that particular tray and con- tinue onto the next one. Once all installed discs have played, the CDC-3 will stop playing unless the REPEAT function is activated. -
Page 11: Clear Function
Programming. Search Function The Search buttons are unlike the other buttons on the CDC-3 in that they must be held down rather than pressed and released to operate properly. When pressed down, the search buttons will fast forward or rewind the track that is currently being played. Once a button is released, the track will continue play from that point. -
Page 12: Operation
1 DISC or ALL. Note: Selecting 1 DISC INTRO or ALL INTRO will result in the CDC-3 reverting to the 1 DISC or ALL mode since the Intro function is inoperable during Random Play. Intro modes are operable only for the Introduction function. -
Page 13: Connections
AUX source. To match the volume level of the AUX source with the CDC-3, set the AUX source’s volume con- trol (if it has one) and the amplifier volume to the desired level.Then, start the CDC-3 and adjust its volume control until it is approximately at the same level as the AUX source and amplifier. -
Page 14: Specifications
Specifications Frequency Response ...20Hz - 20kHz THD (20Hz - 1kHz) ...<.05% (20Hz - 20kHz) ...<.7% Signal-to-Noise Ratio (1kHz) ...>70dB Audio Output Level ...1.5V (Stereo) / 3V (Mono) Memory ...36 tracks Channel Separation ...1kHz, 65dB; 10kHz, 55dB Power Source ...120V AC, 60Hz Power Consumption ...22 watts Product Weight ...14 lbs. -
Page 15: Warranty
Bogen believes may affect the reliability of the product, or where the serial num- ber or date code has been removed or defaced. - Page 16 50 Spring Street, Ramsey, NJ 07446, U.S.A. Tel. 201-934-8500; Fax: 201-934-9832; www.bogen.com...
