COD. 1247036-GB / 1.1
GB

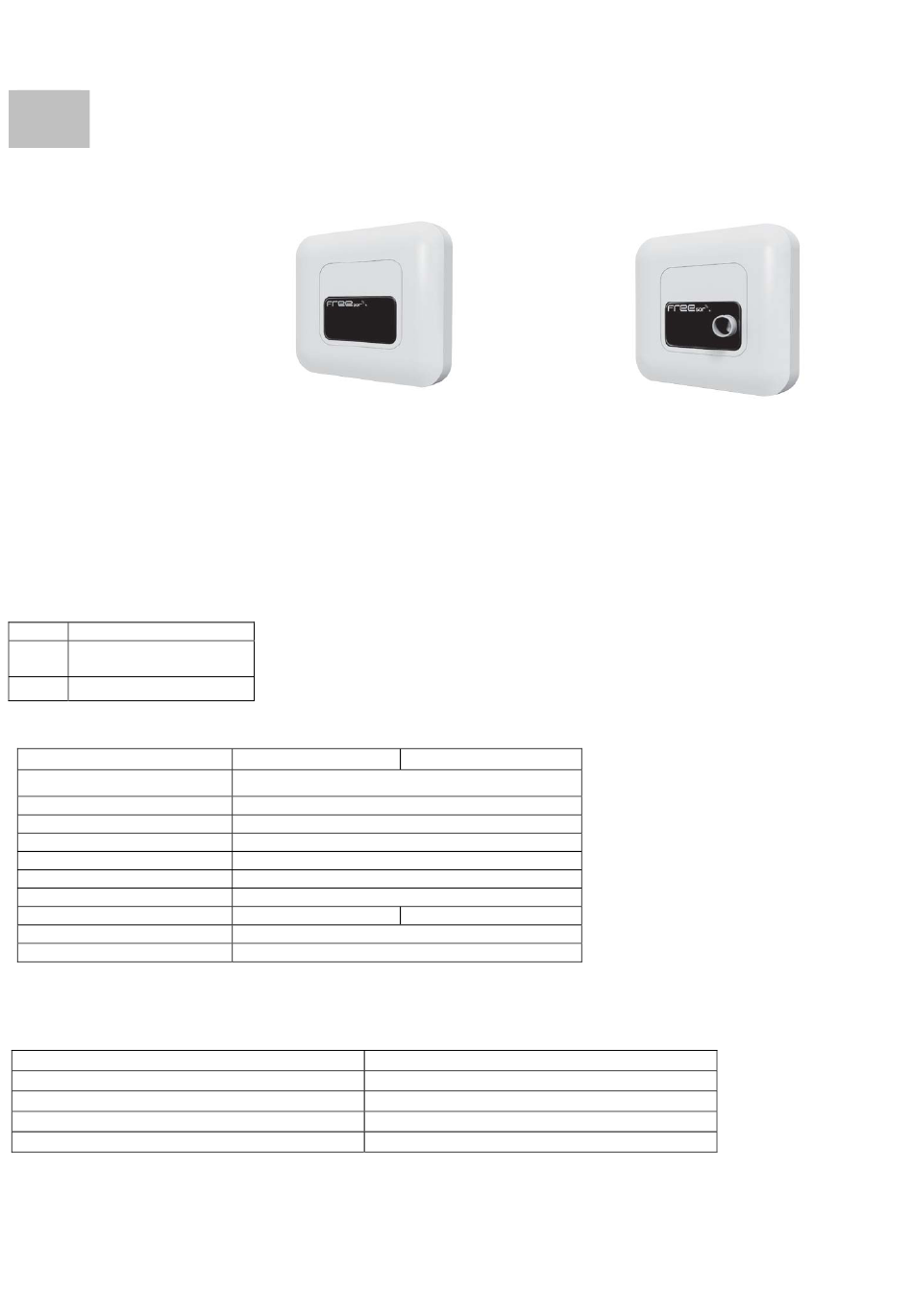

FREE 50 R: Hands free activator with presence detection signal for external presence detectors.
FREE 50 RS: Hands free activator with presence detection signal and presence detector incorporated (sonar).
In the FREE 50 RS version a sonar is incorporated, it does the function of presence detection. This device operates with
ultrasound (not audible) at 42kHz. It can detect little objects at a few meters and big objects at more distance. For a good
detection of the obstacle, this has to be at an angle of 90º respect the sonar.
The presence detection signal, free contact input, allows connecting external presence detectors, like photocells or magnetic
detectors, and when the device detects a presence it activates the signal and enables the tag inside the activation field.
SONAR DETECTION DISTANCE TABLE
People
3,5 to 4,5 meters
Frontal: 5,0 to 5,5, meters
Car
Lateral: 6,0 to 6,5 meters
Wall
7,0 meters
1. TECHNICAL CHARACTERISTICS
Operating frequency
Electricity
Consumption
Radiated power
Wiring
Op. temperature
Watertightness
Size
Enabling area (hands-free mode)
Maximum detection speed
2. CONNECTION
Connect the power supply wire to the 230Vac and connect the 4 signal wire as follows:
Signal
Presence
- (GND)
Sync IN
Sync OUT
In the FREE 50 R version, if the presence detection signal (red) is not used, please join it to the black wire (GND), and the
device will always detect presence
FREE 50 R / FREE 50 RS
FREE 50 R
FREE 50 R
230Vac +/- 10%
4 wires (section 0,5mm2)
-20ºC - +55ºC
394,4 x 310,5 x 42 mm 394,4 x 310,5 x 78,7 mm
FREE 50 RS
125kHz
<50mA
<25mW
IP66
5m
50km/h
Cable colour
Red
Black
Green
White
1
FREE 50 RS
Advertisement
Table of Contents
Summary of Contents for JCM FREE 50 R
- Page 1 - (GND) Black Sync IN Green Sync OUT White In the FREE 50 R version, if the presence detection signal (red) is not used, please join it to the black wire (GND), and the device will always detect presence 1 ...
- Page 2 COD. 1247036-GB / 1.1 FREE 50 R / FREE 50 RS In case of using more than one activator in series (maximum 4), connect the synchronism signal OUT to the synchronism signal IN of the following activator, to avoid interference between them. (See connection figure).
- Page 3 COD. 1247036-GB / 1.1 FREE 50 R / FREE 50 RS 3.1. WALL INSTALLATION (see figure 3.1) 3.2. INSTALLATION WITH SUPPORT (see figure 3.2) 3 ...
- Page 4 COD. 1247036-GB / 1.1 FREE 50 R / FREE 50 RS 3.3. SONAR INSTALLATION RECOMMENDATIONS (see figure 3.3) 4. SONAR PRESENCE SELECTOR (only version FREE 50 RS) Allows selecting the sonar detection distance. Position Detection distance No detection...
- Page 5 COD. 1247036-GB / 1.1 FREE 50 R / FREE 50 RS 5. CONFIGURATION OF CHANNELS AND GROUPS Use the button (4) to configure the activator’s operating mode. Channel configuration: Keep the configuration button pressed down until the number of long red signals is equal to the channel to be configured.
- Page 6 (See figure 6. OPERATING) JCM TECHNOLOGIES, S.A. declares that the product FREE 50 R, FREE 50 RS complies with the requirements of the 1999/5/EEC Radio Equipment and Telecommunication Terminal Equipment Directive, provided it is used as established. CE DECLARATION OF CONFORMITY See website: www.jcm-tech.com...
