Summary of Contents for Neptune Systems EnergyBar 832
- Page 1 EnergyBar 832 User Guide...
-
Page 2: Important Safety Instructions

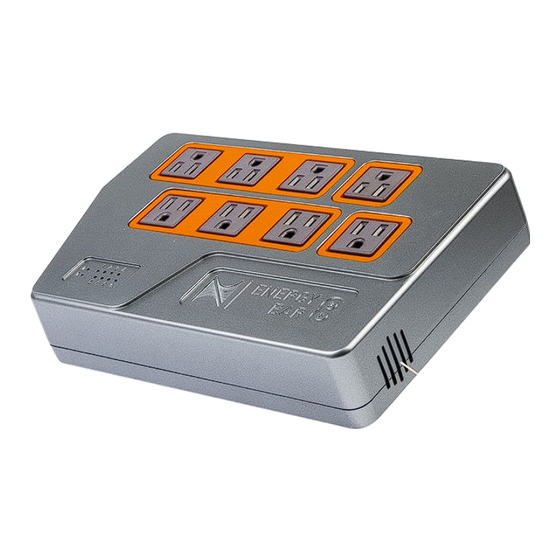

It should not be plugged in if there is water on parts not intended to be wet. • Do not operate any EnergyBar 832 if it has a damaged cord or plug, or if it is malfunctioning or has been dropped or damaged in any manner. - Page 3 INTRODUCTION Congratulations on your purchase of the Apex EnergyBar 832! The EnergyBar 832 allows the Apex system to control up to eight 120VAC items such as lights, pumps, fans, heaters, a chiller, and other aquarium equipment, as well as provides 24-volt DC power to compatible Neptune Systems Apex accessories and expansion modules.
-
Page 4: Important Usage Information
The EnergyBar 832 is intended for indoor use only. The EnergyBar 832 is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 GET TO KNOW YOUR ENERGYBAR 832 EnergyBar 832 - User Guide Page 4...
-
Page 6: Physical Installation
PHYSICAL INSTALLATION The EnergyBar 832 must be securely mounted in an indoor location free from moisture. The EB832 uses an innovative mounting system which provides safe secure mounting yet allows easy removal of the EB832 from the mounting plate. The EB832 must be mounted on a vertical surface such as a wall, an upright mounting board, or the side or back of your aquarium stand. - Page 7 • The EnergyBar 832 should be grounded to minimize the possibility of electric shock. It is equipped with an electric cord having an equipment grounding conductor and a grounding type plug. The plug must be plugged into an outlet that is installed and grounded in accordance with all appropriate codes and ordinances.
- Page 8 – drips, splashes, etc. AQUABUS CONNECTORS The EnergyBar 832 communicates with and provides power to the Apex base and Apex accessory modules through the AquaBus connectors. The EnergyBar 832 has three connectors which may be utilized to connect the EnergyBar to the Apex base unit and to connect to other AquaBus accessories.
- Page 9 Not Lit The EnergyBar 832 has no AC input power or AquaBus power from other EnergyBars Solid Orange The EnergyBar 832 is operating normally and is communicating with the Apex base unit Flashing Orange (rapid) The EnergyBar 832 is in bootloader mode and is attempting to...
- Page 10 ENERGYBAR 832 CIRCUIT BREAKER The 15 Amp circuit breaker is located inside the EnergyBar 832; a yellow status/reset button is visible on the rear of the EB832. The yellow button will normally protrude from the back of the EB832 case by approximately 1.5-2mm.
-
Page 11: Additional Information
EB832 outlets, monitoring of voltage, amps, and watts, and other EB832 usage via the Apex user interfaces: Apex Get Started Guide Apex Documentation For details about using the DC24 outlets, please refer to the DC24 FAQ on the Neptune Systems Community Forum. EnergyBar 832 - User Guide Page 10... -
Page 12: Neptune Systems Limited Warranty
1 year from the date of purchase. If repair or adjustment is necessary and has not been the result of abuse, Neptune Systems warrants this product to be free from defects in material and workmanship for a period of 1 year from the date of purchase. - Page 13 Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. EnergyBar 832 - User Guide Page 12...
