Instruction Sheet
for the PASCO
Model OS-8514
GROOVE
Introduction
The PASCO OS-8514 Laser Adapter Kit adapts the
PASCO SE-9367 Mini Laser for use with all PASCO
optics systems.
INCLUDED
• (1) 648-07092 adapter bracket
• (2) 617-008 thumbscrews
• (2) 614-088 jam nuts
• (2) 615-010 fiber washers
LASER ADAPTER KIT
Setup Procedure

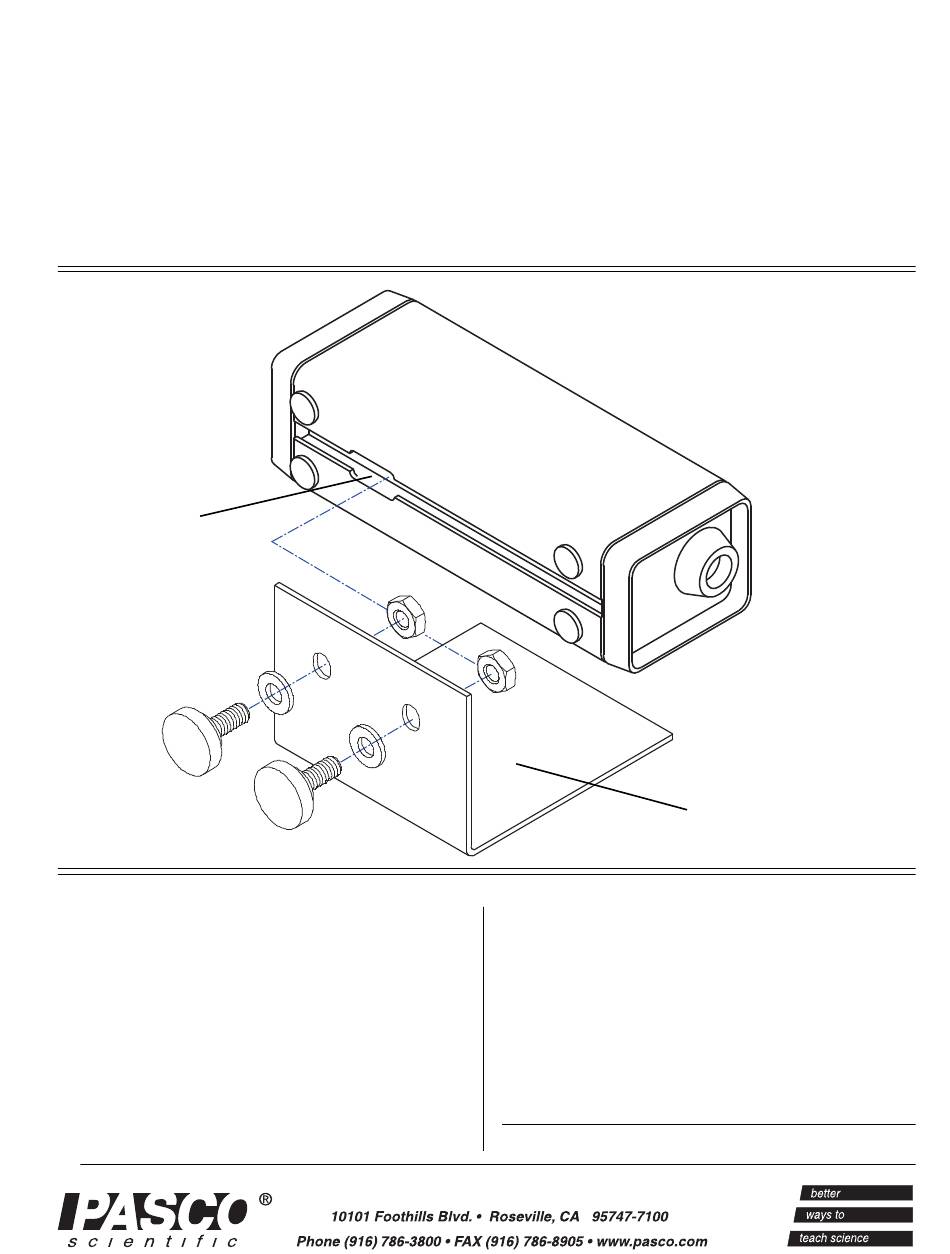

1. Place jam nuts, flat side outward, into the
groove on the bottom of the Mini Laser.
2. Looking at the back of the laser, line up the
bracket's holes with the nuts so the adapter bracket
comes up the left side of the laser.
3. Insert the thumbscrews with washers and finger
tighten.
© 1999 PASCO scientific
012-07094B
ADAPTER BRACKET
