elniko Basis Assembly And Operating Instructions

Initial operation

The subshell should be assembled on the wall or on the frame of the silo with delivered screws and dowels. Do not
crease the pressure sensor. The cables with Ø 0,3 mm² could be extended at any length. Please insert the batteries and
mind the polarity. Switch to the right the signal slide to "I". The contained capacity of wood pellets is indicated by a every
ten seconds blinking LED. In addition a signal tone resound, which has to be switched of with the slide switch. After
refilling of the silo the slide switch has to be switched to „I".

Designated application

elniko is a product, which measures the filling level of wood pellets in a silo. You can measure pellet bulk
material with the quality of DIN/ÖNORM ENplus A1 A2. The placement of the latest reserve (lowest sensor)
can be fixed according to your demands. The higher the sensor is appropriated, the sooner the signal
module will warn and the more pellets are inside the silo. We recommend to appropriate the sensor on that
filling level, where you have enough wood pellets for two or three weeks before an alarm is given. By
inserting the batteries, please mind the right polarity. It is not allowed to install the signal module inside the wood pellet
storage (silo, buried tank, etc.). Danger of explosion! The cabels of the sensors have to be fixed inside the silo with
enclosed adhesive tape or cable clamps. It is not allowed to operate elniko, when the housing of the signal module is
open, or components of the housing are missing. An operation in not allowed in damp areas, outdoor areas, in wet or high
humidity areas. Other application than described is not allowed, because the product could be damaged or can cause
other dangers like short circuit, fire, electric shock etc.. It is not allowed to change or to rebuild the whole appliance. The
safety instructions have to be followed. We assume no liability in case of failed heating system.

Safety instructions

This assembly and operating instruction contains important information for a proper operation. Therefore read
it carefully before installation. There is no liability for damages caused by not observing the safety
instructions. We assume also no liability for consequential damages. We assume no liability in case of
personal damage and property damage caused by not observing the safety instructions. In such cases any
warranty claim will expire. This application left our premisses in an absolutely perfect condition. To maintain
this condition and to ensure a safe operation, the user has to follow the assembly and operating instrucion.

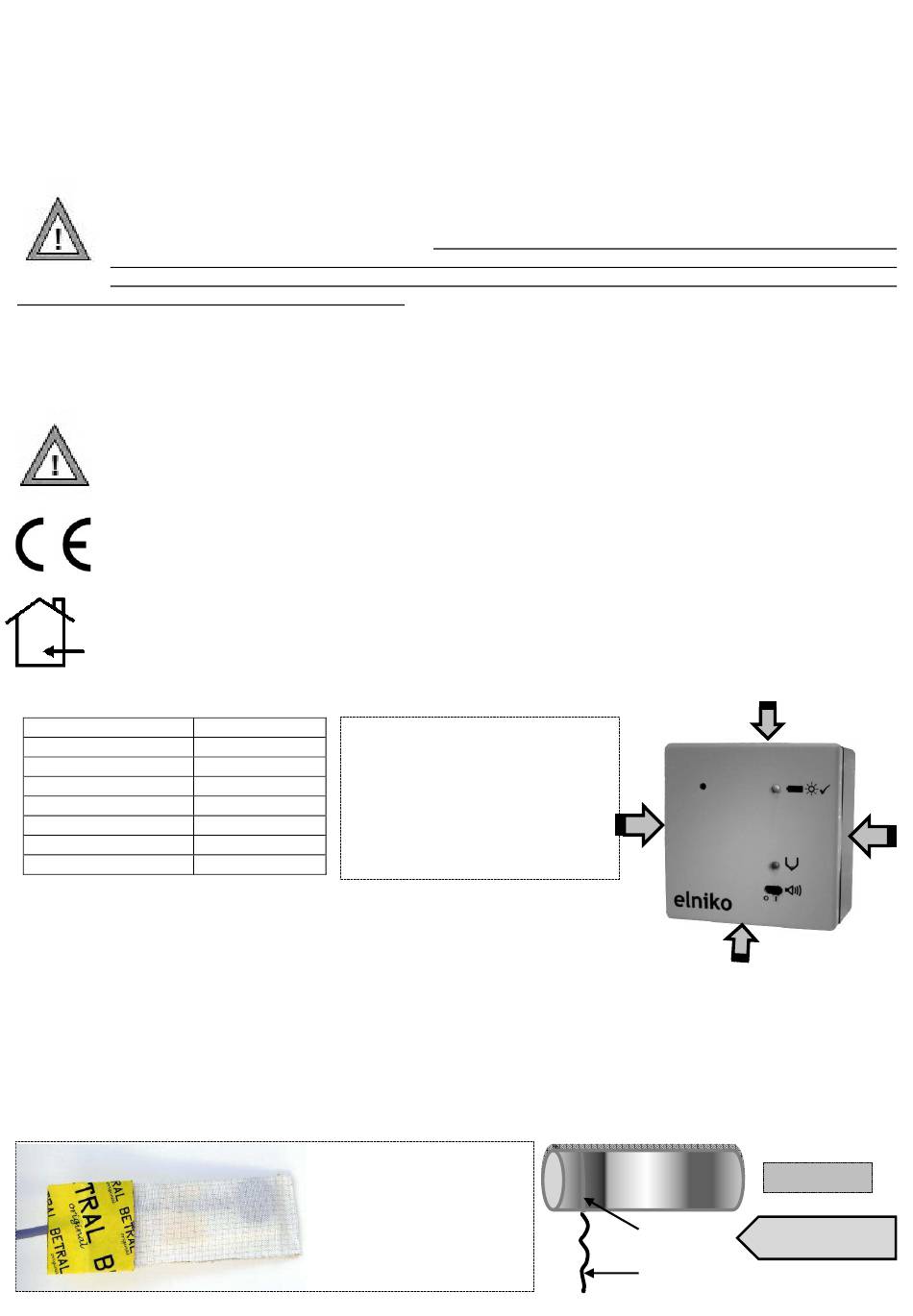

Following symbols have to be considered:
This application is CE-proven and complies withe the EMV directive EN50081-1 (1992) and the Low Voltage
Directive EN50082-1 (1997). Only for dry inside application. Because of reasons of safety and certificate of
approval (CE) self contained rebuild or changes in the appliance is not permitted. Please consult an expert in
case of any doubts about the operation, safety or connection of the appliance.
Battery indicator: When the green blinking LED does not work anymore, the batteries have to be changed.
Please do not use rechargeable batteries! They donot have the necessary voltage.

Technical data:

Voltage
DC
Ambient temperature
Dimensions
Weight
IP
Noise level of 10 cm
Opening of the housing: Press simultaneously with thumbs and forefingers of both
hands on the middle of the side parts of the housing and remove carefully the cover
forwards. Thereby pay attention to the cable connection.

Assembling of sensor for fabric silo/buried tank

For assembling of the sensor cable you have to open the fabric silo on the pipe clamp. Fix the sensor cable inside of the filling
nozzle with cable straps. In case of several filling pipes you have to make sure, that the sensor cable is not assembled into the
flight direction of pellets during filling.
At GEOplast fabric silo the nozzle for adaption of the sensor cable should be dismantled.
Close everything again please. You can fix the signal module at the structure of the silo.
The cable of the sensor could be easily adjusted. You have to move the cable of the sensor or hung it longer or shorter in the
silo.
elnikoBasis assembly and operating instruction
elnikoBasis
Scope of delivery:
4x1,5V AA
- 1 x sensor with 5 m cable
75 µA
- 4 x AA batteries
-15°C bis 45°C
- 1m adhesive tape
75x75x40 mm
- 2 cable straps
180g - battery box
- dowels/screws
41
- assembly and operating instruction
Approx. 75 dB
Pull of the protective film of the
back side of the sensor base
plate. Push it into the pocket of
the silo. Close the pocket with
adhesive tape.
elnikoBasis
filling pipe
direction of blowing
cable straps
of the wood pellets
sensor cable
