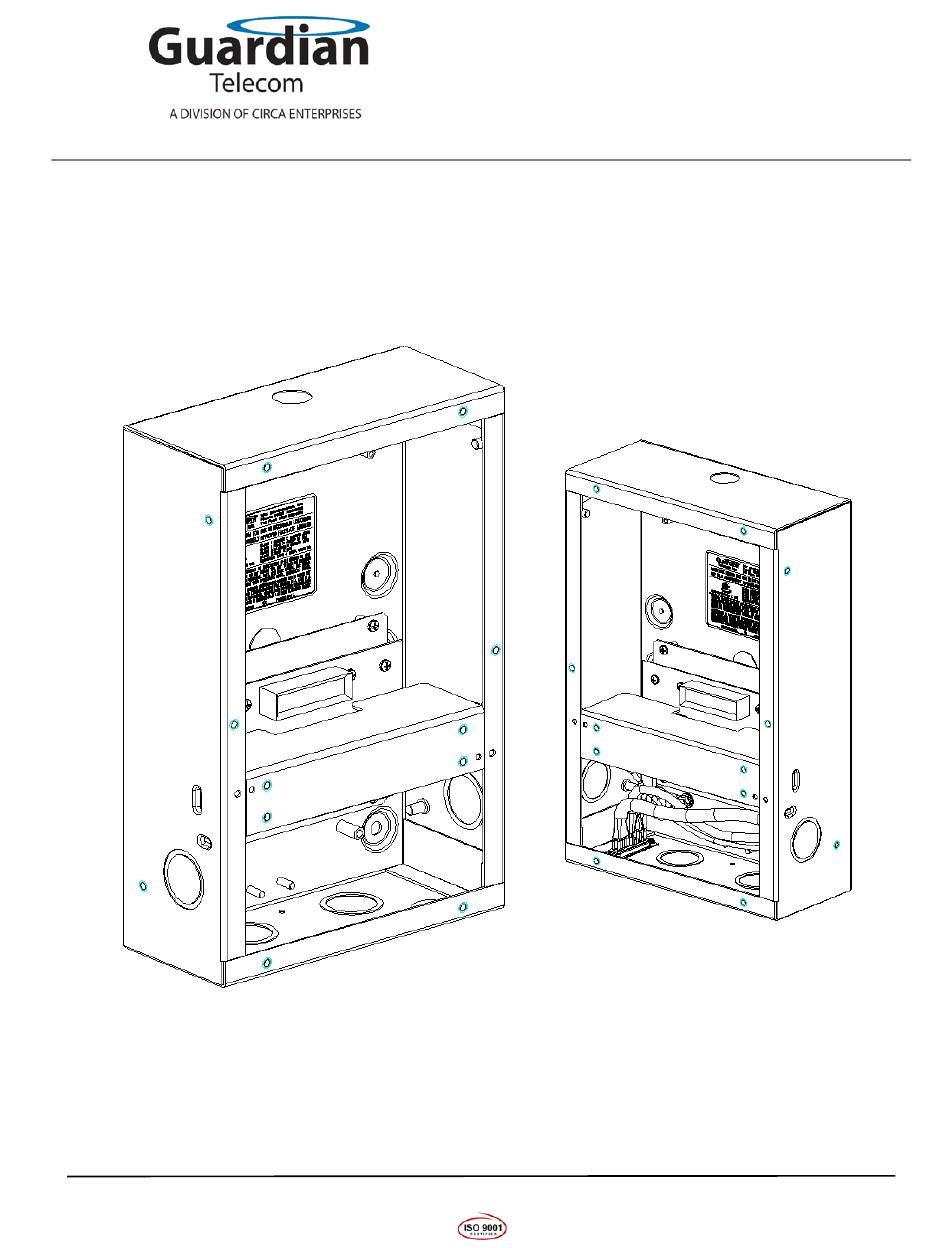

- Page 1 Page/Talk Indoor Housing Installation & Operation P5520 P5521 P006114 Rev. C 171030 10/30/2017 12:37 PM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
-
Page 2: Table Of Contents
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Table of Contents Package Contents ................2 Replacement Parts ................2 Overview ..................... 3 Features ....................3 Page/Talk Indoor Housings Models ............. 3 Options and Accessories ..............3 Alternative Speaker Configurations ............6 Installing the Indoor Housing ............... -
Page 3: Overview
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Overview Page/Talk Indoor Housings Guardian's Page/Talk Systems provide reliable and easy to use paging and communication within industrial environments such as plants, mills and factories. Individuals can be paged from any station and two or more persons can communicate on any available line. The Indoor Housings described in this manual are designed for use in harsh, industrial environments. -
Page 4: Figure 1 - Features (With Optional Desk Set Connector)
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Figure 1 - Features (With Optional Desk Set Connector) Page 4... -
Page 5: Figure 2 - Dimensions
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Figure 2 - Dimensions Figure 3 - Mounting Page 5... -
Page 6: Alternative Speaker Configurations
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Alternative Speaker Configurations Note: Total impedance on the amplifier circuit should not be less than eight ohms for continuous operation such as background music and not less than four ohms for intermittent operation such as paging. -
Page 7: Figure 5 - Installation Photo
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Figure 5 - Installation Photo Figure 6 - Crossbar Assembly Photo Page 7... -
Page 8: Figure 7 - Wiring
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Figure 7 - Wiring Jacket Stripe Wire Assignment Designation Description Color Color Gauge System Power J4A/J5A Black 14 AWG J4A/J5A White 14 AWG J4A/J5A Green 14 AWG Ambient Noise MIC + Microphone MIC - Speaker SPK +... -
Page 9: Installing The Indoor Housing
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Installing the Indoor Housing WARNING - high voltages are present in this equipment when it is connected to the power source. • Follow all appropriate electrical codes and use only approved electrical fittings for the installation. -
Page 10: Group Muting
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Group Muting In order to avoid acoustical feedback it may be desirable in certain See: Figure 8 - Electrical circumstances to mute speakers associated with adjoining stations when Connections. making a paging call. This can be accomplished by interconnecting the “Group Mute”... -
Page 11: Product Specifications
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Product Specifications NVIRONMENTAL EATHER IGHT NCLOSURE ASKET IGHT NCLOSURE ASKET ECHANICAL 16 G ONSTRUCTION AUGE TEEL ICHROMATE LATED OWDER OATED 12.31 X 8.13 X 3.63 / 313 X 207 X 92 IMENSIONS INCHES 6.2 L /2.8 K... -
Page 12: Warranty
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty free of charge. -
Page 13: Guardian Product Return
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Guardian Product Return Guardian products have been quality tested and are in full working order when shipped from the factory, given the rugged nature of these products shipping is not expected to damage a unit. In the unlikely event of a malfunction Guardian follows the three step procedure below. -
Page 14: Page/Talk System Models And Options
Guardian Telecom Installation and Operation Page/Talk Indoor Housing Page/Talk System Models and Options Indoor Handset Stations PTI-1 & PTI-5 P9035 AB1000 Glass Reinforced Plastic hood P9029 AB2000 Glass Reinforced Plastic full P5550 Ambient noise sensor, single line size P5551 Ambient noise sensor, five line P5552 Ambient noise sensor, headset Cable... -
Page 15: Typical Installation
Guardian Telecom Inc. Installation and Operation Page/Talk Indoor Housing Typical Installation Page 15... - Page 16 Guardian Telecom Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) CONNECTED. PROTECTED. © Guardian Telecom 2017...
