Removing Homing Sensor Cable; Step 1: Remove The Worm Block Covers - Software Bisque Paramount ME II Manual

There are two screws that hold in the homing sensor (see Figure 8). Use a flat end 1/16" allen key to
remove the two 4-40 button head cap screws and free the sensor. Take care not to drop any screws in
to either tube when removing sensor. The sensor only fits one way in to the cover so note that the red
connector to plug in to is on top for ease of replacing.
Reverse these directions to replace with new homing sensor. Make sure all the slack from the cable is
pushed back in to the hole in the tube before replacing the cover.
Be careful to not pinch cables when replacing the cover or tightening screws! Pinched
cables can cause electronic issues or erratic behavior.

Removing Homing Sensor Cable

Step 1: Remove the Worm Block Covers

Remove both worm block covers so that homing sensor cables can be unplugged.
The worm block cover is attached to the mount with five 10-32 socket head cap screws (SHCS), see
Figure 2. Remove each using a 5/32-inch hex wrench. The cover should come off with little to no force,
however, sometimes the standoffs that align the cover to the mount body can bind. A light "tap" with
the palm of your hand will release the cover.

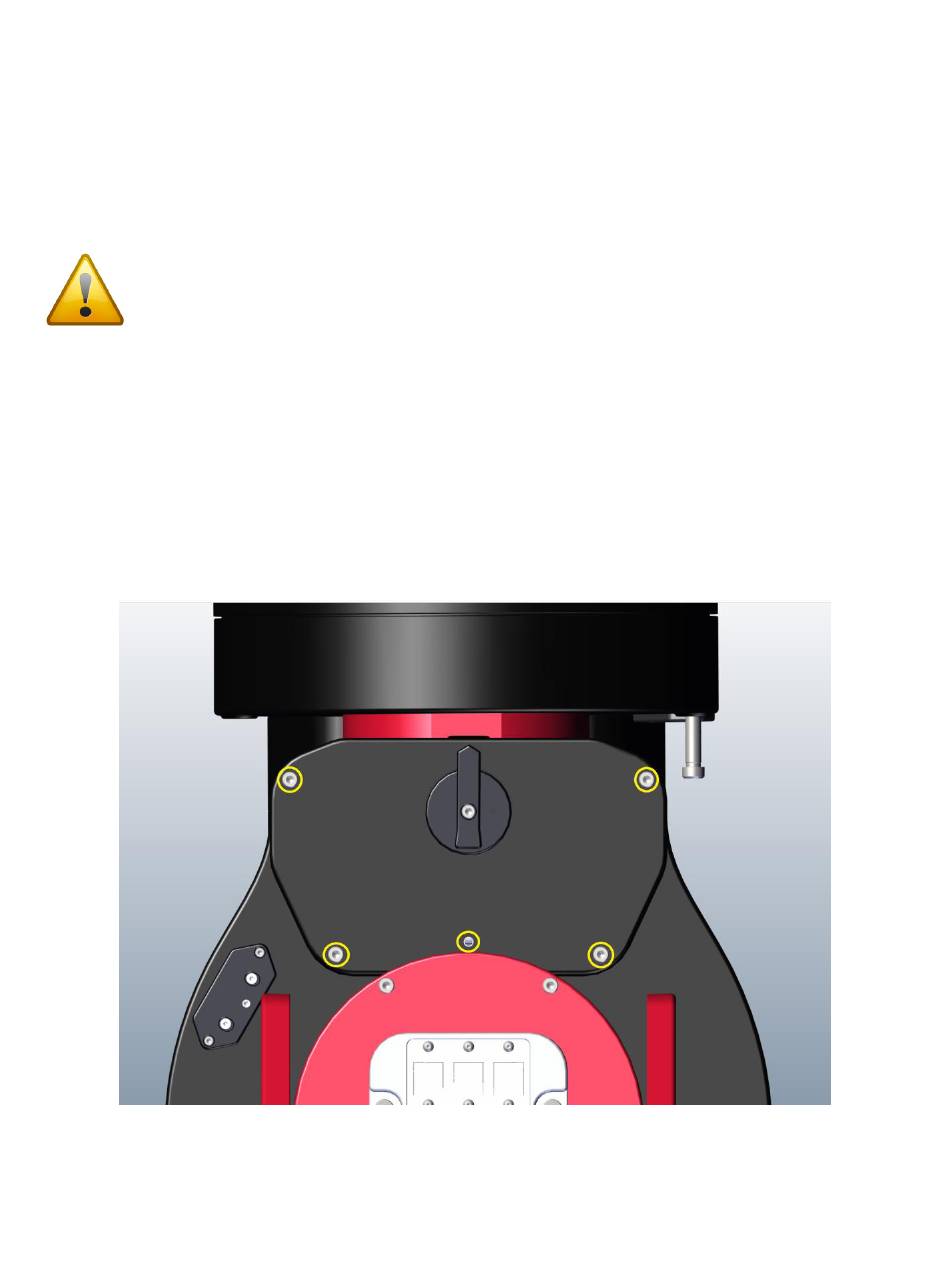

Figure 2: Five worm block cover screws to be removed for Paramount ME II.
