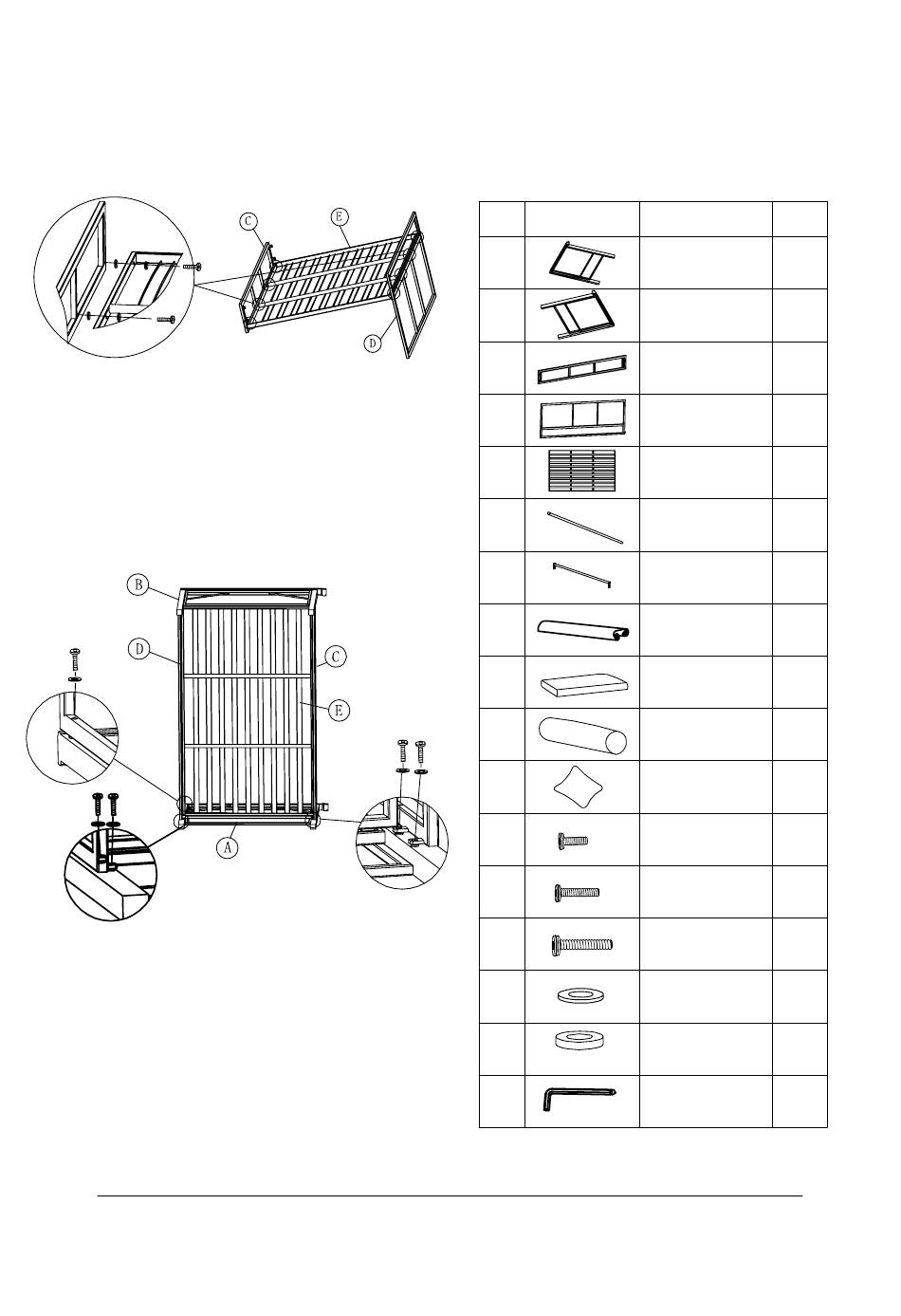

Walmart BH15-092-099-20 Assembly Instruction

Wal-mart.Com Assembly Instruction
Stock# BH15-092-099-20 / BH15-092-099-21
NOTE: Do not completely tighten bolts until all steps are completed.
EE
EE
BB
EE BB
EE
Fig. 1
Step 1: Place the parts on a soft surface. Attach the
back panel (D) to the seat (E) by lining up the bolt holes
on the back panel (D) with the corresponding bolt holes
on the seat (E). Insert M6x30 bolts (BB) with plastic
washers (EE) and loosely tighten using the allen
wrench (FF). Repeat this step for the front panel (C)
and seat (E). Do not completely tighten the bolts.
Please see Fig.1.
CC
DD
AA
AA
DD DD
Fig. 2
Step 2: Attach the left panel (A) to the back panel (D) by
lining up the bolt holes on the left panel (A) with the
corresponding bolt holes on the back panel (D). Insert
M6x42 bolts (CC) with M6 washers (DD) as well as
M6x18 bolts (AA) with M6 washers (DD). Loosely
tighten the bolts with the allen wrench (FF). Repeat this
step for the right panel (B) and back panel (D). Please
see Fig. 2.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905-4107 , 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Providence Daybed, Green/Red
PART LIST
A
B
C
D
E
F
G
H
I
J
AA
AA
DD
DD
K
AA
BB
CC
DD
EE
Thickness 2mm
FF
DESCRIPTION QTY
Left panel
1
Right panel
1
Front panel
1
Back panel 1
Seat
1
Pole-1
4
Pole-2
2
Canopy
1
Seat cushion 1
Long pillow
2
Pillow
4
M6x18 Bolt
16
M6x30 Bolt 8
M6x42 Bolt 2
M6 Washer
18
Plastic washer
16
Allen wrench
1
