waves system ID-AL My Video Player VP320 Quick Start Manual

1 Introduction
This guide explains how to quickly start up the My Video Player for a first use. For further information and
help on this product, see the support page of the My Video Player on www.id-al.com.
The My Video Player range is composed of standalone and interactive players that allow the playback of audio,
picture, video 4K HDR UHD and HTML5 / JavaScript contents. These contents can be stored in an internal
memory, on a microSD card, or on a USB flash drive. The playback can be programmed to start automatically, to
follow a schedule, or to respond to external events (infrared remote control, input contacts, RS-232, TCP/IP,
JavaScript, or REST).

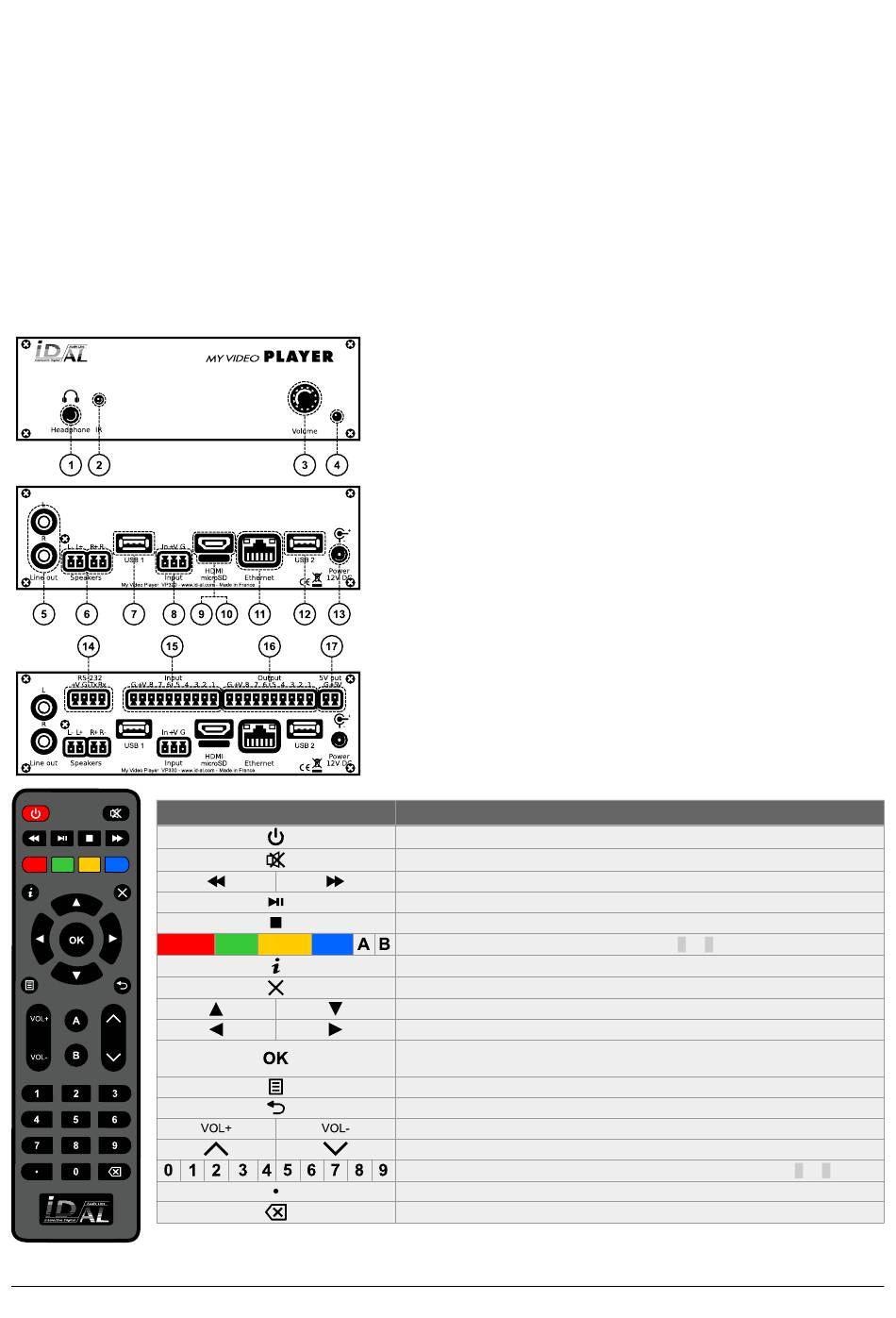

2 Hardware Description

Red
© 07/16/2020, Waves System – 14 rue Philippe Lebon, 44980 Saint-Luce-sur-Loire, France – +33 (0) 2 40 78 22 44 – sales@wsystem.com
ID-AL My Video Player VP320 and VP330
Quick Start Guide V1.2
Button
Green Yellow Blue
1 Headphone stereo audio output, standard 3.5 mm (TRS) jack
2 Infrared sensor
3 Clickable knob (volume)
4 Status LED
5 0 dBu line-level stereo audio output, RCA connectors
6 Class D amplified speaker stereo audio output, pluggable terminal
blocks
7 USB Host 2.0 for USB flash drive and touch screen, type-A
receptacle
8 Standalone opto-isolated input and power supply output, pluggable
terminal block
9 HDMI audio/video output, type-A (standard) receptacle connector
10 microSD card slot
11 10/100 Mbps Ethernet, RJ45 connector
12 USB Host 2.0 for USB flash drive and touch screen, type-A
receptacle
13 External DC power supply chassis socket
14 RS-232 serial link and power supply output, pluggable terminal block
15 8 opto-isolated input contacts and power supply output, pluggable
terminal block
16 8 MOSFET outputs and power supply output, pluggable terminal
block
17 5 V DC output, pluggable terminal block
Short press: standby/wake-up. Long press: power off / restart.
Mute/unmute.
Skip 10 seconds backward/forward.
Play/pause.
Stop Playback.
Programmable buttons: by default, play folder 1 to 6, respectively.
Toggle on-screen information display.
Exit.
In menu context: up/down. In playback context: next/previous folder.
In menu context: left/right. In playback context: previous/next file.
In menu context: validate selection. In playback context: toggle on-screen
information display.
Toggle on-screen menu display.
Back.
Increase/decrease the volume.
When selecting a value, typically with a slider control, skip many values.
In menu context: digit characters. In playback context: play folder 0 to 9.
Dot character.
Erase previous character.
Description
