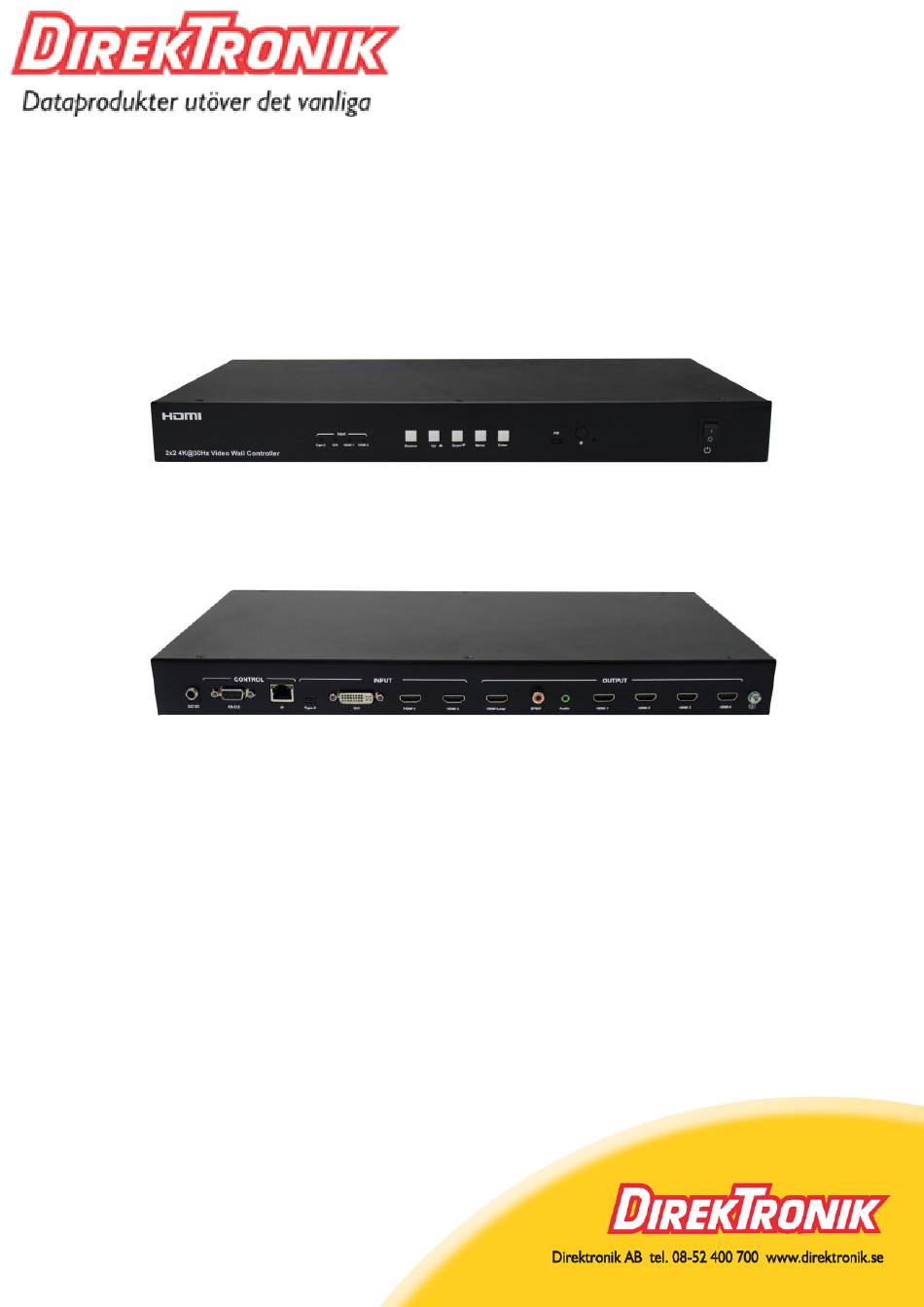

DirekTronik SX-VW02 Operating Instructions Manual

Hdmi 2x2 4k video wall controller with usb type-c /dvi /2-port hdmi inputs

Advertisement

Quick Links

Best.nr: 20101782
HDMI 2X2 4K Video Wall Controller with USB
TYPE-C /DVI /2-port HDMI Inputs
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-VW02 and is the answer not in the manual?

Questions and answers

Summary of Contents for DirekTronik SX-VW02

  • Page 1 Best.nr: 20101782 HDMI 2X2 4K Video Wall Controller with USB TYPE-C /DVI /2-port HDMI Inputs Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
  • Page 2: Table Of Contents

    Directory 1. FEATURES............................. 4 2. NOTICE............................4 3. SPECIFICATIONS..........................4 4. PACKING CONTENTS........................5 5. PANEL DESCRIPTIONS....................... 5 6. CONNECTING AND OPERATING....................6 7. CONTROL INSTRUCTION......................7 7.1. Remote Control..........................7 7.2. Video Setting By Panel Control....................8 7.2.1 Video Switching......................... 8 7.2.2 Video Wall Setting......................9 7.2.3 Mirror..........................
  • Page 3 MAINTENANCE..........................32 PRODUCT SERVICE........................32...
  • Page 4: Features

    1. FEATURES Support USB TYPE-C /DVI /2 HDMI input.  Support 4K 2x2 video wall, cascading to create 2x3,3x4 and max 10x10 video wall.  Support output image 180° rotation.  Support highest resolution up to 4K@30HZ 4:4:4 for Type-C and HDMI inputs, ...
  • Page 5: Packing Contents

    4. PACKING CONTENTS 1) Main Unit: HDMI 2X2 4K Video Wall Controller 2) 1x Power supply 12V2A 3) 6x Screws, 2x detachable mounting ears 4) 1x CD(Including User manual, RS232 command list) 1x Remote controller 1x USB cable (for firmware update) 5.
  • Page 6: Connecting And Operating

    DVI input port HDMI input1 HDMI input2 HDMI loop output S/PDIF port Analog Stereo port HDMI output1 to HDMI output4 6. CONNECTING AND OPERATING  2x2 Video Wall  Cascade 4x3 Video Wall...
  • Page 7: Control Instruction

    Distribute A Single Source to 4 Displays 1) Connect the sources into the video wall controller and Press the button on the remote,then choose the input Signal (DVI, 2 HDMI in, USB TYPE-C,). 2) Connect HDMI OUT to display equipment. 3) Power on the Video Wall Controller.
  • Page 8: Video Setting By Panel Control

    Note 1: The funtion of Right/Enter in the remote controller is the same as the "Right/Enter" on the panel. 7.2 Video Setting By Panel Control Press the "Source" button to select the input from Type-C→DVI→HDMI1→HDMI2. Note: 1.The video switching OSD interface only shows four output channels and the current input signal channels, and it can only switch one input source to all output channels when the input and output are both connected to the device.
  • Page 9: Video Wall Setting

    Video switching interface 7.2.2 Video Wall Setting Press the "Left/Menu" on the panel to enter the "Video Wall" menu, Press "Up/Down" to select or set up the video wall mode, Press "Menu/Enter" to confirm or back to the previous menu, the selected one has a "@" to mark. ...
  • Page 10 2x2 Video wall port map Eg: Map2 correspond to Output1, OSD shows "Out1" Note: 1. Output screens under the same cascade layer can be connected to any output port in this layer. 2.The position of Map1 to Map4 in the same cascading layer is stable no matter how the output ports arrayed, the rule for "Port Map"...
  • Page 11: Mirror

    Video wall set up 7.2.3.Mirror Press the "Left/Menu" on the panel to enter the "Mirror" menu, Press "Up/Down" to select the mirror mode, Press "Menu/Enter" to confirm or back to the previous menu.  "Normal" represents default mode (without mirror function), ...
  • Page 12: Edge

    Rotate interface 7.2.5. Edge Press the "Left/Menu" on the panel to enter the "Edge Set" menu, Press the "Up" or "Down" on the panel to select, then press "Enter" to confirm, The selected one has a "@" to mark.  "X" represents the margin setting between the horizontal displays, each image is divided into 302 units.
  • Page 13: Format

    Edge set interface 7.2.6. Format Press the "Left/Menu" on the panel to enter the "Format" menu,  Format including 4K30 ;1080P@60 ;720P@60;2560x1440;1920x1200; 1366x768 and Auto for each output or all outputs to choose by Pressing the "Up" or "Down" button, press "Enter" to confirm the selection,the selected one has a "@"...
  • Page 14: Edid

    Format interface 7.2.7. EDID Press the "Left/Menu" on the panel to enter the "EDID" menu, Press the "Up" or "Down" on the panel to select, press the "Enter" to confirm the selection, the selected one has a "@" to mark. ...
  • Page 15: Audio Output Setting

    Press the "Up" or "Down" on the panel to select, press the "Enter" to confirm the selection, the selected one has a "@" to mark,  For HDMI input1 and HDMI input2, there is "CH2.0" and "CH5.1" to choose, default is CH2.0, Support digital audio 5.1 channel only when input is HDMI. Audio input setting interface 7.3.2.
  • Page 16: System Setting By Panel Control

    Audio output setting interface 7.4. System Setting By Panel Control 7.4.1. Baud rate Press the "Left/Menu" on the panel to enter the "Setup" menu then the "Baud" menu, Press the "Up" or "Down" on the panel to select, then press the "Enter " to confirm, The selected one has a "@"...
  • Page 17 It contains set up for " DHCP ON/OFF "; "IP Address"; Mask"; "GW"; "DNS" Eg: IP address setting: 1) Modify the IP to 192.168.1.100, press the "up" and "down" to select IP [0], IP [1], IP [2], and IP [3] to enter the next sub-item (each sub-item can be set from 0 to 255), press the the "up"...
  • Page 18: Reboot

    IP address Mask address Gateway address DNS Interface 7.4.3 Reboot Press the "Left/Menu" on the panel to enter the "Reboot" menu, Press the "Up" or "Down" on the panel to select "Yes" or "No" , then press the "Enter" to confirm, the selected one has a "@" to mark.
  • Page 19: Factory Reset

    Reboot interface 7.4.4 Factory reset Press the "Left/Menu" on the panel to enter the "Factory" menu, Press the "Up" or "Down" on the panel to select "Yes" or "No" , then press the "Enter " to confirm, The selected one has a "@" to mark. Factory reset interface 7.4.5 System information Press the "Left/Menu"...
  • Page 20: Web Control

    IP information 7.5. Web Control The host computer such as PC is connected to the control device through the TCP/IP network port. The control mode is divided into two types: connect with a computer without network for single device control or connected to the LAN to realize multi-machine control simultaneously Control without network: When the host computer is connected to a computer without network through the...
  • Page 21: Interface Introduction

    Connecting to LAN to realize multi-user remote control devices (such as mobile phone, other PC) in Ethernet environment, it is necessary to ensure that the IP segment of the host is consistent with that of the connected LAN, it also need to open the DHCP and enter the related IP address to control.
  • Page 22 Browser compatibility (1) Use the browser such as Google, firefox, apple with the latest browser version for better compatibility, The other browsers may result in incompatible problems. (2) If you use the Internet explorer browser, pls make use the version number is higher than IE10.
  • Page 23: Video Wall Setting

    7.5.2 Video wall setting Note:This interface is used to set up video walls or cascade. Interface introduction: (1) Video Map column: to identify the location of the output port mapping, you can change the output port position through the drop-down menu. (2) Output column: screens in horizontal and vertical directions, plus the parameters of the equipment cascade layers.
  • Page 24: Mirror

    Eg2:Select DVI port as input source to make a 2x3 video wall by 2 devices.TV 1 ~ 4 are connected to output port 2/4/1/3 of device 1 respectively, and TV 5 ~ 6 are connected to output port 3/4 of device 2. Operation Steps of device1: (1) In the Output section of the first device, select the "Horizon"...
  • Page 25: Rotate

    7.5.4 Rotate Interface introduction: The interface support each output image rotation 180 degree, support rotate a single image at a time or rotate all output images at once. Operating instructions Click on the "ON/OFF" button to adjust. 7.5.5 Edge Interface introduction: The default edge of booth horizontal and vertical display screen is 3.5mm frame size, each image is divided into 302 units.
  • Page 26: Format

    7.5.6 Format Interface introduction: The interface is used to adjust the output format, the left output section including HDMI Output1、 HDMI Output2、 HDMI Output3、 HDMI Output4 and ALL, the right format section including 4K@30Hz、 1080P@60Hz、 720P、 2560x1440、 1920x1200、 1366x768 and AUTO. Operating instructions Eg: Select all output format as 4k@30HZ Click on the "ALL"...
  • Page 27: Audio Output Setting

    INPUT Section: the back content of the ">>" indicates the input source, and the front content of the ">>" indicates the current EDID information. It support set up the EDID separately for each input or select all input as the same EDID . EDID Section: There are two built-in EDID including 4K@30hz and 1080P.
  • Page 28: Audio Input Setting

    7.5.9 Audio input setting Interface introduction: It shows PCM2.0 and 5.1 to choose for HDMI Input1 and HDMI Input2. Operating instructions Click on the "2.0/5.1" button separately to select the audio format for HDMI input1 and HDMI output2. 7.5.10 Network interface Interface description: It used to set up and display the basic information including IP/ MAC address, Net mask address, gate way address and DHCP.
  • Page 29: Reset

    Note: DHCP switch is a compound switch, DHCP On and DHCP Off are two choices. When Off is displayed, DHCP is closed; when On is displayed, DHCP is open (click HDCP button to switch DHCP function without clicking "Apply"). 7.5.11 Reset Interface introduction: The interface is used to restart the device and restore factory settings.
  • Page 30: Rs232 Control

    8. RS232 CONTROL Function description: plug in the USB port to RS232 tool, double-click to open the software , and then enter the main interface of the software, as shown below: Instructions: 1. All instructions begin with "#". Instruction header c% : d---operation parameter, I---operation lock, 2.
  • Page 31: Gui Update

    9.2 GUI Update Open the software UART_ISP.exe on PC, select the correct port and baud rate 115200, enter F0_01 (_ represents space) in the port, then select the program (xxxx.bin) in the path, and click update to complete the upgrade. Note: Pls reboot the device after GUI update.
  • Page 32 MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged; Objects or liquids have gotten into the unit;...
  • Page 33 LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of...
