Summary of Contents for GSM Bellini BBF145BI

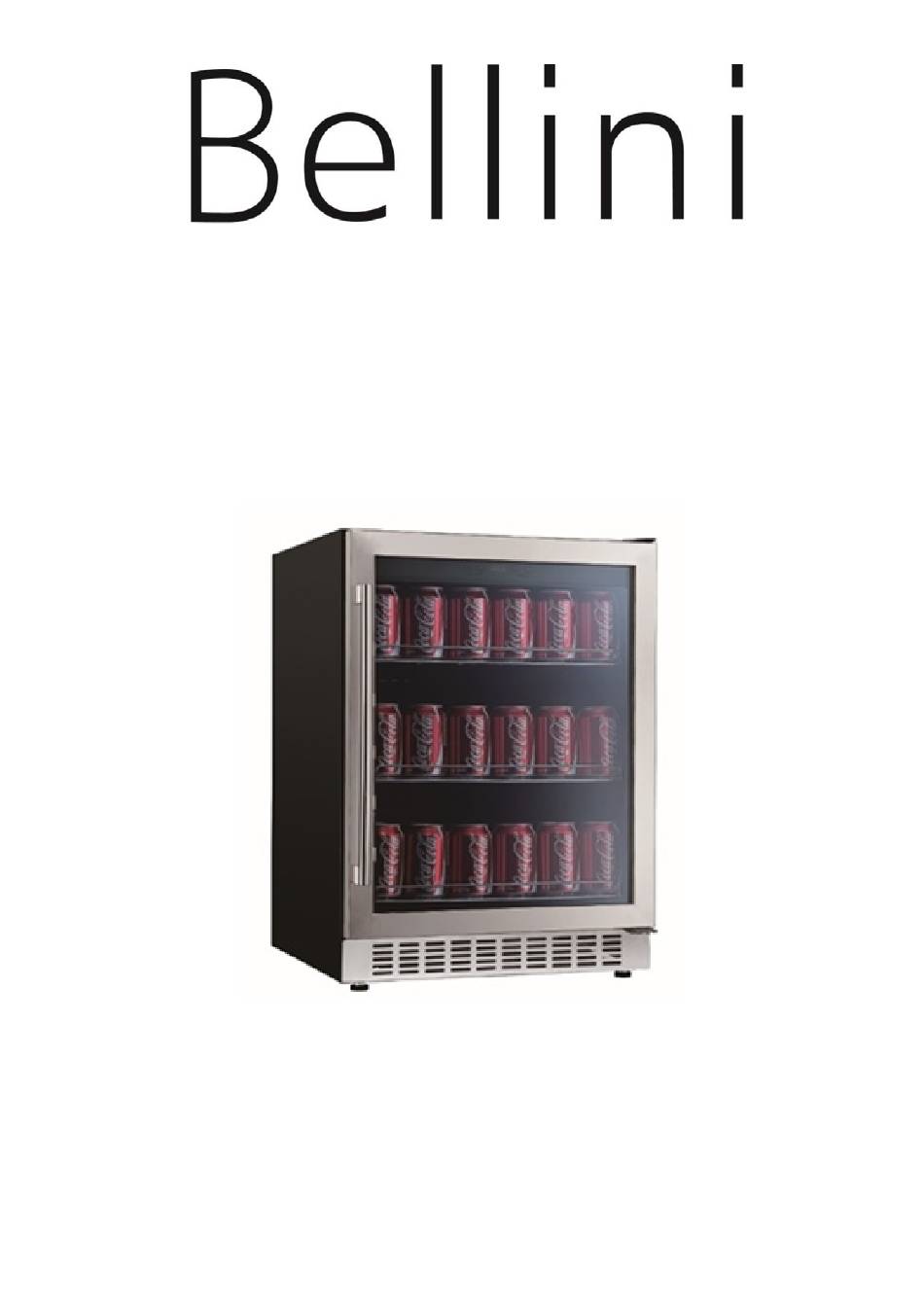

- Page 1 Compressor Beverage Cooler Model No. BBF145BI Model No. BBF145BI-F FINELINE: 133507 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 V3 July20 For Technical queries: 1300 373 199 Aust OR 0800 764 912 NZ Model: Beverage Cooler - BBF145BI / BBF145BI-F...
- Page 2 For Technical, queries please contact Aust: 1300 373 199 0800 764 912 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Technical queries: 1300 373 199 Aust OR 0800 764 912 NZ Model: Beverage Cooler - BBF145BI / BBF145BI-F...
-
Page 3: Table Of Contents
Description of the appliance………………………………..………………………………..3 Installation & operation………………………………..……………………………………….5-6 Troubleshooting………………………………..…………………………………………………..7 Maintenance and cleaning………………………………..…………………………………..8 Technical parameters………………………………..…………………………………………..9 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Technical queries: 1300 373 199 Aust OR 0800 764 912 NZ Model: Beverage Cooler - BBF145BI / BBF145BI-F... -
Page 4: Safety Instructions & Warnings
Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use this appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department. - Page 5 ●Do not allow children to access or play ●Please adhere to local regulations behind the rear of the appliance, regarding disposal of the appliance for exposed metal components can cause its flammable refrigerant and gases. injury. ●Before you scrap the appliance, please take off the doors to prevent children Keep away from water being trapped.
-
Page 6: Description Of The Appliance
Description of the appliance 11. Upper hinge Accessories & name 10. Door seal 1. Housing 2. Display panel 3. Shelf 9. Door 4. Cover board . Handle 5. Grill 7. Lower hinge cover 6. Adjustable foot Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration. -
Page 7: Installation & Operation
Installation & operation Position Do not angle the appliance over more than 45 degrees when moving into position . The appliance must be placed on a level and flat surface. 酒柜结构及安装示意图 Do not place appliance in damp/wet area. Do not place appliance in area where it will be exposed to frost or weather conditions. Do not use outdoors unless placed in fully covered areas that avoids exposure to direct weather conditions. - Page 8 Start operation 1. Before switching appliance On for the first time , clean the internal surfaces of the compartment by wiping with damp cloth as per Maintenance & Cleaning instruction further in this instructions booklet and check that drainage pipe is connected properly 2.
- Page 9 Attention 1. The cooling temperature could be set from 0℃-10℃. 2. Alarm sound: when a system malfunction occurs and alarm sounds, press any key on the control panel to cancel the alarm sound. 3. Temperature sensor failure: If a temperature sensor failures occur, error code displays. E1 for open circuit; E2 for short circuit..
-
Page 10: Troubleshooting
Troubleshooting The appliance make a If unit is not level vibration will cause noise, level noise during operation? appliance adjusting adjustable feet underneath the appliance. Allow for a little space between rear of appliance and back wall. Liquid flowing sound ... -
Page 11: Maintenance And Cleaning
Maintenance and cleaning Cleaning Disconnect the appliance before cleaning. Clean the appliance with soft cloth or sponge by water. Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Do not flush the compartment of the appliance. The below items will damage the surface of beverage cooler: Power Outage During a incidental power outage do not open the door,the beverages will stay relatively cool for a... -
Page 12: Technical Parameters
Technical parameters Bellini Product model Voltage/frequency 220-240V～/50Hz Refrigerant/weight R600a / 35g Effective volume 145 L Gross Loading capacity 178 Stand size cans Net weight 43.0kg Unit dimension 595×570×825-870mm (WxDxH) Packing dimension 680x670x905 mm (WxDxH) Remarks： 1. The Net weight includes shelves and the Unit dimension is without handle on the door. 2. - Page 13 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010; 1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone 1300 373 199. Email admin@gsmretailaust.com.au; 1.1.3 Consumer means a “consumer”...
- Page 14 GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.
