KTI-61002

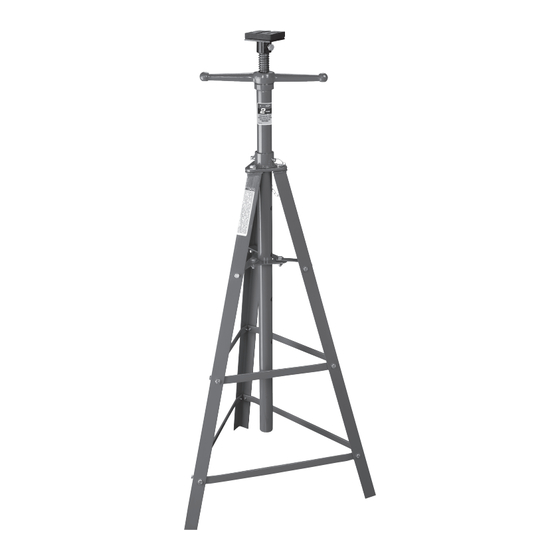

2 TON TRIPOD UNDER HOIST STAND
OWNER'S MANUAL
KTI-61002
WARNING:
Cancer and Reproductive Harm-
www.P65Warnings.ca.gov
SPECIFICATIONS
Capacity ................................................................................. 2 Ton
Overall Height (closed) ..............................................................49"
Overall Height (raised) ....................................................... 79-3/4"
Shipping Weight .............................................................39.65 Lbs.
Complies with ASME PASE/2014 Safety Standard
Advertisement
Table of Contents
Related Manuals for K-Tool KTI-61002
Summary of Contents for K-Tool KTI-61002
- Page 1 KTI-61002 2 TON TRIPOD UNDER HOIST STAND OWNER’S MANUAL WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov SPECIFICATIONS Capacity ................. 2 Ton Overall Height (closed) ..............49" Overall Height (raised) ............79-3/4" Shipping Weight .............39.65 Lbs. Complies with ASME PASE/2014 Safety Standard KTI-61002...
- Page 2 Failure to read this manual completely and thoroughly, failure to understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and comply with them, and failure to comply with the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. KTI-61002...
- Page 3 Inspect the stands before each use. Do not use the stands if any component is cracked, broken or bent. Do not use the stand if . Take corrective action before using the stand again. Premature wearing or damage to components caused by loose or missing hardware is not eligible for warranty consideration. KTI-61002...
- Page 4 K-Tool International HD and XD service-related equipment 2 Year Limited Warranty. K-Tool International warrants that all jacks and service-related equipment will be free from defects in material and workmanship for a period of 2 years following the original date of purchase. This warranty is extended to the original retail purchaser only. If any jack or service-related item proves to be defective during this period, it will be replaced or repaired, at K-Tool International’s option, without...
- Page 5 KTI-61002 2 TON TRIPOD UNDER HOIST STAND PARTS BREAKDOWN REF. # PART # DESCRIPTION QTY. Bolt (M6 x 10) KTP6100202 Saddle Pad Assy. (incl. #1-4, #17) 1 Saddle Base Extension Screw KTP6100205 Spin Handle KTP6100206 Bearing KTP6100207 Post Hex Bolt (M10 x 25)
