Wiring
If not using the supplied plug then the product must be wired to a IP67 rated terminal block.
Having correctly identified the wiring from your existing light fitting, connect to the approved outdoor rated external terminal
block in the following way:
SUPPLY
NEUTRAL
SWITCHED LIVE
Check that...
You have to correctly identified the wires.
The connections are tight.
No loose strands have been left out of the connection block.
Technical data
Supply
240 V~, 50 Hz
Voltage:
Output:
12V DC 15W Max. Constant voltage
Bulb
10 x 0.75 LED, RGB
Type:
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP67
67
IP
Care and Cleaning
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
To prolong the life and keep your outdoor lighting in good condition, it is recommended that periodically it is cleaned using a
soft cloth followed by the application of a light coating of oil, such as WD40.
For your safety, always switch off the power supply before cleaning.
Do not clean the units with a pressure washer.
Safety information
Live Voltages may be present in the transformer even when turned off or when completely disconnected.
For your safety, always switch off the supply before maintaining the system.
The LED module of this luminaire is not replaceable, when the LED module reaches its end of life the whole
luminaire shall be replaced
V2 16/03/2020
Saxby Lighting. BH17 7BY
LIGHT FITTING
BLUE (N)
BROWN (L)

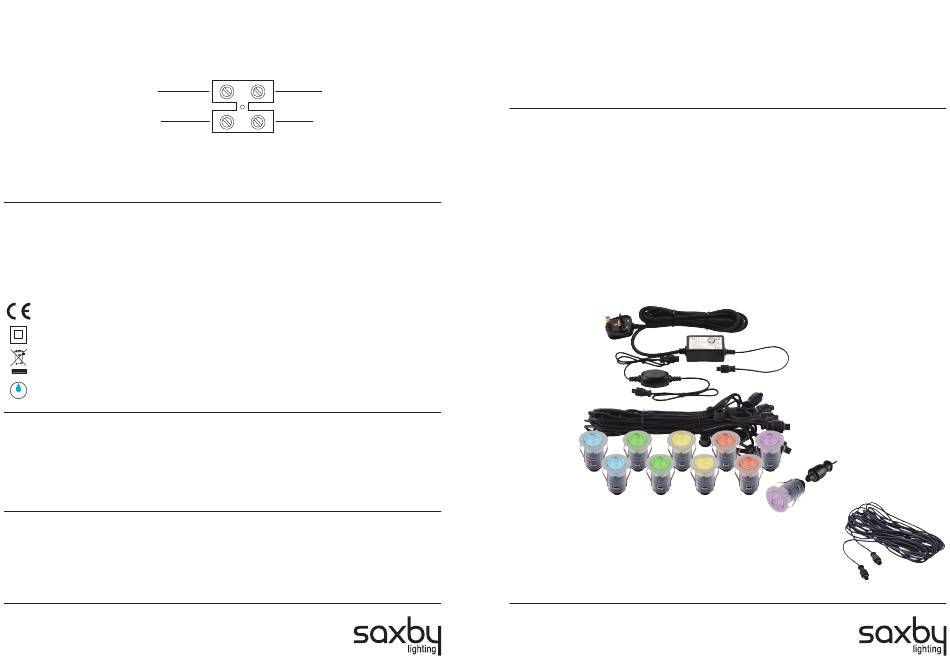

Instruction manual
SMART IKON
91961
www.saxbylighting.com
Accessory
92019 10m cable
