- Page 1 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT THE INTERNET User Manual Guide E-mail : master@appbot.co.kr / Homepage : www.appbot-link.com...
- Page 2 power supply adaptor. from Varram System Co Ltd. • Do not put a sharp and pointed object around the adaptor cable. The cable can be damaged. Disclaimer • In case of inserting the adaptor in a wall outlet or pulling out, never hold the cable- Varram System Co Ltd made a maximum effort to verify exposed part. completeness and accuracy of the information mentioned in this • Do not use an extension cable for the adaptor power supply cord. The cable can be document, however, we don’t guarantee this. A user is entirely entangled. responsible for the result of the document used. Contents of ...
-
Page 3: Table Of Contents
LINK LINK AppBot AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET Get started Appendix Product features Product specification Product and accessories Specification Each part name and function Product’s external appearance Power supply Problem settlement Installation and network connection Installation Caution Installation of smartphone application Execution Caution Product registration Get connected Change Password • In case of protecting, observing children with this product, be careful ... -
Page 4: Get Started
CHAPTER 01 Get started Product features Product features (1) Remote real time viewer (7) One-touch standing up function Product and accessories - It can be monitored through a smartphone anytime any - When fallen, it can stand up only by touching the icon. where. Each part name and (All of WIFI, 3G/4G are possible) (8) Image recognition function function - It has function to recognize a face to be tracked. (2) Convenient network setting ... -
Page 5: Product And Accessories

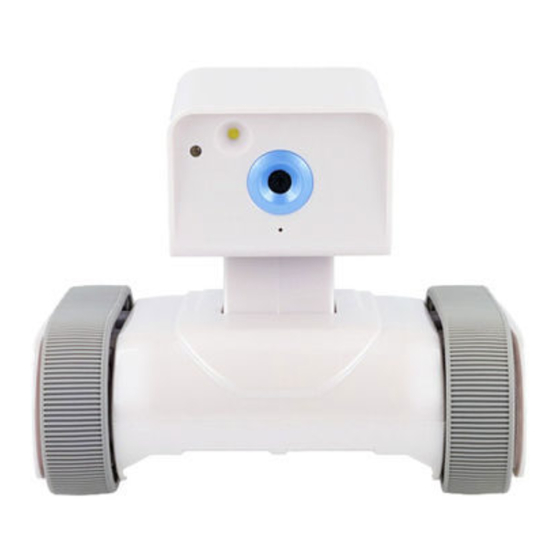

LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET Product and accessories When buying the product, confirm whether all the items are contained in the product package. appbot LINK Recharger Station Adapter (5V 1A) 5 pin power cable Quick guide... - Page 6 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET Descriptions Recharging staion docking part IR LED Head part ON/OFF switch Power DC 5V Micro 5pin Mobile part Reset button White LED IR LED Microphone Camera...
-
Page 7: Power Supply
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET Power supply (1) Insert the power supply adaptor of appbot LINK in to a wall outlet and connect like the illustration then charge. (2) Power on after charging sufficiently. (3) It takes about 20secs to turn on completely. (4) While turning on, the head part moves up and down 1 times. (5) Once completely turned on, you can hear the voice, “I’m ready” and LED color on the robot body part is changed into blue. Blue LED on the robot body part Station Charging cable... -
Page 8: Installation
CHAPTER 02 Installation and execution Installation Installation Caution (1) Caution Installation of smartphone application • Install a camera to a place where Wi-Fi signal is received and is free from interference. Execution • Avoid a moist place like where a humidifier is close to. Caution • Install to a place where there is no direct sunlight, strong light or dust and sight is clear. Product registration Get connected • Do not install to a place where there are many obstacles. • Use a piece of soft cloth when clean dust. Change Password... - Page 9 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (2) Installation of AppBot-LINK smartphone app 03 App like the picture above is installed. 04 In a place where you cannot download it at the corresponding store, refer to the homepage. * This application is provided for free. Execution (1) Caution • Connection to a wireless network may fail owing to communication 01 Search "appbot" at the Apple Store of Google. environment. • To look for detailed information on the network setting and password, please inquire of the network administrator or service provider. • In case of a specific internet service that needs a user authentication, this service may not be provided. In this case, please contact the service provider. • Do not approach to a network not certified. • The more it becomes distant from the wireless router the longer becomes , the waiting time to connect a network. • In case that access to the selected wireless network has failed, try to approach other wireless network. • To look for detailed information on the wireless router or wireless connection, refer to the router explanation or contact the router manufacturer. 02 Install appbot LINK. • Network delay or suspension can happendepending on not only the above situation but also network situation. • Same routers can cause a compatibility problem.
- Page 10 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (2) Product registation 01 Once execute the app, the above registered screen appears. Press NEXT button.
- Page 11 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET 02 Turn on the power supply located 03 Press Reset for about 1 second. 04 The head part moves up and down. at the bottom of the robot 05 Once booting is completed, you can hear the voice, "I'm ready" and blue LED on the body part turns on. (It takes about 20 secs to turn on completely.)
- Page 12 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET 06 Press HOME key to get out of 07 Enter Wi-Fi setting. 08 Search WI-FI and select APPBOT- the app. XXXXXX. Password is “link2014”.
- Page 13 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET 09 When you run the app again, the screen above appears, then 11 Select the Wi-Fi to use and press OK button. A list of the press NEXT button. neighboring Wi-Fi among. (Select a wireless router used at home or office.) 10 The screen above appears and search around Wi-Fi. 12 Enter the password of the wireless router accurately and press CONNECT button. When there is no password, press CONNECT button right away.
- Page 14 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET 14 Enter the password for the robot. The default password is "1234". 13 Following the picture above, network connection get started though the wireless routen. 15 If connected to internet normally, a voice by “I’m Ready” is produced and the robot’s image is seen on the smartphone on a real time.
-
Page 15: Get Connected
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (3) Get connected 03 Once select the corresponding robot on the list and press NEXT button, the following picture appears on the connection screen. 01 Once re-execute the app, the registered robot appears like the picture. * If you register the product more, it will be added to the list. 04 Once connected, a real time image appears. * When using 3G and 4G (LTE) data communication, an excessive bill can be charged and data delay and loss can occur. Hence, use of Wi-Fi 02 Enter the password for the robot. (The default password is "1234".) is recommended. ... -
Page 16: Change Password
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (4) Change Password 03 Your password has been changed complete. 01 Once press the setting icon and then click password icon in the menubar. 02 Enter the new password. -
Page 17: Application Function Explanation
CHAPTER 03 Application function explanation App Function App Function Command Explanation Setting Mobile image saving Change of S c re e n q u a l i t y t o b e re c e i v e d i s Still shot saving ... - Page 18 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (1) Setting window On/Off (2) Mobile image saving Icon Explanation Icon Explanation Icon to start video recording Setting Icon * Once press this video recording icon, the icon turns red and video * Once press this setting icon, the setting window appears like the image below. recording begins. Once press the video recording icon once more time, the video recording ends. Icon under video recording * The saved mobile image can be found in APPBOT folder of the smartphone gallery.
- Page 19 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (3) Still shot saving (4) Battery state Icon Explanation Icon Explanation Icon to save a still shot Icon that shows a state on charging * Once press this icon, the still shot is saved into smartphone as PNG file. A state that is lack of battery the robot says "low battery" on battery low. * If the battery capacity is lacking, a voice by “Low Battery “ is produced from the robot. It shows a battery’s charging state. *The state by stages is as follows. Once enter a gallery, the photo saved in the folder called APPBOT can be seen.
- Page 20 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (5) Screen quality setting (6) App information App Version : v1.23 Connection Info : Internet RobotVer 1.20 Connection Method : 0x8147 Connection Status 1 : N_16.2 L_18.8 D_29.1 Connection Status 2 : D0 B4260 01 It is an icon that can set the screen quality to transmit to 01 It is an icon to verify information about the app. smartphone. Icon Explanation Icon Explanation App information icon Low screen quality, but transmission speed is relatively fast - The following information can be verified. • App version information • Network connection information High screen quality, but transmission speed is relatively • Connection state information slow * Once press this screen quality setting icon, the screen quality is changed gradually.
- Page 21 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (7) Face recognition tracking (8) Gallery 01 It is an icon to recognize and track a face. 01 It is an icon to identify the captured image and video. Icon Explanation Icon Explanation Icon to identify the image and video Face recognition tracking function turned off Face recognition tracking function turned on * Once press this icon, the face tracking begins. It recognizes a face so the robot will follow. * This function recognizes a human face but does not distinguish a human face.
- Page 22 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (9) Change password (10) Alraming of motion detection 01 Password changed of robot. 01 Function to alarm to user when detecting motion. Icon Explanation Icon Explanation Password setting icon Alarm OFF Alarm ON...
- Page 23 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (11) Automatic charging function 01 It is function to automatically dock on the charging station In case there is a charging station (option) 02 Once the automatic charging function begins, STOP icon will activate like the above image. Once touch STOP icon, the automatic charging can be cancelled. Icon Explanation Automatic charging icon * Once press this icon, it moves to the charging station and docks automatically. Stop charging Icon * Once press this icon, the charging process is cancelled. Moving down Icon * Once press this icon, it stops the charging and move down from the station. * The robot will alarm on when to charge through screen. * The recommended distance between the robot and the charging station is less than 1m .
-
Page 24: Joy Stick Activation/ Non-Activation
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET How to manipulate joy stick (12) Joy stick activation/ non-activation 01 It is a joy stick to manipulate the product’s head part up and down. 01 It is an icon to activate and non-activate the joy stick function. Once move up and down in the pressed state, the product’s head moves up and down. Icon Explanation Non-activated Activated 02 It is a joy stick to manipulate the product’s mobile part back and forth, right and left. Once touch the part of the desired direction in the robot moves in that way. ... - Page 25 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (13) Both directions audio ② Audio transmission ① Audio reception 01 Tap the speaker icon ok the setting window. 01 Once say after pressing the mike icon was pressed, a voice is Once tap, a mike-shaped icon appears in the central lower end like produced through the mike in the robot. the picture. 02 It is only possible to use with audio function was turned on. 03 Audio transmitted from the robot is not received in a state the Icon Explanation mike was pressed. Audio function has been turned off, Icon Explanation Voice of the robot is not received. Voice transmission icon * It is an icon to transmit audio from smartphone to robot. Audio function has been turned on, * Voice can be delayed or cut depending on communication Voice of the robot is received. environment. ...
- Page 26 LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (14) Stand up from overturn (15) LED Light On/ Off 01 It is function to make him stand up when the robot falls backwards. 01 It is function to turn on LED of the robot in the dark. Icon Explanation Icon Explanation LED off Icon to stand up from falling forwards LED on...
-
Page 27: Appendix
CHAPTER 04 Appendix Product specification Product specification (1) Specification Specification Specification & Components Product’s external appearance • Image Sensor : Full HD Problem • Capture Image : Full HD settlement • Resolution : HD(MAX) • Light : White LED, Luminauns Intensity(12,000 mcd) • Neck Tilt angle : 120 degree • Battery : Lithium-ion polymer battery (1,200mAh) • Wireless usb adapter : 2.4Ghz, IEEE 802.11b/g/n, 150Mbps • Support OS : Android 4.1 and later, IOS v6 or higher • Operating Temperature : 0~ 50 ℃ • Operating Conditions : For indoor use only... -
Page 28: Product's External Appearance
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET (2) Product’s external appearance 49mm 57mm 90mm 152mm 108mm 88mm 145mm... -
Page 29: Problem Settlement
LINK AppBot Wi-Fi CONTROLLED ROBOT THROUGHT INTERNET Problem settlement In case of a problem on the system, solve the problem ASAP referring to the table below. Please follow the guide below. Problem Measures - Sufficient charging is necessary before turning on the power supply. Power supply of appbot LINK is not - Charge over 30 minutes then turn on the power supply again. turned on. When booting initially, APPBOT-XXXXXX - Re-boot the product and press Reset then try again. network is not searched. When connecting to a network, appbot - Confirm whether the wireless router to connect appbot LINK works LINK is not connected to the internet. with the internet. - Tray again after confirming the password of the wireless router. It is not connected after moving to an - It is not connected if the connected wireless router is not around there. installation place. - It should be installed again in the same way of the initial product installation. No sound even if turning on the both - Modulate the volume of in smart device. ... - Page 30 Varram System Co., Ltd. Head Office [306-230] Rm 203 Venture Town, 105, Sinildong-ro, Daedeok-gu, Daejeon, Korea E-mail master@appbot.co.kr Tel +82-70-8797-8925 Homepage www.appbot.co.kr...
