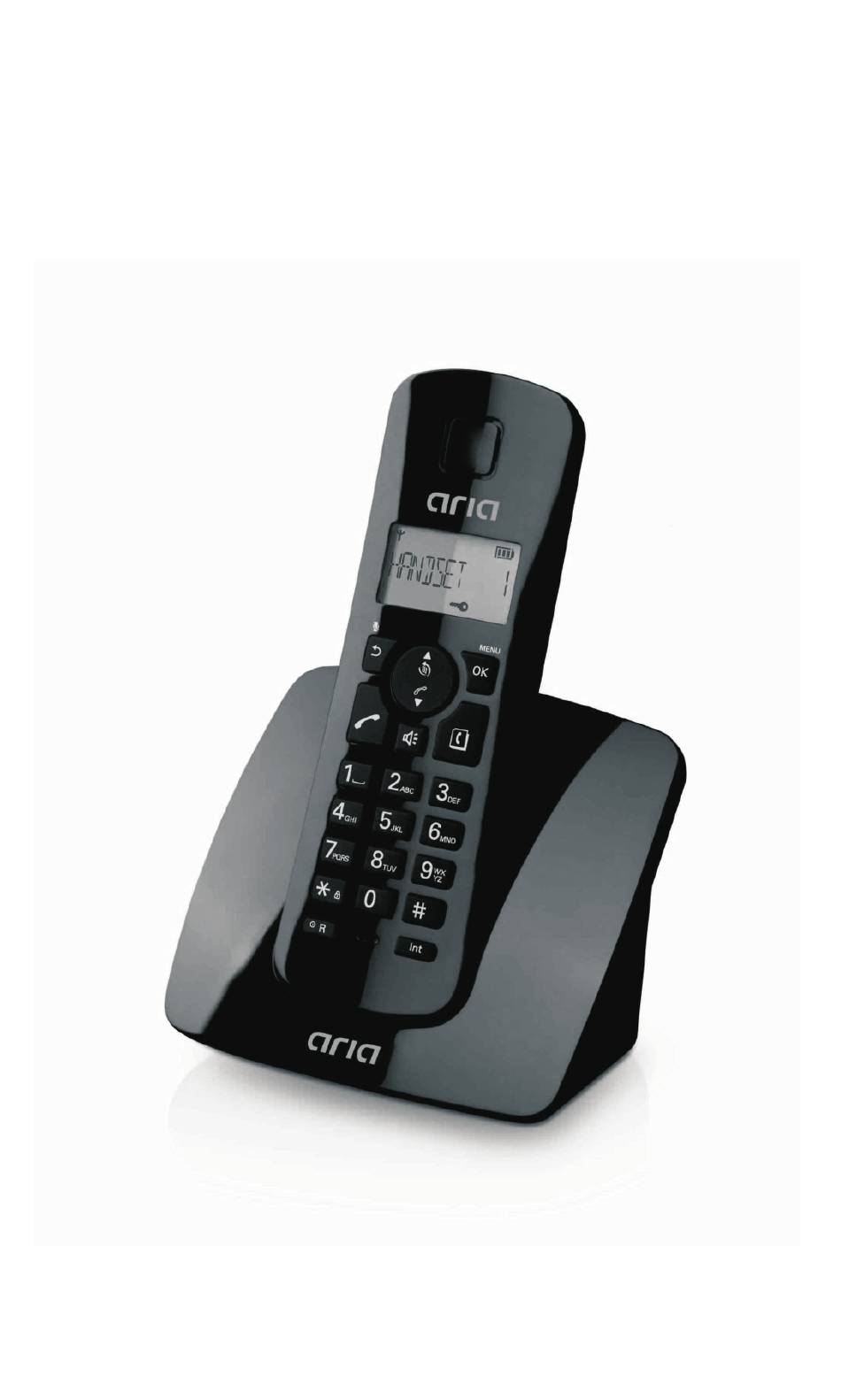

AP-3000D DECT Cordless Phone
Warning: Charge the handset for 24 hours before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-3000D and is the answer not in the manual?

Questions and answers

Summary of Contents for Aria AP-3000D

  • Page 1 AP-3000D DECT Cordless Phone Warning: Charge the handset for 24 hours before use.

  • Page 2: Table Of Contents

    Contents General Instructions ..........User Controls ............Setting Up ..............Important information ..........Contents of package ..........Connecting the base station ........Replacing the batteries ..........Charging the batteries ..........Setting the dial mode ..........Setting the day and time ........... Normal Use ...............
  • Page 3 Calling Line Identification (IdentiCall subscription required) ......The list of callers ............Storing a number from the list of callers into the phonebook ..........Deleting individual numbers from the list of callers .. Deleting the entire list of callers ....... Recall ...............

  • Page 4: General Instructions

    General Instructions Rechargeable batteries When replacing the batteries, use rechargeable AAA Ni-MH 1.2 Volt batteries of at least 300mAh. Replacement batteries are available from the retailer where you purchased your phone. Do not throw batteries in a fire or immerse them in water. Should the handsets become warmer when charging there is no cause for alarm, as this is quite normal.
  • Page 5 Choose a central location for your base station. For maximum range the base station should be placed in the centre of the area in which you would like to use your handset. Temperature and ambient conditions Your telephone is designed for indoor use and an operating °...

  • Page 6: User Controls

    User Controls Handset 1. Clr. / Mute button 2. Menu / OK button 3. Redial / Up button 4. Calls list / Down button 5. Phonebook / Exit button 6. Handsfree button 7. Call button 8. Keypad lock button 9. Internal calls button 10.

  • Page 7: Setting Up

    Setting Up Important information NOTICE: Before switching on, please read the general instructions at the beginning of this manual. Contents of package The package contains: Base station, one handset, two batteries, one power adaptor with power cord, one telephone line cord, and this instruction manual. Back View Connecting the base station Set-up your telephone’s base station within reach of a telephone socket...

  • Page 8: Replacing The Batteries

    Replacing the batteries When replacing the batteries, use rechargeable AAA Ni-MH 1.2 Volt batteries of at least 300mAh. Replacement batteries are available from the retailer where you purchased your phone. To fit the batteries into the handset, press down on the upper edge of the battery compartment cover and slide it away from the handset.

  • Page 9: Setting The Dial Mode

    Setting the dial mode Press the MENU/OK button. Use the buttons to select SETUP. Press the MENU/OK button. Use the buttons to select DIAL MODE. Press the MENU/OK button. Use the buttons to select between TONE DIAL or PULSE DIAL. Press the MENU/OK button. Press the button to return to standby.

  • Page 10: Normal Use

    Normal Use The display During normal operation, the display shows HANDSET 1 or the time. In standby mode, press and hold 0 to switch handset idle screen between handset name or time. The default name can be re-programmed any time, see chapter 7.5. Flashes to indicate an incoming external call.

  • Page 11: Receiving Incoming Calls

    Flashes to indicate new calls list entries received. Answered call (when viewing the Calls list). Unanswered call (when viewing the Calls list). Keypad is locked. Displayed number is longer than 12 digits. Flashes when battery is low. Receiving incoming calls When you receive an external call, the handset will emit a ring signal, EXT flashes and the handset display shows the callers telephone number (Identicall subscription required).

  • Page 12: Dialing A Number

    Dialing a number Use the keypad to enter the desired telephone number. Up to 32 digits may be entered. The digits dialed will be shown on the display. Since the display can only display 11 digits, only the last 11 digits of longer phone numbers will be displayed. NOTICE: With Pre-dialing, if you dial the wrong digit you can briefly press the button to delete one digit at a time.

  • Page 13: Turning The Handset On And Off

    Turning the handset on and off By holding down the R button, you can turn off the handset. If the handset is turned off, there is no drain on the battery. Hold down the R button again to turn the handset back on. The handset will be ready for use after a brief delay.

  • Page 14: Redial

    3.10 Redial The redial function is especially useful if a number is engaged or the person does not answer. Your telephone stores the last ten dialled numbers. Press the button and the last number dialed will appear on the display. By pressing the button, you can display the previous number called.

  • Page 15: Deleting Individual Numbers From The Redial List

    3.10.2 Deleting individual numbers from the redial list Press the button and the last number dialed will appear on the display. Use the buttons to select the number you want to delete. Press the button. The display shows DELETE?. Press the MENU/OK button to delete the number or the button to cancel.

  • Page 16: The Phonebook

    The Phonebook Up to 50 telephone numbers and names can be stored in the phonebook. The maximum stored number length is 24 digits and name length is 12 characters. Entering numbers in the phonebook Press the MENU/OK button. The display shows PHONEBOOK. Press the MENU/OK button.

  • Page 17: Viewing A Number In The Phonebook

    To enter a space, use the 1 button. Press the 1 button twice to enter a dash. To enter the same letter twice, press the desired letter button and then wait for the display cursor to move automatically to the next position.

  • Page 18: Deleting Individual Numbers From The Phonebook

    Use the buttons to select the entry you wish to modify. Press the MENU/OK button. The display will now show the name with a blinking cursor after the last letter. The name can now be changed using the number buttons. Information on entering names can be found in 4.1.

  • Page 19: Calling Line Identification (Identicall Subscription Required)

    Calling Line Identification (IdentiCall subscription required) The calling line identification display shows the origin of incoming calls. If the data is available, the display shows the caller’s telephone number after the first ring. If the caller’s name and number is stored in your phonebook, they will be shown alternately on the display.

  • Page 20: Storing A Number From The List Of Callers Into The Phonebook

    If you wish to return a call to a number in the list of callers, simply press the button or the button to dial the number in speakerphone mode. To exit from the callers list mode, press the button. Storing a number from the list of callers into the phonebook Any number in the list of callers can be transferred directly to the phonebook.

  • Page 21: Recall

    Recall If you have connected your telephone to a PABX, you can use all the special functions such as call forwarding and automatic callback if RECALL is required to activate these services. For further information consult the supplier of the PABX. Setting the Recall time Press the MENU/OK button.

  • Page 22: Additional Functions

    Additional Functions Any additional programming functions can be accessed through a very user-friendly menu. Here is a short guideline to navigate your way through the menu of your telephone: To begin programming, press the MENU/OK button. buttons are used to search through the function groups. The group indicated on the display is selected by pressing MENU/OK.

  • Page 23: Setting Ring Melodies On The Base Station

    Press the MENU/OK button. Use the buttons to select HANDSET. Press the MENU/OK button. Use the buttons to select INT RING VOL or EXT RING VOL and then press the MENU/OK button. Use the buttons to select the desired volume level or OFF then press the MENU/OK button.

  • Page 24: Turning The Key Tone On And Off

    Press the MENU/OK button. Use the buttons to select HANDSET then press the MENU/OK button. Use the buttons to select NAME. Press the MENU/OK button. Use the button to delete the current name. Enter the desired name using the number buttons. Press the MENU/OK button to store the new name.

  • Page 25: Setting The Display Language

    Use the buttons to select between ON and OFF. Press the MENU/OK button. You can then select further menu functions or exit by holding down the button. Setting the display language Press the MENU/OK button. Use the buttons to select HANDSET then press the MENU/OK button.

  • Page 26: Setting The Alarm

    Use the buttons to select PIN CODE. Press the MENU/OK button. Enter the desired new four digit PIN number using the number buttons then press the MENU/OK button. Now confirm the change by entering the new four-digit PIN number again then press the MENU/OK button. You can then select further menu functions or exit by holding down the button.

  • Page 27: Factory Reset

    7.14 Factory reset This function can be used to reset the telephone to the factory default settings. Factory settings: Language: English Handset name: HANDSET 1 Low battery beep: On Out of range beep: On Key tone: On Auto answer: On Internal melody: 1 Internal volume: 3 External melody: 3...

  • Page 28: Menu Structure

    7.15 Menu structure Phonebook Add Entry Name? ...More Modify Entry ...More Delete Entry ...More Setup Base Volume ...More Base Melody ...More Delete Handset ...More PIN Code ...More Dial Mode Tone / Pulse Recall ...More Default ...More Eco Mode ...More...
  • Page 29 HS Settings Beep Key Tone ...More Low Battery ...More Out Range ...More Int Ring Vol ...More Ext Ring Vol ...More Int Melody ...More Ext Melody ...More Auto Answer On / Off Name ...More Language ...More Keylock? ...More Date - Time Date Set ...More Clock Set...

  • Page 30: Multiple Handsets

    Multiple Handsets Your telephone is limited GAP standard and allows a maximum of 5 handsets to be registered to the base. Any GAP compliant handset can replace a handset that is registered to your telephone. One handset needs to be de-registered from the base station first.

  • Page 31: Registering And De-Registering Handsets

    Registering and de-registering handsets 8.4.1 Registering handsets Hold down the button on the base station for 3 seconds until you hear two beeps. You now have 90 seconds to register the new handset. Press the MENU/OK button on the handset. Use the buttons to select REGISTER.

  • Page 32: Additional Base Stations

    Use the keypad to enter the number of the handset to be de- registered If de-registration is completed, you will hear a confirmation beep. The handset is now de-registered and can no longer be used with this base station. Additional base stations A number of base stations can be used to extend the coverage available to the handsets.
  • Page 33 No call can be made or received The telephone line connections are not correct or there is a fault on the line. Only use the telephone cables supplied. Use another telephone to check whether your line is in order. The power adaptor is not properly inserted or there is a power failure.

  • Page 34: Important Information

    Important Information 10.1 Technical data Standard DECT Frequency range 1880 to 1990 Mhz Power supply Base station: 220/230V, 50Hz Range Interior, up to 50m Range Line of sight, up to 300m Standby time Up to 100 hours Call time Up to 10 hours Rechargeable batteries 2 x type AAA Ni-MH 1.2 Volt Minimum 3000mAh batteries...
