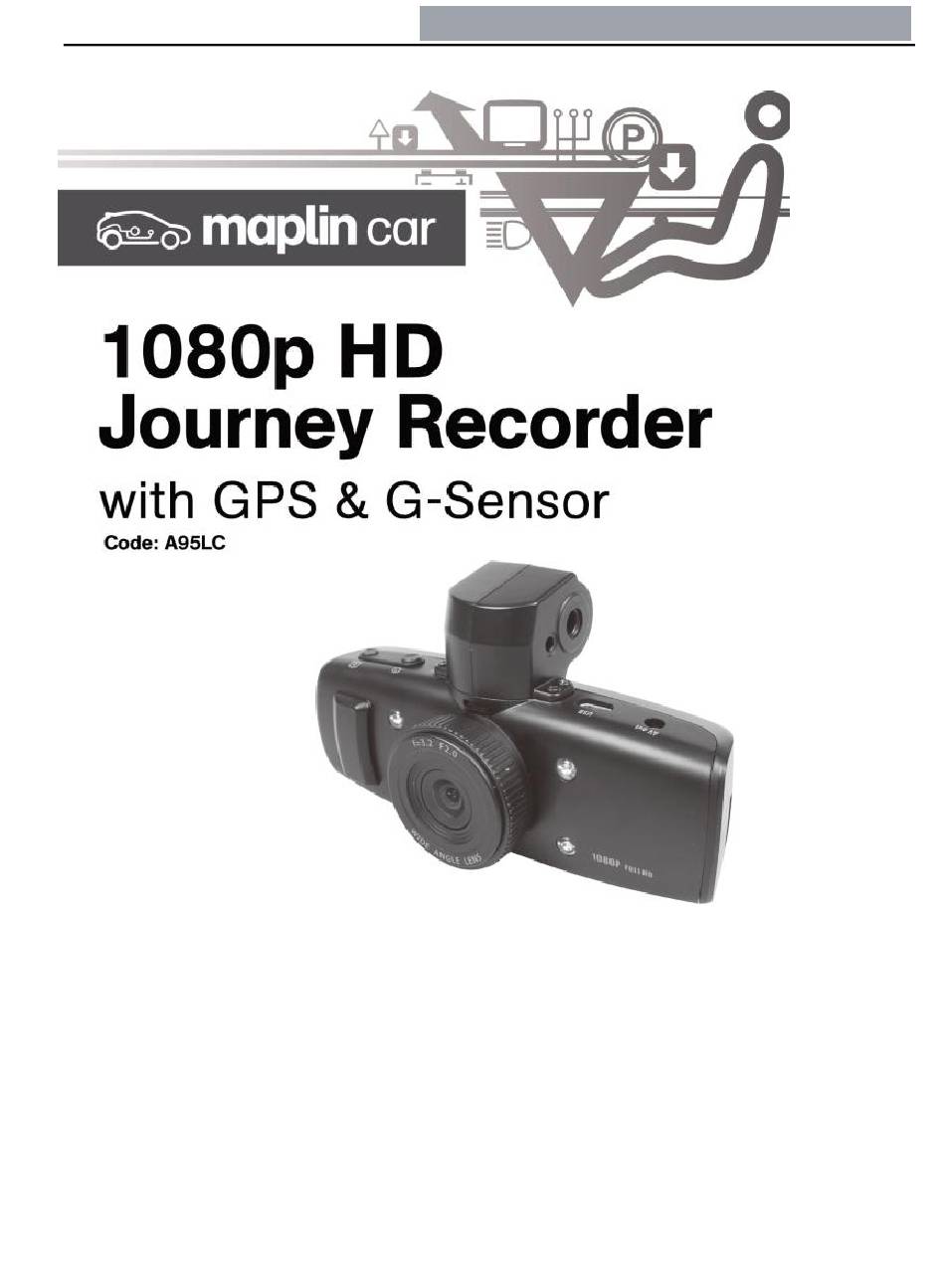

Maplin A95LC Manual

1080p hd journey recorder with gps & g-sensor

Advertisement

Quick Links

Notice:
To ensure best use of the device and battery life. When first charging, charge the unit
for 30 minutes and then unplug, leave the unit on for a minute and then re-connect and
charge for 3 hours to prime the battery.

Advertisement

loading
Need help?

Need help?

Do you have a question about the A95LC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maplin A95LC

  • Page 1 Notice: To ensure best use of the device and battery life. When first charging, charge the unit for 30 minutes and then unplug, leave the unit on for a minute and then re-connect and charge for 3 hours to prime the battery.
  • Page 2 Overview This is a digital HD (high definition) video camera recorder with the most advanced technology; this device is a common HD video camera as well as a professional driving recorder. It can record the high resolution image with the pixel as high as 1920X1080 pixels or 1080P FULL HD and take of picture of 5 mega pixels.
  • Page 3 Feature Product features: ◎ 120 degree ultra wide angle lens. ◎ 1920x1080 Full 1080P HD high quality resolution. ◎ Advanced H.264 video compression technology. ◎ 5 mega pixels. ◎ 4X digital zoom, ranges from 12cm to limitless distance. (Works at 1280x720) ◎...
  • Page 4 ◎ Maximum 32GB or even bigger SD high capacity storage device. Structure REC/OK Button Up/Rewind/Volume+ Up/Rewind/Volume+ /LOCK Mode Button Down/forward/Volume- Power/IR light USB Socket Snap/Delete AV OUT SD Slot HDMI-OUT IR Light Speaker Reset Lens...
  • Page 5: Key Functions

    Key Functions MODE Shift Key: to shift video recording, photographing and review mode, system settings. To lock or unlock the file during recording. Capture Key : In the video recording mode, press the capture key, you can capture the current video resolution size of the pictures in preview mode, press the capture key, turn to photographic mode, can take the set resolution photos, and then automatically return to the video recording mode.
  • Page 6: Operation

    Operation  Load and unload the battery 1. Battery indicators as below: Full Half Empty  Battery Recharge 2. This device can be charged through the USB port of your computer. Using the supplied USB to Micro USB cable or via the In Car charger provided. ...
  • Page 7 Operation Operation  Camcorder Mode 1. Press REC button to start the video recording, and then press REC button to stop the video recording. During the process, red icon will flash on the screen. 2. Select IR light: Choose the mode of IR light in the status of video recording by pressing right key. The sequencing will be forced light , 、automatic light 、...
  • Page 8 Operation Operation Stamp: Video recording/pictures whether add into the time and date, customer logo and speed info. Date:Use up or down key to change the digits and press OK to go to next item. Auto LCD off Time : set the time auto turn off the LCD screen; press any key to wake up the LCD screen.
  • Page 9: Specifications

    Specifications Sensor 5M CMOS Sensor,1/2.5" light-sensing surface area Lens 4 fixed focus Lens, aperture 2.0, focus 3.4mm Zoom 4X digital zoom LCD display 1.5 inches 4:3 TFT LCD AV (CVBS) terminal: composite TV signal output NTSC/PAL High definition TV terminal interface: HDMI signal output. Video output Max 1920X1080i50 or 1920X1080i60 Picture...
  • Page 10 What I can do if the new product without power, or can’t charge power? To Ensure best use of the device and battery life. When first charging, charge the unit for 30 minutes and then unplug, leave for a minute while on and then charge for 3 hours to prime the battery.
  • Page 11 (2) Play the video Double-click the “Player.exe”,select the file and play it.  Video or pictures are blurry. Please clean the lens and make sure the windscreen is clean as well.  IR lights cannot be used. The battery might be low.
  • Page 12  Horizontal lines interruption in the image This is caused by the light source is wrongly set, please set as 50Hz or 60Hz according to the local power supply frequency. WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or general waste.
