INSTALLATION INSTRUCTIONS

10000 Series

Description:

Offset Top Hung Bi-Fold

Function:

Bi-Folding Entrance

As of: 06/25/2020

Page-01

Need help?

Do you have a question about the 10000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arcadia 10000 Series

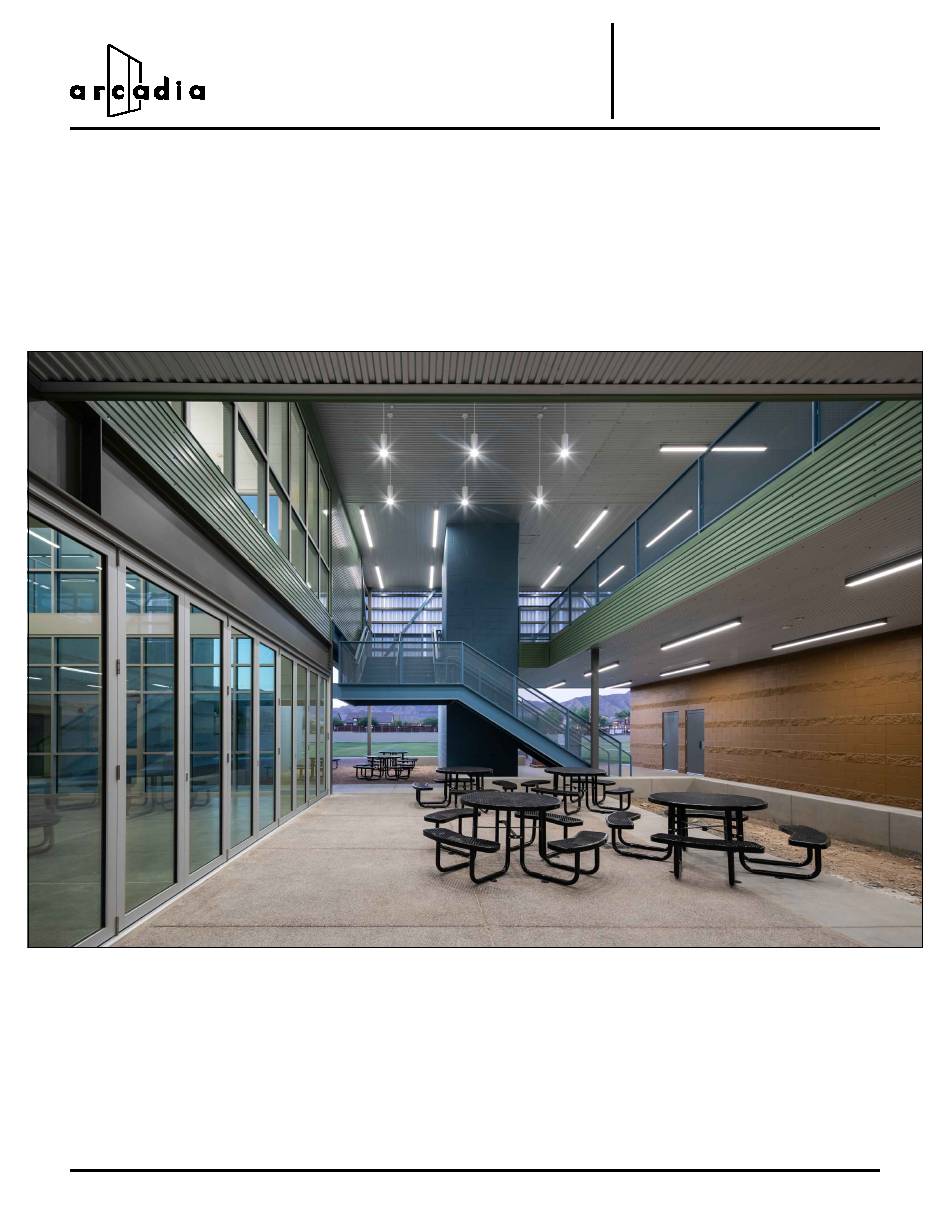

Page 1 10000 Series Description: Offset Top Hung Bi-Fold INSTALLATION INSTRUCTIONS Function: Bi-Folding Entrance Page-01 ® 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 2 PRODUCT TO BE CHECKED WITH PACKING LIST TO ENSURE THERE IS NO MISSING ITEMS UPON OPENING CRATES. ANY & ALL DAMAGES AND/OR MISSING ITEMS NEED TO BE REPORTED TO ARCADIA, INC. IMMEDIATELY. PRODUCT NEEDS TO BE STORED IN DRY & SAFE AREA UNTIL INSTALLATION TIME TO AVOID DAMAGING OF MATERIAL.
Page 3 WARRANTY & MAINTENANCE ARE INCLUDED IN THIS PACKET. MAINTENANCE OF DOOR SYSTEM IS REQUIRED PER HARDWARE MANUFACTURE. FAILING TO FOLLOW THE ARCADIA, INC. ASSEMBLY METHOD, INSTALLATION & MAINTENANCE WILL VOID THE MANUFACTURE WARRANTY. ALL VISIBLE DEFECTS & DAMAGE MUST BE REPORTED TO ARCADIA, INC. BEFORE INSTALLATION & FINISHING OF BI-FOLDING DOOR SYSTEM.
Page 4 SUPPORTING STRUCTURE ABOVE DOOR IS STRONG ENOUGH TO SUPPORT THE LOAD. FASTENERS FOR HEAD ATTACHMENT ARE NOT SUPPLIED BY ARCADIA, INC. AND ARE BY OTHERS. FASTENER SIZE & TYPE ARE TBD PER HEAD STRUCTURE MATERIAL USED ON JOB. ALL DIRT, METAL SHAVINGS &...
Page 5 STEP 14 STEP 15 STEP 16 STEP 17 STEP 18 STEP 19 STEP 20 DRILL HOLE PLACEMENT CONFIGURATION CHART WARRANTY ????? 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 6 FOR HEAD & SILL ASSEMBLY OS10ASTGL GM-1249 ASTRAGAL HINGED NAIL FIN BF016042 GM-1981 157" LONG HINGED DRIP CAP CHANNEL NAIL FIN POLYPRO INSERT 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/30/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 7 POLYWEDGE GASKET SETTING BLOCK TREMCO PROGLAZE TREMCO PROGLAZE PS1875TAPE TREMCO " POLYSHIM II SSG SEALANT SSG SEALANT GLAZING STOP BUTYL SPACER TAPE 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 8 HOLES TO BE DRILLED IN CENTER OF LOCKING CHANNEL 16" CL TO CL 16" CL TO CL 16" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 9 ONE SCREW TO BE PLACED EVERY 16" ON CENTER STARTING AT EACH END WORKING TOWARDS MIDDLE. HOLES TO BE DRILLED IN CENTER OF U-CHANNEL 16" CL TO CL 16" CL TO CL 16" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 10 ONE SCREW TO BE PLACED EVERY 16" ON CENTER STARTING AT EACH END WORKING TOWARDS MIDDLE. HOLES TO BE DRILLED IN CENTER OF U-CHANNEL 16" CL TO CL 16" CL TO CL 16" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 11 CENTER OF TRACK GUIDE 12" CL TO CL 3" CL TO CL 3" CL TO CL 3" CL TO CL 3" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 12 ONE SCREW TO BE PLACED EVERY 24" ON CENTER STARTING AT EACH END WORKING TOWARDS MIDDLE. HOLES TO BE DRILLED IN CENTER OF LOCKING CHANNEL 24" CL TO CL 24" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 13 EQ SPACED NOT MORE THEN 16" CL TO CL EQ SPACED NOT MORE THEN 16" CL TO CL 6" EDGE TO CL 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 14 JAMB STOP ENDS TO GET SEALANT STOP REGLET BEFORE SNAPPING IN JAMB STOP TO SEAL PRIOR TO SNAPPING TO JAMB JOINT BETWEEN. 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 15 #10-12 x 2" FHSMS FRAME ASSEMBLY SCREW SUPPLIED BY ARCADIA, INC. #10-12 x 2" FHSMS FRAME ASSEMBLY SCREW SUPPLIED BY ARCADIA, INC. 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 16 SITE & OPENING CONDITIONS WILL ALWAYS VARY ON A PER JOB BASIS &SHOULD BE REVIEWED BEFORE THIS STEP IS PERFORMED. THIS OPTIONAL NON-INTERGRAL FINISHING FIN SUPPLIED BY ARCADIA, INC. SHOULD BE USED IN CONJUNCTION WITH STANDARD WEATHER RESISTANT BARRIERS, COMPATIBLE SEALANTS & OTHER NECESSARY FLASHING. CONSULT WITH JOB SITE WEATHERPROOFING EXPERT.
Page 17 ANCHOR LOCATION ANCHOR LOCATION 3" 3" PLACE SHIMS 3" IN FROM EACH END TO HELP PREVENT HEAD TRACK ROLLING AT CORNERS 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 18 ATTACH TOP HEAD TRACK TO OPENING HEADER. ARCADIA, INC. RECOMMENDS THAT THE HEAD TRACK BE ANCHORED SO IT CROWNS IN THE MIDDLE UP 1/8" FROM THE LEFT & RIGHTS SIDES. THIS IS TO ALLOW FOR STRUCTURAL MOVEMENTS & ANY POSSIBLE SAGGING OF THE DOOR HEAD TRACK.
Page 19 ALL SETS SHOWN WITH HINGE TYPE H. NO FINISHES SHOWN. BWS1-100H BWS2-100SH BW216H BW215H BW219H BW220H BW3-100H BW5-100H BW6-100H BW7-100H BWS4-100SH 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 20 TO ALLOW LOADING OF BOTTOM GUIDES LEGS NOTCHED AT END & PIVOT SET TO ALLOW LOADING OF BOTTOM GUIDES & PIVOT SET 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 21 WIND JAMB PIVOT BOLT IN OR OUT UNTIL MOUNT IT ALIGNS WITH HINGE ON PANEL AFTER TOP & BOTTOM PIVOT ARE SET 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 22 SCREW POSITION ON END SET & PIVOT HINGES ANTI-SHAKE SET/GRUB SCREW PREVENTS PIN BEING REMOVED FROM HINGE LOCK OFF BOTH SET/GRUB SCREWS 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 23 FIX END PANEL TO THE END HANGER ATTACH END GUIDE TO END PANEL, CLOSE ALL PANELS BRING END PANEL TO HINGE SET 7 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 24 OF THE BOTTOM PIVOT. .25 (=) .25 (=) CHANNEL COVER COVER PANEL PANEL PANEL ALIGN MARK MARK THE POSITION OF THE BOTTOM PIVOT MARK 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 25 TO UNLOCK BI-FOLDING DOORS. TURN THE HANDLE FROM THE 6 O'CLOCK POSITION TO EITHER THE 3 O'CLOCK OR 9 O'CLOCK POSITION. NOTE: DO NOT FORCE HANDLES WHEN OPERATING AS CAN DAMAGE. 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 26 CENTERLINE OF HOLE @ 2" FROM BOTTOM OR TOP DOOR EDGE MAGNETIC DOOR CATCH " " " " " 2" " " 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 27 ON PANEL CONFIGURATION FROM BOTTOM OR TOP DOOR EDGE MAGNETIC DOOR CATCH " OR 2" " " " 2" " " 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 28 " PP0777 EXTERIOR EXTERIOR ACTIVE DOOR CLOSING TO FREE SWING END PANEL ACTIVE DOOR CLOSING TO FOLDING END PANEL WITH HANGER 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 29 NOTE: IF A BI-FOLD OPENING HAS A SINGLE ACTIVE SWING DOOR NEED TO ENSURE ITS SECURED ONCE IN OPEN POSITION. IF NOT SECURE IT CAN RESULT IN DAMAGE IF DOOR FORCED BACK AGAINST JAMB BY WIND OR OTHER FORCE. 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 30 NOTE: DO NOT PULL/DRAG DOOR PANELS FROM LEVER HANDLE ON ACTIVE DOOR TO CLOSE. THIS WILL CAUSE DAMAGE TO LOCK, DOORS & NOT OPERATE SMOOTHLY. 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/25/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
Page 31 " INTERIOR EXTERIOR " x " OBLONG HOLE EDGE OF DOOR " " FINISHEDFLOOR / EDGE OF DOOR TOP OF TRACK 10000 SERIES INSTALLATION INSTRUCTIONS.pdf As of: 06/26/2020 JWeller Z:\01 UPDATED FILES\01 CAD\02 ENTRANCES\03 BIFOLD\10000 SERIES\INSTALL INSTUCTIONS\10000 SERIES INSTALLATION INSTRUCTIONS.DWG...
