SCA-7P-HDD: ALL TO HDMI CONVERTER BOX
INSTRUCTION MANUAL
SCA-7P-HDD All to HDMI Converter Box Series
Thank you for purchasing the SCA-7P-HDD All to HDMI Converter Box. You will fi nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use the Converter Box.
Advertisement
Related Manuals for KVMSwitchTech SCA-7P-HDD
Summary of Contents for KVMSwitchTech SCA-7P-HDD

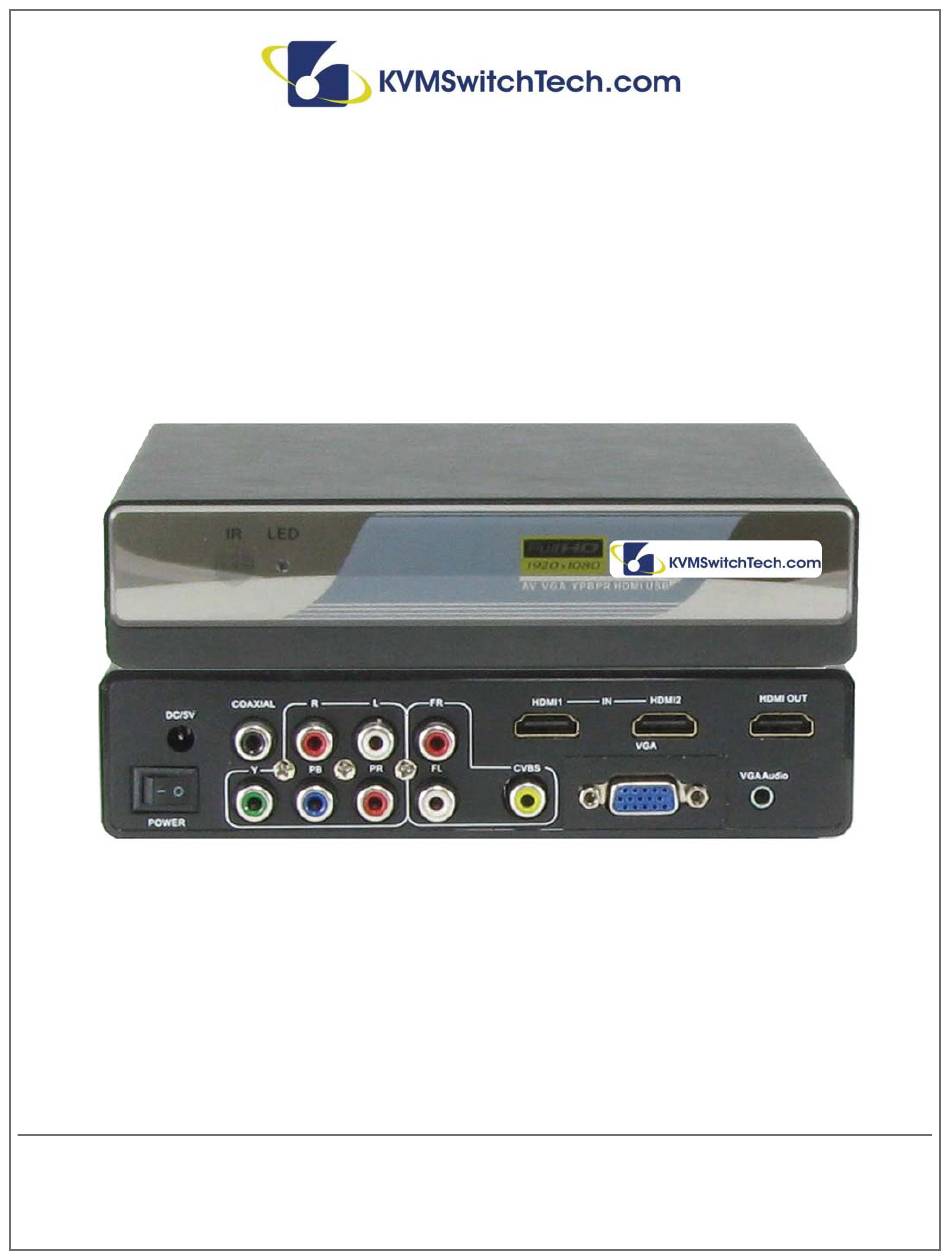

- Page 1 SCA-7P-HDD All to HDMI Converter Box Series Thank you for purchasing the SCA-7P-HDD All to HDMI Converter Box. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the Converter Box.
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
Set-top box, PC and USB device etc. video sources. All inputs will be converted to high defi nition output. Excellent picture quality provided by the integrated noise reduction, advanced color process engine, dynamic luminance control, gamma control and 3D video decoder features. PACKAGE CONTENTS 1. SCA-7P-HDD All to HDMI Converter Box 2. Remote 3. User Manual... -
Page 4: Features
• Capture USB picture and save as user defi ned logo • Volume control • Remote control • Standby mode • SCA-7P-HDD Input cards INPUT FORMATS • CVBS: PAL, NTSC, SECAM with stereo audio input • YPbPr:1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p with stereo audio input •... -
Page 5: Settings
SETTINGS REMOTE CONTROLLER Power: Enter standby mode or re-enter normal mode Source: Pop up source menu, press Up/Down button to select and press OK button to enter USB: Enter USB source directly Picture: Soft, Standard, Bright and Personal picture mode selection Ratio: Adjust display ratio, -5% to +5% range can be set Navigation buttons: Left, Right, Up and Down to navigate menu items or USB media fi... - Page 6 SETTINGS MAIN MENU General control 1. Press Left/Right button to select Soft, Standard, Bright or Personal picture mode 2. Note that only Personal picture mode settings can be adjusted, others are pre-set modes 3. Press Up/Down button to select menu item 4.
- Page 7 SETTINGS CONTROL FOR GEOMETRY MENU 1. Press Left/Right button to do Auto adjust 2. Note that Auto adjust will be done automatically when VGA source timing changed 3. Press Up/Down button to select menu item 4. Press Left/Right button to adjust 5.
- Page 8 SETTINGS USB MENU General control 1. Press USB button directly or select USB from source menu to enter USB device playback mode 2. Press Menu button to pop up media type selection menu 3. Press Up/Down button to set which type of media to play 4.
- Page 9 SETTINGS PICTURE PLAYBACK CONTROL Slide show Zoom in Pause Zoom out Previous Move Next Repeat Stop Brightness Rotate clockwise Contrast Capture and save as Rotate anti-clockwise logo Background music...
- Page 10 SETTINGS AUDIO PLAYBACK CONTROL Play Next Pause Stop Fast Backward Repeat Fast Forward Mute Previous Media fi le information...
- Page 11 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM SWITCH TECH, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
