Acument Avdel T30 Instruction Manual

Installlation tool, hydro-electric power tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

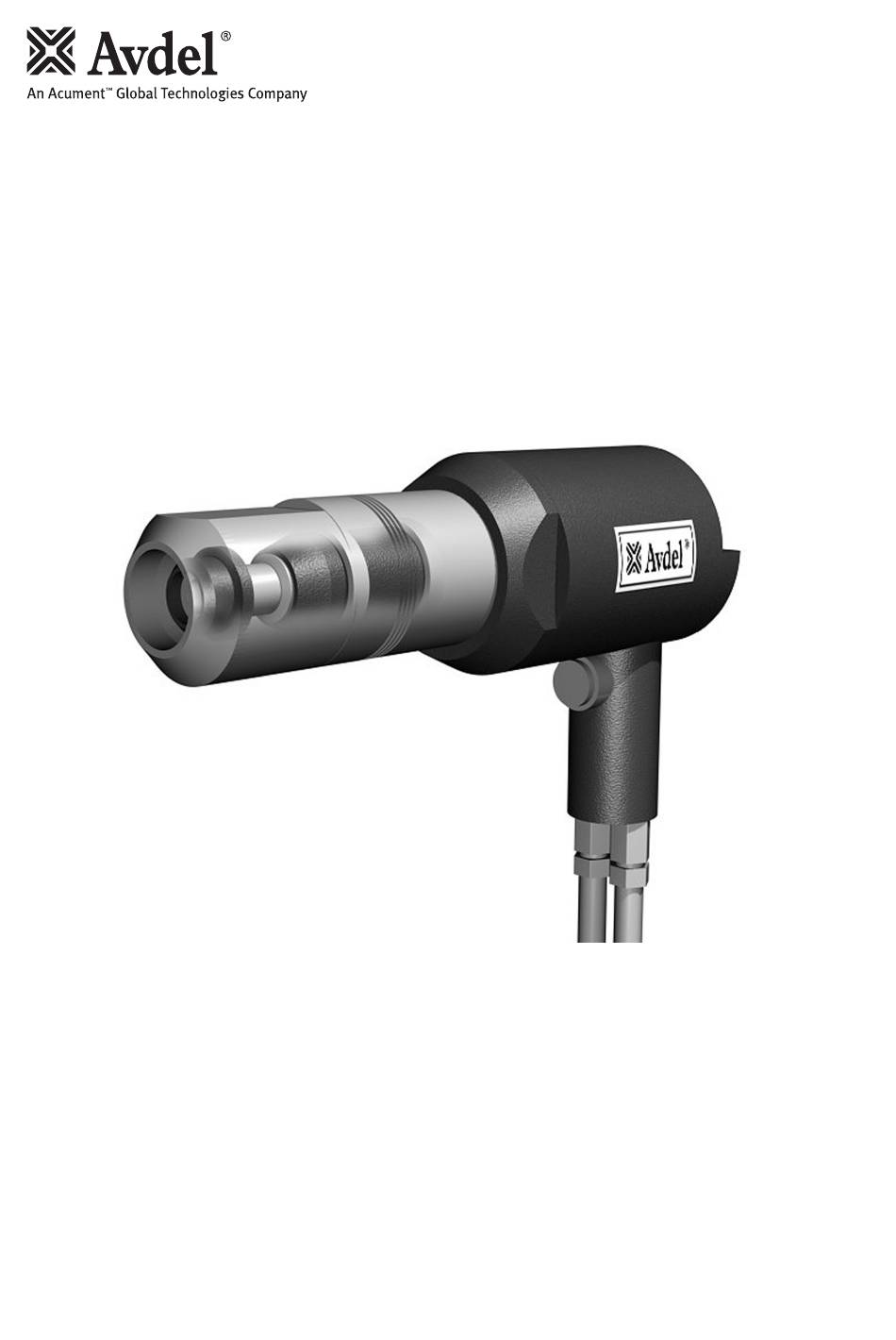

I n s t r u c t i o n M a n u a l
T 3 0 I n s t a l l a t i o n To o l
H y d ro - E l e c t r i c P o w e r To o l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avdel T30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acument Avdel T30

  • Page 1 I n s t r u c t i o n M a n u a l T 3 0 I n s t a l l a t i o n To o l H y d ro - E l e c t r i c P o w e r To o l...

  • Page 3: Table Of Contents

    C o n t e n t s Safety Servicing the Tool Daily / Weekly Specifications Every 1200 Working Hours (at least once a year) Intent of Use Service Tools Tool Specification Hydraulic Oil General Safety Data Tool Dimensions Fault Diagnosis Putting into Service Symptom, Possible Cause &...

  • Page 4: Safety

    S a f e t y This instruction manual must be read with particular attention to the following safety rules, by any person installing, operating, or servicing this tool. Do not use outside the design intent. Do not use equipment with this tool/machine other than that recommended by Avdel UK Limited. Any modification undertaken by the customer to the tool/machine shall be the customer’s entire responsibility.

  • Page 5: Intent Of Use

    S p e c i f i c a t i o n s I n t e n t o f U s e The T30 Installation Tool is basically a Piston and Cylinder Assembly. When coupled Hydraulically and Electrically to a compatible Hydraulic Power Source and the relevant Nose Assembly is attached, it is then used to install No.

  • Page 6: Principle Of Operation

    M a i n t e n a n c e IMPORTANT Read the safety rules on page 4 carefully P r i n c i p l e o f O p e r a t i o n When both hoses and control cord are connected to the Hydrapac, the pull and return cycles of the tool are controlled by depressing and releasing the trigger switch located in the handle respectively.
  • Page 7 IMPORTANT Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease. F i t t i n g I n s t r u c t i o n s N30 for No. 19 ( ") Fasteners Ensure the installation tool piston rod is in the fully forward position.
  • Page 8 IMPORTANT Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease. F i t t i n g I n s t r u c t i o n s N31 for No. 16 ( ") Fasteners Ensure the installation tool piston rod is in the fully forward position.
  • Page 9 IMPORTANT Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease. F i t t i n g I n s t r u c t i o n s N32 for No. 13 ( ") Fasteners Ensure the installation tool piston rod is in the fully forward position.
  • Page 10 IMPORTANT Nose assembly parts must be assembled clean and dry. Do Not lubricate with oil or grease. F i t t i n g I n s t r u c t i o n s N35 for No. 19 ( ") Fasteners Ensure the installation tool piston rod is in the fully forward position.

  • Page 11: Dismantling Instructions

    M a i n t e n a n c e D i s m a n t l i n g I n s t r u c t i o n s IMPORTANT Be sure the Hydrapac is turned off before removing tool or nose. •...

  • Page 12: General Assembly Of T30 Installation Tool

    G e n e r a l A s s e m b l y f o r T 3 0 I n s t a l l a t i o n To o l...

  • Page 13: Parts List For T30 Installation Tool

    P a r t s L i s t f o r T 3 0 I n s t a l l a t i o n To o l...

  • Page 14: Servicing The Tool

    S e r v i c i n g t h e To o l D a i l y • Check for oil leaks. • Check the stroke of tool. • Check for worn anvil indicated by score marks on the installed collar. This can also be confirmed by referring to the installed data in the fastener catalogue.

  • Page 15: Fault Diagnosis

    F a u l t D i a g n o s i s S y m p t o m P o s s i b l e C a u s e R e m e d y P a g e R e f Tool fails to operate Inoperative Hydrapac...
  • Page 16 F a u l t D i a g n o s i s S y m p t o m P o s s i b l e C a u s e R e m e d y P a g e R e f Jaw segments do not Improper operation of jaw Check internal parts of the...
  • Page 17 N o t e s...
  • Page 18 N o t e s...
  • Page 19 D e c l a r a t i o n o f C o n f o r m i t y We, Avdel UK Limited, Watchmead Industrial Estate, Welwyn Garden City, Herts, AL7 1LY declare under our sole responsibility that the product: Model: T30 Serial No.
  • Page 20 Tel: +82 31 798 6340 Email: info@acument.com.au Email: AvdelDeutschland@acument.com Fax: +82 31 798 6342 Email: info@acumentkorea.com CANADA ITALY Avdel Canada, a Division of Acument Avdel Italia S.r.l. SPAIN Canada Limited. Avdel Spain S.A. Viale Lombardia 51/53 87 Disco Road 20047 Brugherio (MI)
