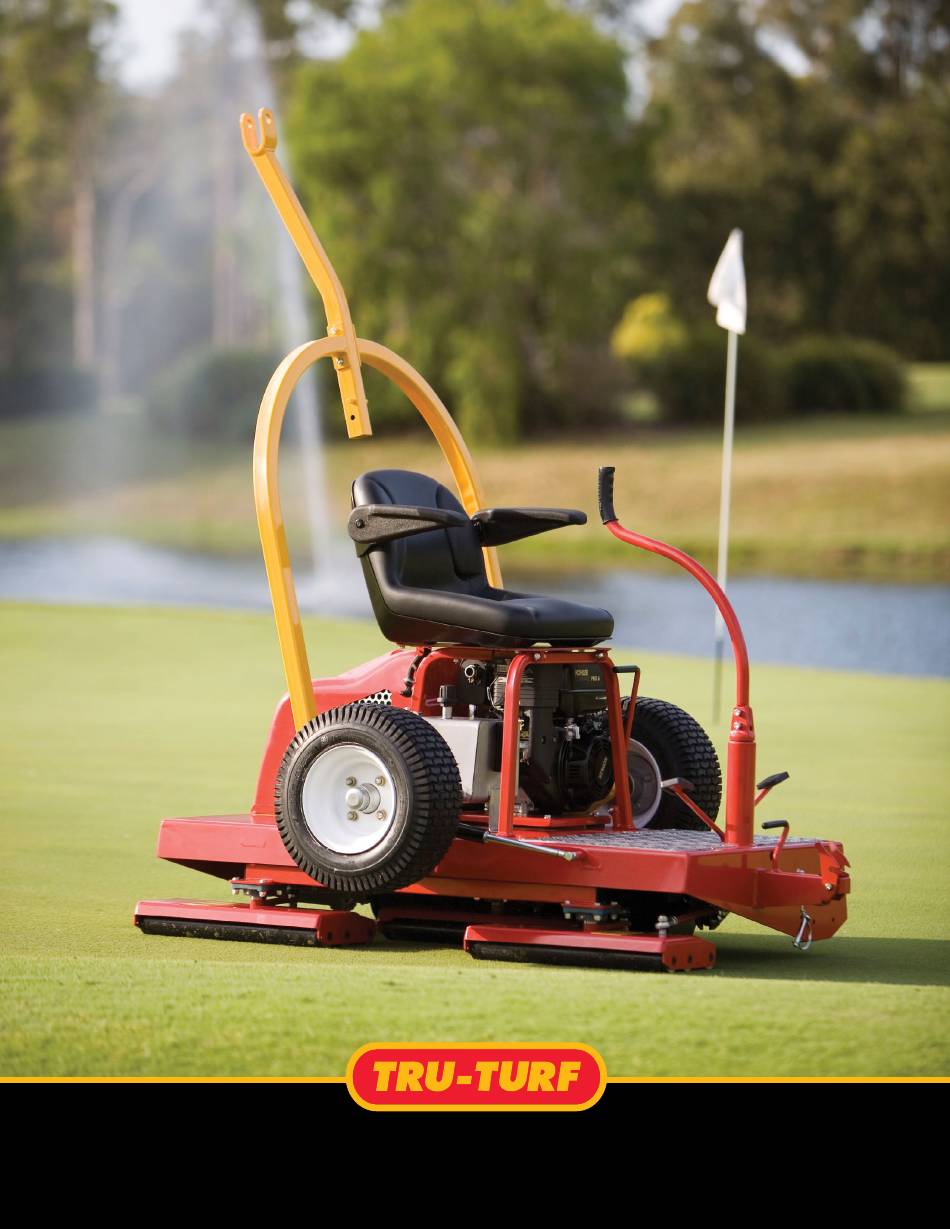

- Page 1 R52-11TC GOLF ROLLER MANUAL...
-
Page 2: Table Of Contents
Roller will not move one or either way Roller will not steer Roller has excessive vibration Smoothing rollers seized Rubber drive roller will not rotate Machine Components 38. Labels Parts List Separate Engine Owners Manual Included TRU-TURF R52-11TC Golf Greens Roller Manual... -
Page 3: Important
Greens. The following operation and maintenance manual has been prepared for use with the R52-11TC Golf Green Roller. It is intended as a guide and 1. Pre-check all nuts, bolts, grub screws for tightness supplemental updates to the manual may take place at a prior to operating machine. -
Page 4: Safety Information
Tru-Turf Pty. Ltd. will either repair or replace any item loose clothing away from rotating shafts, chains and or part of a Tru-Turf Pty. Ltd. Golf Greens Roller that is any item that has been damaged by accident, lack sprockets in the transmission area. If hair, clothing or... - Page 5 18psi. Do not exceed this pressure. The tires act as the suspension, hence the low P.S.I. • Locate the trailer arm support axle 30 mm in diameter (1¼”) which extends out on the right side of the TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
-
Page 6: Assembly
TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual... -
Page 7: Park Brake
Ensure the park brake is released prior to operating replace the faulty bearings. the roller, if not irreparable damage to the rubber on the drive roller will occur. TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual... -
Page 8: Change Engine Oil
• If engine is at fault contact your nearest engine agent for rectification • If the transmission is at fault, repair or replace as TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual... - Page 9 Operating Positions Upper Body Towing Position Rolling Position TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 10 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 11 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 12 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 13 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 14 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 15 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 16 Drive Roller Drive Roller Sprocket & Bearings TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 17 Pivoting Head Smoothing Head Exploded TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 18 TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 19 Trailer Assembly Trailer Arm TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 20 Wheel Hub & Bearings Light Kit without base TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 21 DANGER WHEN ROLLING SLOPING GREENS PLACE THESE ROLLERS ON THE HIGH SIDE. DO NOT OPERATE MACHINE R6040 R6041 WITHOUT COVER IN PLACE. TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
- Page 22 20, 22, 29 E7175 Tube Rubber Coated R5159 Rubber Trailer Rest R6059 Decal PGA R8081 10-24 x 16 Tek Screw 14, 15 R5009 Grip Joystick R5171 Yoke Assy TRU-TURF R52-11TC Golf Greens Roller Manual TRU-TURF R52-11TC Golf Greens Roller Manual...
-
Page 23: Parts List
Nut Nyloc 3/16 UNF R8256 Nut M8 Nyloc 15, 16, 17, 21 R8270 Loom Light 17, 36, 37 R8274 Seat Frame Welded Assy 17, 18 R8275 Seat Base 17, 37 R8280 Brake Plate R8291 LED Light Kit TRU-TURF R52-11TC Golf Greens Roller Manual...
