Summary of Contents for Mantion WIDOOR

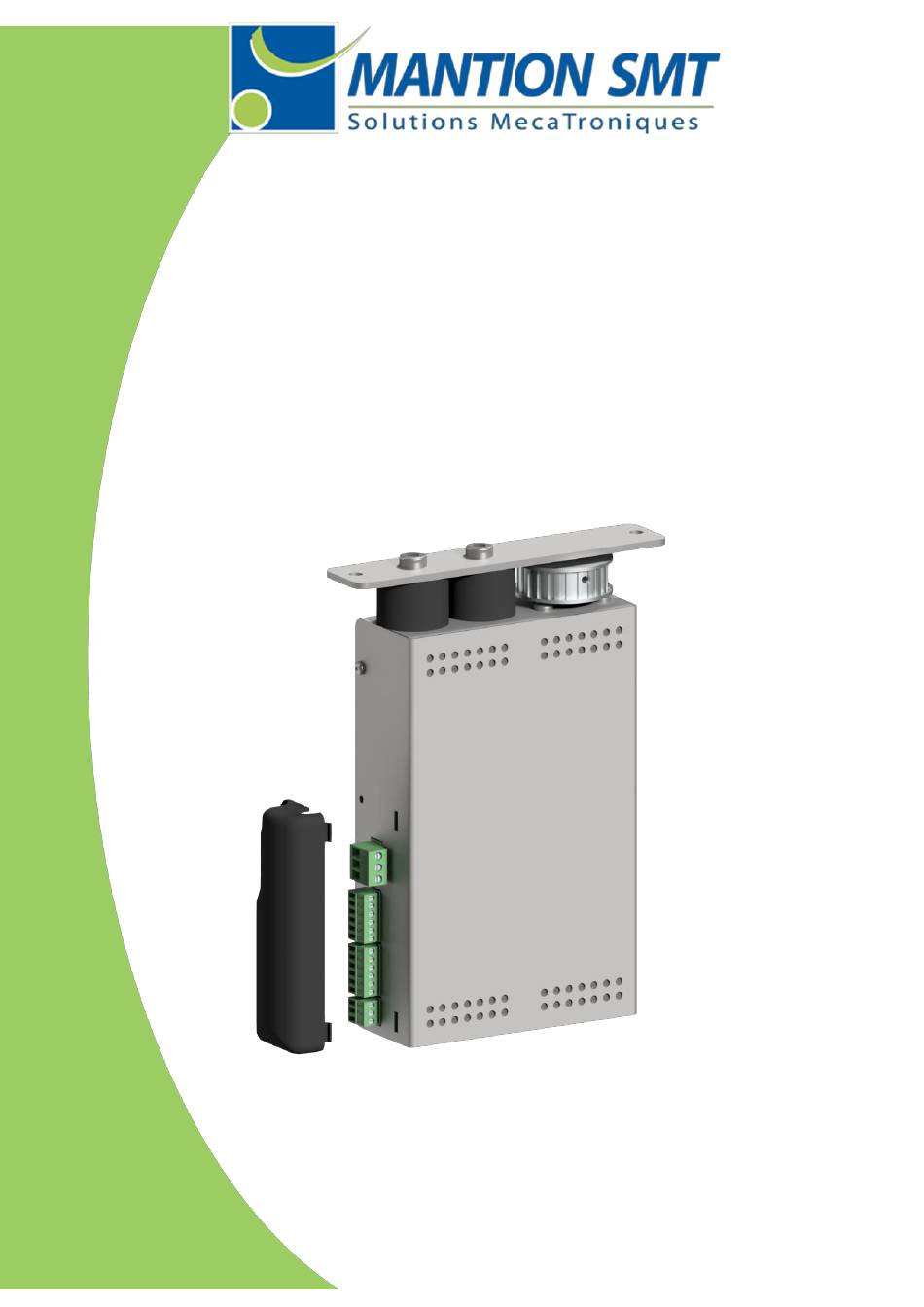

- Page 1 INSTALLATION INSTRUCTIONS DOOR MOTOR WIDOOR VERSION 3-02 EN 2, rue des Métiers 21110 – Genlis Tel.: (33) 03 80 37 85 71 http://www.mantion-smt.fr...
- Page 2 Never modify or fit any additional parts to the device that may compromise safety without MANTION SMT's written permission. The user alone is solely and entirely responsible for any breach of these safety rules, and any damage resulting therefrom.
- Page 3 MANTION SMT products come with a 5 (five) year guarantee from the date of delivery. The guarantee is limited, as decided by MANTION SMT, either to replacement or to repair of products that MANTION SMT recognizes as faulty, with the proviso that: 1.
-
Page 4: Table Of Contents
Summary: 1. Technical characteristics ......................5 2. Kit contents ..........................7 3. Installation diagram ........................7 4. Pre-installation checking ......................8 5. Motor installation ........................9 5.1. Gear motor establishment ..........................9 5.2. Belt fixing on the door (not included) ......................10 5.3. -
Page 5: Technical Characteristics
1. Technical characteristics This product is used for opening and closing automatically sliding doors (one or two doors). It is designed for domestic or professional use. General informations K0000256 – Wire control Reference K0000266 – Radio control Designation Sliding door motorization Technology Belt transmission Connectivity... - Page 6 Setting Parameters 50 mm/s – 350 mm/s * Max opening speed 50 mm/s – 200 mm/s * Max closing speed End opening speed Increase or decrease the speed at the end position End closing speed Adjust the deceleration according to the weight of the Deceleration at the opening door 0 s –...
-
Page 7: Kit Contents
2. Kit contents Screws and Electrical Protection Motorization adhesive band terminal cover 3. Installation diagram Recommended components (not included): Stoppers x 2 Track Free pulley Fixing bracket Belt... -
Page 8: Pre-Installation Checking
4. Pre-installation checking Operating reserve: 150 mm in width and 45 mm for thickness. 150 mm min 70 to 77 mm 45 mm min Porte Do not use locking stoppers. -
Page 9: Motor Installation
5. Motor installation 5.1. Gear motor establishment In the track, slide the nuts fixing the system. Nuts x 2 M6 screws Tighten the two M6 screws. Note: if the motorization is between walls, put adhesive bands. -
Page 10: Belt Fixing On The Door (Not Included)
5.2. Belt fixing on the door (not included) 5.3. Free pulley installation (not included) -
Page 11: Electrical Connection
6. Electrical connection Pay attention to your safety: The electrical installation must be carried out in accordance with the national standard in force, as well as any obligations foreseen by the law and/or by all obligations in force, laid down for this purpose. Electrical connection must take place without voltage, do not connect the sector before having disconnected all assembly operations. -
Page 12: External Accessories Connection
6.1. External accessories connection Functionality Peripherals Function Abbreviation N° Terminal / Connection description description characteristics Live 80 – 264 VAC It allows to 47 – 63 Hz supply the Neutral Power product 65 W supply Protecting Earth 24 V External command power It allows to use INPUT 1 Door opening (link with GND) -
Page 13: Peripherals Connections
6.2. Peripherals connections 6.2.1. Opening control (C2 and C3) By default, "Opening control 1" is set for a radar and "Opening control 2" is set for a pushbutton. These settings can be set via the mobile application. Pushbutton switch (C0001290): Add a shunt between the terminals 4 and 5. - Page 14 6.2.2. Security system (C2 and C3) Security cell (C0003760): 6.2.3. Locking system (C4) Fail secure (locking system without power supply): Fail secure Fail safe (Locking system with power supply): Fail safe Fail safe suction: C0013750 C0013760 C0013765 60 kg 180 kg 180 kg...
-
Page 15: Power Supply Connection (Terminal C1)
6.3. Power supply connection (C1) The installation must be equipped (L, N, PE) with a two-pole external circuit-breaker and a disconnector (or selector switch) on the primary side in order to isolate the product if necessary. 80 – 264 VAC Supply voltage 47 –... -
Page 16: Protection Cover Installation
7. Protection cover installation After electrical connections, put the protection cover. Step 1. Arrange wires. Step 2. Put the protection cover in openings. Step 3. Press the protection cover against the product. Be careful with the wires. Step 4. Put the screws. -
Page 17: Operating Modes
8. Operating modes 8.1. Switches settings Switch Radio and Bluetooth peering Stoppers learning Switch the direction of motor rotation Automatic mode: Automatic Manual mode: Opening and closing of the door closing of the door on request Bluetooth disable Bluetooth enable Note: by default, switches 1, 2 and 3 are in OFF position and switch 4 is in ON position. -
Page 18: Bringing Into Service
9. Bringing into service Before bringing into service this product, check you can move the doors manually effortless. A bad installation with a bad doors alignment or high frictions can damage the motors. Check that the product and accessories are correctly connected. Pushbutton BP Prog Switch This product is equipped with a stoppers learning push button (BP Prog) which determines the... -
Page 19: Parameters Settings
10. Parameters settings It’s possible, with the "Widoor" application, to adjust settings. This app can be downloaded on stores. 10.1. Peering a smartphone a. Turn OFF the switch 1 and turn ON the switch 4. b. Press briefly one time on the BP Prog. -
Page 20: Wireless Setup Instructions (Radio Product Only)
11. Wireless setup instructions (Radio product only) 11.1. Radio specifications Frequency: 433,92 MHz Transmitter range: approximately 70 m line-of-sight Propagation of radio waves varies according to the medium they traverse. The range of the radio waves will also vary according to the type of construction: Plasterboard Plaster / Wood Brick / Conglomerate Reinforced concrete... -
Page 21: Disabling A Switch Or A Remote Control (Transmitter)
11.3. Disabling a switch or a remote control (transmitter) a. Turn OFF the switch 1. b. Press briefly one time on the BP Prog. c. The LED lights up in magenta. d. When the LED is lighted: press briefly one more time on the BP Prog. e. -
Page 22: Further Information
12. Further information 12.1. LED color code Color Status Meaning The door is opening. Flashing Dark blue The door is closing. Turned on The door is open. Cyan / Light blue Flashing Stoppers searching in progress. Turned on The system needs a stopper learning. Green Flashing Stoppers learning in progress. -
Page 23: Diagnostic Aid
13. Diagnostic aid Symptoms Probable/Likely cause Solution Connection problem to the Check the connection to the power supply power supply (chapter 6.3) The motor doesn’t work Learning not done Do a learning (chapter 9.) The door closes when we Turn on the switch 2 and do Put the motor in the other way request it to open another learning... - Page 24 _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________...
