Summary of Contents for DigiCare DIGISOL DG-GR1310

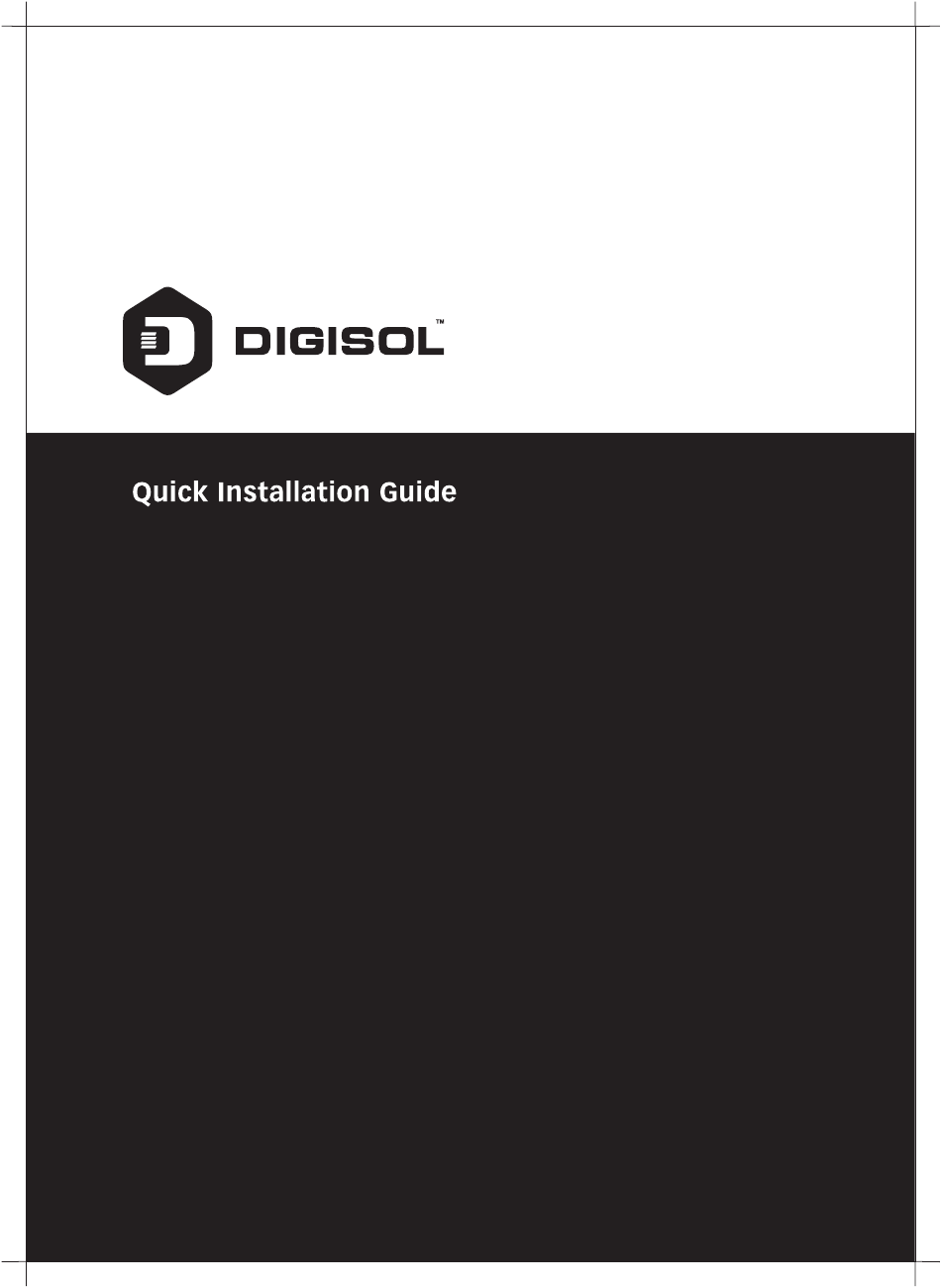

- Page 1 GEPON ONU 300Mbps Wi-Fi Router with 1 PON and 1 Giga Port DG-GR1310 V1.0 2018-01-04...
- Page 2 Copyright Copyright 2018 by DIGISOL SYSTEMS LTD. All rights reserved. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company.
- Page 3 Overview 1:1 Product Description DG-GR1310 ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an EPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module IEEE802.3ah.
- Page 4 1:3 Technical Parameters Technical item DG-GR1310 PON interface 1EPON connector, SC single-mode/single-fiber, downlink/uplink 1.25Gbps Wavelength Tx1310nm,Rx 1490nm Optical interface SC connector LAN interface 1x 10/100/1000Mbps auto adaptive Ethernet interfaces RJ-45 connector Wireless Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 1 internal antenna, 1 external antenna 5, For Status of POWER, LOS, PON, LAN, Wi-Fi Operating condition Temperature:...
- Page 5 Installation 2:1 Installation Requirements To avoid equipment damage caused by improper use and personal injury, please observe the following precautions: Do not place the device near water or in damp places, in order to ● prevent water or moisture from entering the device. Do not place the device in an unstable place, avoid falling damage to ●...
- Page 6 1. Installed on the desktop Place the machine on a clean bench, this installation is relatively simple, you can observe the following operation: Ensure the smooth workbench. ● Around the device enough space for heat dissipation. ● Do not place objects on the device. ●...
- Page 7 Web Management EPON ONU provides simple Web management functions, including Device Information, modify Lan Managemenet IP address, Loid and Password, Configuration File backup and restore, firmware upgrade etc... NOTE: About More ONU Detail Configurations should be configured via ONU Web. 3:1 Default configuration The following is the default device configuration information.
- Page 8 Figure 4 Device Information Status Menu displays the current device base Information's. Including Hardware Version, Software Version, Device Model, Device ID. Note: All the device information may be changed, the received device shall prevail.
- Page 9 Figure 5 Modify Loid and Password LOID Menu displays the current device Loid and Password informations. Loid: 0-24 bytes. Password: fixed 10 bytes. Note: All the changes take effect in the equipment after the restart...
- Page 10 Figure 6 Restore Default Restore Default: The operation to restore the device to its factory configuration. Note: 1. Press RST button over 10 seconds, onu can restore factory defaults and reboot.
- Page 11 Figure 7 Upgrade Firmware upgrade Menu displays the current equipment upgrades related information.
- Page 12 Figure 8 Backup/ Restore Configuration Download: The operation to backup configuration from the device. Upload The operation to restore configuration from a configuration file.
- Page 13 Troubleshooting 1. After power all the lights are lit? Reasons: 1) Power connection errors 2) Power is not normal. Solution: 1) Check that the power cable is connected 2) The rear panel of the power supply is turned on. 2. GE / FE led does not light? Reasons: 1) Network cable is damaged or loose connection 2) Cable type error;...
- Page 14 WARRANTY helpdesk@digisol.com 1800 209 3444...
- Page 16 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Digisol is a Subsidiary of Smartlink Holdings Limited Salcete, GOA - 403722 www.digisol.com 1800 209 3444 helpdesk@digisol.com sales@digisol.com...
