Angry Audio Bluetooth Audio Gadget Preliminary User Manual

Bluetooth Audio Gadget
Preliminary User Guide
Thanks for purchasing the Bluetooth Audio Gadget. We are grateful! The user guide is in the queue and
should be ready sometime in the next few months. Meantime, here are some operating notes to help you
BLUETOOTH
enjoy your gadget.
AUDIO GADGET
For safety and mounting information, please see the Failsafe Gadget user guide:
https://bit.ly/2vlJbsB

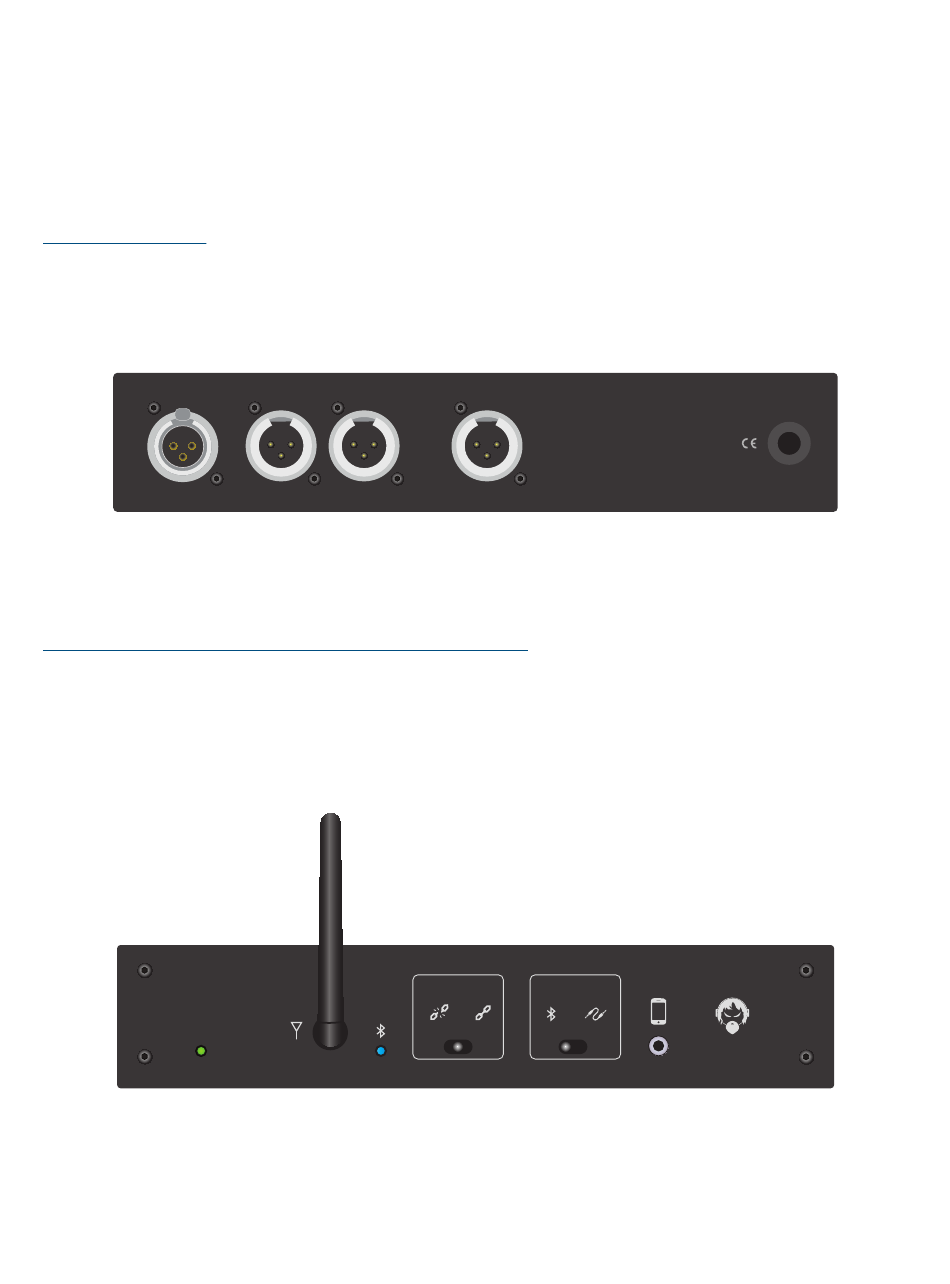

Plug in your gadget and the green LED will illuminate. Connect the gadget to your mixing console.
Connect the LEFT and RIGHT ANALOG OUTPUTS to a stereo line input. Connect your mixing console
mix-minus (clean feed, N-1, etc.) output to the ANALOG INPUT.
ANALOG INPUT
Broadcasters will be familiar with the mix-minus concept. For podcasters, recording and live sound
applications, this might be an unfamiliar term. Here's a great article on how a mix-minus is used and how
to create one:
https://thepodcastersstudio.com/how-to-setup-a-mix-minus/
After you're all hooked up, you'll want to connect to your phone or other Bluetooth device. Briefly push the
BT PAIRING switch to the right and release. The blue LED should be flashing. The gadget is now
advertising and ready to pair. On your phone, navigate to the Bluetooth settings, make sure Bluetooth is
ON and look at the available devices. You should see ANGRYBT on the list. The gadget advertisement
times out after 90 seconds if no connection is made. If that happens, click PAIR again.
BLUETOOTH
AUDIO GADGET
Select ANGRYBT. Your phone and the gadget will negotiate a connection. Once connected, the blue LED
will stop flashing and illuminate constantly. Open your music app and play a song. Make sure the phone
volume is turned up. Best fidelity will occur when volume is at maximum. If you don't hear audio, check
your console settings and verify that the CONNECTION switch is in the BT position.
ANALOG INPUT
BT PAIRING
RESET
ANALOG OUTPUTS
LEFT RIGHT
BT PAIRING
RESET
ANALOG OUTPUTS
LEFT RIGHT
CONNECTION
PAIR BT WIRED
DIGITAL ANGRYAUDIO.COM
DESIGNED IN NASHVILLE,
MANUFACTURED IN CHINA
CONTAINS FCC ID: QOQWT32I
OUTPUT
CONTAINS IC: 5123A-BGTWT32I
CONNECTION
PAIR BT WIRED
DIGITAL ANGRYAUDIO.COM
DESIGNED IN NASHVILLE,
MANUFACTURED IN CHINA
CONTAINS FCC ID: QOQWT32I
OUTPUT CONTAINS IC: 5123A-BGTWT32I
