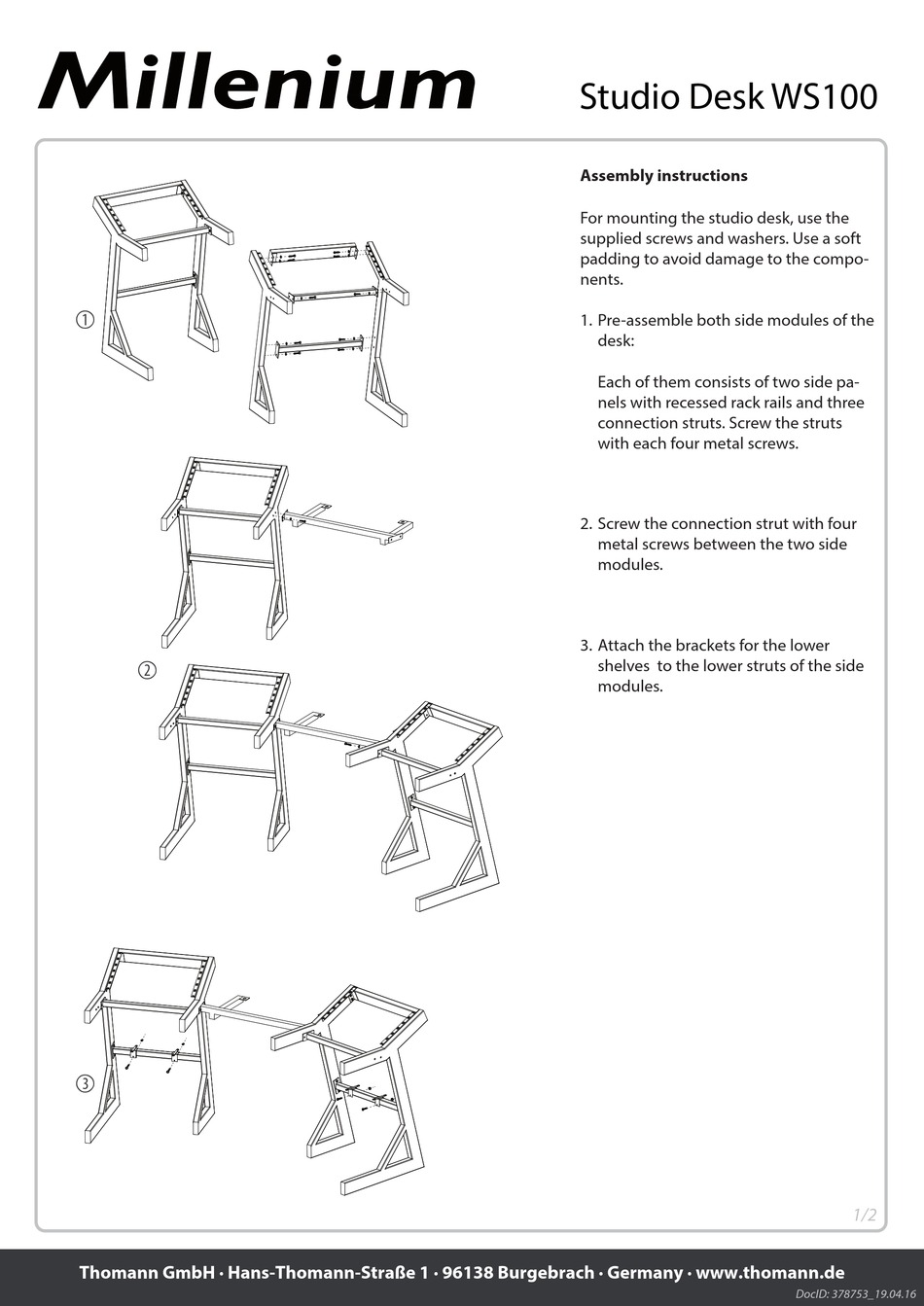

Studio Desk WS100

Assembly instructions

For mounting the studio desk, use the

supplied screws and washers. Use a soft

padding to avoid damage to the compo-

nents.

1. Pre-assemble both side modules of the

desk:

Each of them consists of two side pa-

nels with recessed rack rails and three

connection struts. Screw the struts

with each four metal screws.

2. Screw the connection strut with four

metal screws between the two side

modules.

3. Attach the brackets for the lower

shelves to the lower struts of the side

modules.

1/2

DocID: 378753_19.04.16

Table of Contents

Need help?

Do you have a question about the WS100 and is the answer not in the manual?

Page 1 Studio Desk WS100 Assembly instructions For mounting the studio desk, use the supplied screws and washers. Use a soft padding to avoid damage to the compo- nents. ö 1. Pre-assemble both side modules of the desk: Each of them consists of two side pa- nels with recessed rack rails and three connection struts.
Page 2 Studio Desk WS100 4. Screw the shelves to the lower struts of the side modules. 5. Screw the rear small table top on the connection strut between the two side modules. 6. Screw the table top on the support arms of the side modules.
