Pioneer RS-P90/EW5 Service Manual

Optical digital reference system universal digital preamp
Hide thumbs

Advertisement

Quick Links

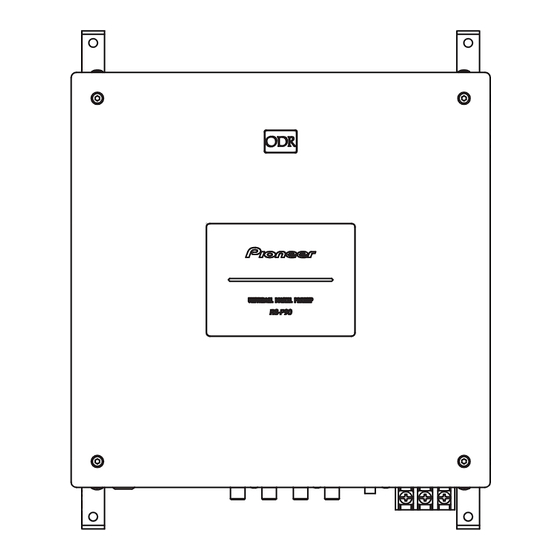

OPTICAL DIGITAL REFERENCE SYSTEM UNIVERSAL DIGITAL PREAMP
RS-P90
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
RS-P90/EW5
/EW5
K-ZZW. OCT. 2006 Printed in Japan
ORDER NO.
CRT3658

Advertisement

loading

  Related Manuals for Pioneer RS-P90/EW5

  Summary of Contents for Pioneer RS-P90/EW5

  • Page 1 PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 K-ZZW.
  • Page 2: Safety Information

    2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic induction. RS-P90/EW5...
  • Page 3 To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. RS-P90/EW5...
  • Page 4: Table Of Contents

    6.1 JIG CONNECTION DIAGRAM......................... 63 6.2 MASTER CLOCK ADJUSTMENT......................64 7. GENERAL INFORMATION ..........................65 7.1 DIAGNOSIS ............................. 65 7.1.1 DISASSEMBLY ............................. 65 7.1.2 CONNECTOR FUNCTION DESCRIPTION ..................67 7.2 IC ................................68 7.3 OPERATIONAL FLOW CHART ....................... 80 8. OPERATIONS ..............................81 RS-P90/EW5...
  • Page 5: Specifications

    Frequency responce ....10 Hz to 20 kHz, (–1, +0 dB) Max. output level/impedance ........4 V/220 Ω Distortion........0.002% (1 kHz, 20 kHz LPF) Signal-to-noise ratio ......115 dB (IHF-A network) Separation ....80 dB (100 Hz to 10 kHz, 20 kHz LPF) RS-P90/EW5...
  • Page 6: Exploded Views And Parts List

    • Screw adjacent to mark on the product are used for disassembly. • For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions,apply as you think it appropriate.) 2.1 PACKING RS-P90/EW5...
  • Page 7 CRB2200 Owner's Manual(German) CRB2201 Owner's Manual(French) CRB2202 Owner's Manual(Italian) CRB2203 Owner's Manual(Dutch) CRB2204 Owner's Manual(Russian) CRB2205 Warranty Card CRY1157 Clamper CNV1443 Bracket CND3195 Cover CNS2726 Cable CDE6690 Cord CDE6314 Cord CDE6315 Cord CDE6641 Polyethylene Bag CEG-145 Caution Card CRP1343 RS-P90/EW5...
  • Page 8: Exterior

    2.2 EXTERIOR RS-P90/EW5...
  • Page 9 CKE1060 Fuse Holder(CN902) CKR1021 Connector(CN301) CKS2600 Connector(CN651) CKS3561 Connector(CN601) CKS5071 Connector(CN701) CKS5325 Holder CND3093 Holder CND3094 Screw PPZ20P060FTB Screw PPZ30P080FTB Terminal(CN501) VNF1084 Terminal(CN502) VNF1084 Terminal(CN503) VNF1084 DSP Unit CWX3288 Plug(CN513) CKS3533 Connector(CN2101) CKS4977 Connector(CN2402) CKS4985 Connector(CN2403) CKS4985 Connector(CN2401) CKS4989 RS-P90/EW5...
  • Page 10: Block Diagram And Schematic Diagram

    AN8011S +12VL SWBU SWBU IC933 IC898 S-812C50AU ON/OFF ON/OFF TA78L12F Q851 Q802 +12VR IC932 OUT2 OUT1 S-812C50AU IC897 IN-2 TA79L12F IN-1 IC931 Q854 T852 S-812C50AU −12VL IC896 TA79L12F Q852 Q803 Q812 −12VR Q811 OUT1 Q814 Q801 OUT2 Q815 IN-2 RS-P90/EW5...
  • Page 11 SDIN RFBD Q812 FU801 -12VR CLKIN D3.3V CLKIN RFBC Q811 IC115 Sw-Rch LT1358CS8 Q814 Q810 Q124 − VREFB IOUT 1A Q125 Q108 Q815 − − VREFA IOUT 1B N33V Q813 EVOLENB LDAC IC116(2/2) EVOLSTB LT1358CS8 FSIN RFBA -12VR RFBB RS-P90/EW5...
  • Page 12 JTTD1 DS2HBR DATA (IDAT IDAT(16-31)2 DSP2HBR 0-31 JTD1 0-31 JTEMU IC4803 JTTRST INHR TRST DTOA JTTRST JTTMS INMR TDOB JRST JTTCK INLR IC4751 DT1A TC74LCX541FTS1 DSP2CLK INSR CLKIN DT1B JTTCK RCLK1 JTCK (IDAT JTTMS JTTD4 JTMS OE2 OE1 B33V RS-P90/EW5...
  • Page 13 CN2401 Q3002 SCK1 SCK2 B33V LDQM UDQM 3.3V +12VR Q3004 +12VL IC3052 IDAT(0-15)2 −12VR IC4804 TC7WH04FU −12VL IDAT(16-31)2 IC3003 IC4803 SCK5 NJM431U SCK6 INHR INMR Q3003 IC4751 INLR 3.3V TC74LCX541FTS1 INSR 1.65V OE2 OE1 Q3005 DS2BFEN DSP2BFEN IC3004 NJM431U RS-P90/EW5...
  • Page 14: Control Unit(1/2), Connector Pcb(Guide Page)

    Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". Large size SCH diagram CONNECTOR PCB Guide page Detailed page DSP UNIT Consists of DSP PCB CONNECTOR PCB > CN3201 CN2101 FUSE FUSE > RS-P90/EW5...
  • Page 15 No differentiation is made between chip capacitors and 0.022 R022 discrete capacitors. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. > CN2401 RS-P90/EW5...
  • Page 16 RS-P90/EW5...
  • Page 17 RS-P90/EW5...
  • Page 18 RS-P90/EW5...
  • Page 19 RS-P90/EW5...
  • Page 20: Control Unit(2/2)(Guide Page)

    3.3 CONTROL UNIT(2/2)(GUIDE PAGE) CN2402 CN2403 RS-P90/EW5...
  • Page 21 CONTROL UNIT(2/2) RS-P90/EW5...
  • Page 22 RS-P90/EW5...
  • Page 23 RS-P90/EW5...
  • Page 24 RS-P90/EW5...
  • Page 25 RS-P90/EW5...
  • Page 26: Dsp Pcb(1/2)(Guide Page)

    3.4 DSP PCB(1/2)(GUIDE PAGE) CN302 CN601 RS-P90/EW5...
  • Page 27 DSP UNIT Consists of DSP PCB CONNECTOR PCB CN801 DSP PCB(1/2) CN101 CN102 RS-P90/EW5...
  • Page 28 RS-P90/EW5...
  • Page 29 RS-P90/EW5...
  • Page 30 RS-P90/EW5...
  • Page 31 RS-P90/EW5...
  • Page 32: Dsp Pcb(2/2)(Guide Page)

    3.5 DSP PCB(2/2)(GUIDE PAGE) RS-P90/EW5...
  • Page 33 DSP PCB(2/2) DSP UNIT Consists of DSP PCB CONNECTOR PCB RS-P90/EW5...
  • Page 34 RS-P90/EW5...
  • Page 35 RS-P90/EW5...
  • Page 36 RS-P90/EW5...
  • Page 37 RS-P90/EW5...
  • Page 38: Pcb Connection Diagram

    For further information for CN2402 respective destinations, be sure to check with the schematic dia- CN2403 gram. 2.Viewpoint of PCB diagrams Capacitor Connector SIDE A SIDE B P.C.Board Chip Part CN2101 CN3201 CN513 IP-BUS IN SUBWOOFE DIGITAL IN LOW OUT RS-P90/EW5...
  • Page 39 SIDE A CN2401 POWER SUPPLY SUBWOOFER OUT MID OUT LOW OUT HIGH OUT RS-P90/EW5...
  • Page 40 CONTROL UNIT RS-P90/EW5...
  • Page 41 SIDE B RS-P90/EW5...
  • Page 42: Dsp Pcb

    4.2 DSP PCB CN101 CN102 DSP PCB CN302 CN601 RS-P90/EW5...
  • Page 43 CN102 CN801 SIDE A RS-P90/EW5...
  • Page 44 DSP PCB RS-P90/EW5...
  • Page 45 SIDE B RS-P90/EW5...
  • Page 46: Connector Pcb

    4.3 CONNECTOR PCB CONNECTOR PCB CONNECTOR PCB SIDE A SIDE B CN651 RESET RS-P90/EW5...
  • Page 47: Electrical Parts List

    Q 802 (B,178,176) Transistor UMZ1N IC 801 (A,171,156) IC AN8011S IC 851 (A,201,111) IC AN8011S Q 803 (B,195,166) Transistor 2SJ529S Q 804 (B,177,168) Transistor 2SJ529S IC 896 (A,140,110) IC TA79L12F Q 810 (A,199,230) Transistor 2SK1485 IC 897 (A,135,110) IC TA79L12F RS-P90/EW5...
  • Page 48 (A,80,59) Diode DAN202U R 128 (A,114,42) RS1/16S222J L 310 (A,75,21) Inductor LCTC1R8K2125 R 129 (A,109,42) RS1/16S222J R 130 (A,104,42) RS1/16S222J L 316 (B,65,29) Inductor LCTC120K2125 L 651 (A,18,81) Inductor LCTC1R8K2125 R 131 (A,128,43) RS1/16S222J L 701 (B,51,24) Inductor CTF1410 RS-P90/EW5...
  • Page 49 R 200 (A,123,110) RN1/10SE4700D R 659 (A,18,90) RS1/16S222J R 201 (A,123,108) RN1/10SE4700D R 660 (A,18,89) RS1/16S222J R 202 (A,115,114) RN1/10SE4701D R 661 (A,26,84) RS1/16S101J R 203 (A,120,103) RN1/10SE4701D R 662 (A,34,112) RS1/16S103J R 204 (B,120,108) RN1/10SC22R0D R 663 (A,18,92) RS1/16S103J RS-P90/EW5...
  • Page 50 (A,66,205) 10 µF/50 V CCH1543 R 851 (A,203,102) RS1/16S4301D C 113 (A,116,213) 10 µF/50 V CCH1543 R 853 (A,168,107) RS1/16S4302D C 114 (A,116,205) 10 µF/50 V CCH1543 R 854 (B,167,129) RS1/16S1501D C 115 (A,106,213) 10 µF/50 V CCH1543 R 855 (A,206,102) RS1/16S2400D RS-P90/EW5...
  • Page 51 C 195 (A,86,125) CCSQCH470J50 C 272 (A,82,93) CCSQCH101J50 C 196 (B,91,121) CKSQYB104K50 C 273 (A,84,93) CCSQCH102J50 C 197 (A,86,165) CCSQCH220J50 C 274 (A,89,93) CCSQCH390J50 C 198 (B,86,157) CKSQYB104K50 C 275 (A,91,93) CCSQCH101J50 C 199 (A,91,165) CCSQCH220J50 C 276 (A,93,93) CCSQCH102J50 RS-P90/EW5...
  • Page 52 (A,169,203) 100 µF/16 V CCH1702 C 854 (A,154,114) CKSRYB104K50 C 945 (A,169,215) 100 µF/16 V CCH1702 C 855 (A,158,127) CEHAZL101M25 C 946 (B,176,211) CKSRYB104K50 C 856 (A,158,119) CEHAZL101M25 C 971 (B,56,24) CCSCH101J50 C 857 (B,165,124) CKSRYB104K50 C 981 (A,79,52) CEAT470M35 RS-P90/EW5...
  • Page 53 (A,162,19) IC MSM56V16160F8TKFM L 3011 (A,25,95) Chip Ferrite Bead CTF1399 IC 4601 (A,166,99) IC ADSP-21065LCS240S1 L 3012 (A,25,100) Chip Ferrite Bead CTF1399 IC 4751 (A,196,92) IC TC74LCX541FTS1 L 3013 (A,53,65) Chip Ferrite Bead CTF1399 IC 4803 (A,177,132) IC MSM56V16160F8TKFM RS-P90/EW5...
  • Page 54 R 2213 (B,84,103) RS1/16S0R0J R 2503 (A,117,153) RN1/10SE1801D R 2214 (A,87,96) RS1/16S101J R 2504 (A,126,151) RN1/10SE1801D R 2215 (A,87,98) RS1/16S103J R 2505 (A,71,153) RN1/10SE1801D R 2216 (B,83,94) RS1/16S0R0J R 2506 (A,81,151) RN1/10SE1801D R 2218 (B,81,94) RS1/16S0R0J R 2507 (A,86,153) RN1/10SE1801D RS-P90/EW5...
  • Page 55 R 3036 (A,89,88) RN1/16SC47R0D R 4011 (A,99,68) RS1/16S47R0D R 3037 (A,48,73) RN1/16SC47R0D R 4012 (A,97,68) RS1/16S47R0D R 3039 (B,47,61) RN1/16SC47R0D R 4013 (B,100,66) RS1/16S103J R 3040 (A,22,87) RN1/16SC47R0D R 4014 (B,98,66) RS1/16S103J R 3041 (A,22,89) RN1/16SC47R0D R 4015 (B,96,66) RS1/16S103J RS-P90/EW5...
  • Page 56 R 4086 (A,115,35) RS1/16S47R0D R 4311 (A,167,69) RN1/16SC47R0D R 4087 (A,79,30) RS1/16S47R0D R 4312 (B,172,61) RS1/16S103J R 4088 (A,113,30) RS1/16S0R0J R 4313 (B,168,61) RS1/16S103J R 4089 (A,112,30) RS1/16S0R0J R 4314 (B,166,61) RS1/16S103J R 4090 (A,110,30) RS1/16S0R0J R 4315 (B,164,61) RS1/16S103J RS-P90/EW5...
  • Page 57 R 4389 (A,180,30) RS1/16S0R0J R 4614 (B,167,88) RS1/16S103J R 4390 (A,179,30) RS1/16S0R0J R 4615 (B,169,84) RS1/16S103J R 4391 (A,177,30) RS1/16S0R0J R 4616 (A,169,80) RN1/16SC47R0D R 4392 (A,176,30) RS1/16S0R0J R 4617 (B,173,88) RS1/16S103J R 4393 (A,173,30) RS1/16S47R0D R 4618 (B,171,84) RS1/16S103J RS-P90/EW5...
  • Page 58 R 4691 (A,159,118) RS1/16S0R0J CAPACITORS R 4692 (A,161,118) RS1/16S0R0J R 4693 (A,164,118) RS1/16S47R0D C 2001 (A,24,78) 47 µF/25 V CCH1643 R 4694 (A,165,121) RS1/16S47R0D C 2002 (B,20,79) CKSRYB104K16 R 4695 (A,166,118) RS1/16S47R0D C 2003 (A,11,73) CKSRYB104K16 R 4696 (A,167,121) RS1/16S47R0D RS-P90/EW5...
  • Page 59 C 2352 (B,120,141) CKSQYB104K50 C 2535 (B,86,153) CCSQCH221J50 C 2353 (B,78,141) CKSQYB104K50 C 2536 (A,97,151) CCSQCH221J50 C 2354 (B,89,141) CKSQYB104K50 C 2537 (A,38,153) CCSQCH221J50 C 2355 (B,48,141) CKSQYB104K50 C 2538 (A,51,151) CCSQCH221J50 C 2356 (B,57,141) CKSQYB104K50 C 2539 (B,55,153) CCSQCH221J50 RS-P90/EW5...
  • Page 60 C 3043 (A,26,92) CKSRYB104K16 C 4029 (B,105,39) CKSRYB103K50 C 3044 (A,24,92) CKSRYB104K16 C 4030 (B,102,39) CKSRYB103K50 C 3045 (A,26,97) CKSRYB104K16 C 4032 (B,98,39) CKSRYB103K50 C 3046 (A,24,97) CKSRYB104K16 C 4034 (B,94,39) CKSRYB103K50 C 3047 (A,54,62) CKSRYB104K16 C 4035 (B,92,39) CKSRYB103K50 RS-P90/EW5...
  • Page 61 C 4337 (B,155,39) CKSRYB103K50 C 4641 (B,188,126) CKSRYB104K16 C 4338 (B,181,38) CKSRYB102K50 C 4642 (B,180,132) CKSRYB104K16 C 4339 (B,192,42) CKSRYB104K16 C 4643 (B,170,132) CKSRYB104K16 C 4340 (B,192,38) CKSRYB104K16 C 4644 (B,167,131) CKSRYB104K16 C 4341 (B,202,51) CKSRYB104K16 C 4645 (B,196,110) CKSRYB104K16 RS-P90/EW5...
  • Page 62 C 4903 (B,130,81) CKSRYB104K16 C 4904 (A,130,80) CASA470M10 C 4905 (A,114,81) CKSRYB104K16 C 4906 (A,123,87) CCSRCH180J50 C 4907 (A,112,86) CCSRCH220D50 C 4912 (A,124,79) CKSRYB104K16 C 4951 (A,9,53) CKSRYB104K16 C 4952 (A,9,51) CKSRYB104K16 C 4954 (B,13,17) CKSRYB104K16 C 4955 (B,14,47) CKSRYB104K16 RS-P90/EW5...
  • Page 63: Adjustment

    6. ADJUSTMENT 6.1 JIG CONNECTION DIAGRAM DSP UNIT CN3201 CN2101 GGD1028 CN601 CN302 GGD1288 CONTROL UNIT RS-P90/EW5...
  • Page 64: Master Clock Adjustment

    (Waveform Confirmation for Adjustment) Waveform confirmation is required since the waveform may be deformed according to the type of probe to be used when adjusting master clock. The waveform is basically a rectangular wave of 0 --- 3.3 V (24.576 MHz). RS-P90/EW5...
  • Page 65: General Information

    7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY Removing the Panel (Fig.1) Panel Remove the six screws and then remove the two Panels. Panel Fig.1 Removing the Holder (Fig.2) Holder Remove the screw and then remove the Holder. Fig.2 RS-P90/EW5...
  • Page 66 Disconnect the five connectors. Remove the three screws and then remove the DSP Unit. DSP Unit Fig.3 Removing the Control Unit (Fig.4) Control Unit Straighten the tabs at four locations indicated. Remove the three screws and then remove the Control Unit. Fig.4 RS-P90/EW5...
  • Page 67: Connector Function Description

    2 : OPI 1. BUS+ 3 : GND 2. GND 4 : OPI5V 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT RS-P90/EW5...
  • Page 68 7.2 IC DIR1703ES1 EPF6016ATI144-3S1 SRC4184IPAG ADSP-21065LCS240S1 PCM1798DB AD7564BRS LT1358CS8 PEG169A NJM431U HA12241FP TC7WZ34FU TC7SET04FUS1 TC7SZU04FU S-812C33AMC-C2N TC7SH04FUS1 CY7C68013A-100AXC TC7SH32FUS1 TA79L12F TC74LCX541FTS1 TC74VHC541FTS1 TC74VHC08FTS1 DIR1703ES1 - Pin Arrangement Chart - Block Diagram Chart RS-P90/EW5...
  • Page 69 MUTEA MUTEB LRCKOB LRCKIB Input Digital Output Digital BCKOB Serial Re Sampler BCKIB De Emphasis and Decimation Serial SDOUTB Port Filter Port Interpolation Filters SDINB TDMIB sOUT Rate DGND Estimator VDD18 (2) RDYB VDD33 (2) RATIOB DGND RCKIB REGEN RS-P90/EW5...
  • Page 70 PCM1798DB - Pin Arrangement Chart RS-P90/EW5...
  • Page 71 2 IN A 3 GND 4 OUT Y TC74VHC08FTS1 14 VCC 1 1A TC74LCX541FTS1 TC74VHC541FTS1 13 4B 2 1B 12 4A 3 1Y 4 2A 11 4Y 10 3B 5 2B 9 3A 6 2Y 7 GND 8 3Y RS-P90/EW5...
  • Page 72 EPF6016ATI144-3S1 - Pin Arrangement Chart RS-P90/EW5...
  • Page 73 - Block Diagram Chart RS-P90/EW5...
  • Page 74 ADSP-21065LCS240S1 - Pin Arrangement Chart - Block Diagram Chart RS-P90/EW5...
  • Page 75 AD7564BRS - Pin Arrangement Chart - Block Diagram Chart RS-P90/EW5...
  • Page 76 DIT reset input DIR unlock information input DIR audio/data select output DIR emphasis information output DSP error information input Not used PLD config strobe output Not used 54,55 Power indicator LED control output 57-60 Not used PLD config strobe output RS-P90/EW5...
  • Page 77 AD translation reference voltage AVCC SIN4 PLD serial data input SOUT4 PLD serial data output PEG169A Format Meaning CMOS N ch open drain HA12241FP TC7SET04FUS1 -BUS +BUS BIAS IN A DRIVER OUTPUT (current) OUT Y RECEIVER OUTPUT S-812C33AMC-C2N R out Reference Voltage RS-P90/EW5...
  • Page 78 CY7C68013A-100AXC - Pin Arrangement Chart - Block Diagram Chart RS-P90/EW5...
  • Page 79 TA79L12F RS-P90/EW5...
  • Page 80: Operational Flow Chart

    PW lamp on and off Mute OFF(Pin42:L) DSPPW on (Pin40:H) Error DSP error Pin51:H DSP initialization failure PLD,DSP initialization About 3 seconds Pin48=H Un lock Pin48:H? Mute off (Pin42:L) DIT reset Pin47=L Pin16:Low and Pin15:Low Bup or Acc off RS-P90/EW5...
  • Page 81: Operations

    Optical input (blue) Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). Clear/red To terminal always supplied Fuse holder with power regardless of (4 A) ignition switch position. Clear/black (ground) To vehicle (metal) body. RS-P90/EW5...
  • Page 82 Connecting the RCA input amplifier White For system remote control Blue/white Blue/white White Tweeter Power amplifier Mid range Power amplifier Woofer Power amplifier Subwoofer Power amplifier RS-P90/EW5...
  • Page 83 RS-P90/EW5...
  • Page 84 - Jigs List Name Jig No. Remarks 2-Pin Extension cable GGD1028 Control Unit (CN302) <--> DSP Unit (CN2101) 32-Pin FFC GGD1288 Control Unit (CN601) <--> DSP Unit (CN3201) RS-P90/EW5...
