Titus AmpliVox Quickfit-Expando-6 Step-By-Step Instructions

Packing List:
• Reading table top
• Bottom panel
• 2 Side panels, left and right
• Front/speaker panel
• Black speaker grille(S-250)
• Hand-held mic (S-250)
• Mic cable (S-250)
• Gooseneck w/mic holder (S-250)
• Amplifier (S-250)
Reading
Table Top Panel
Speaker/
Front
Panel

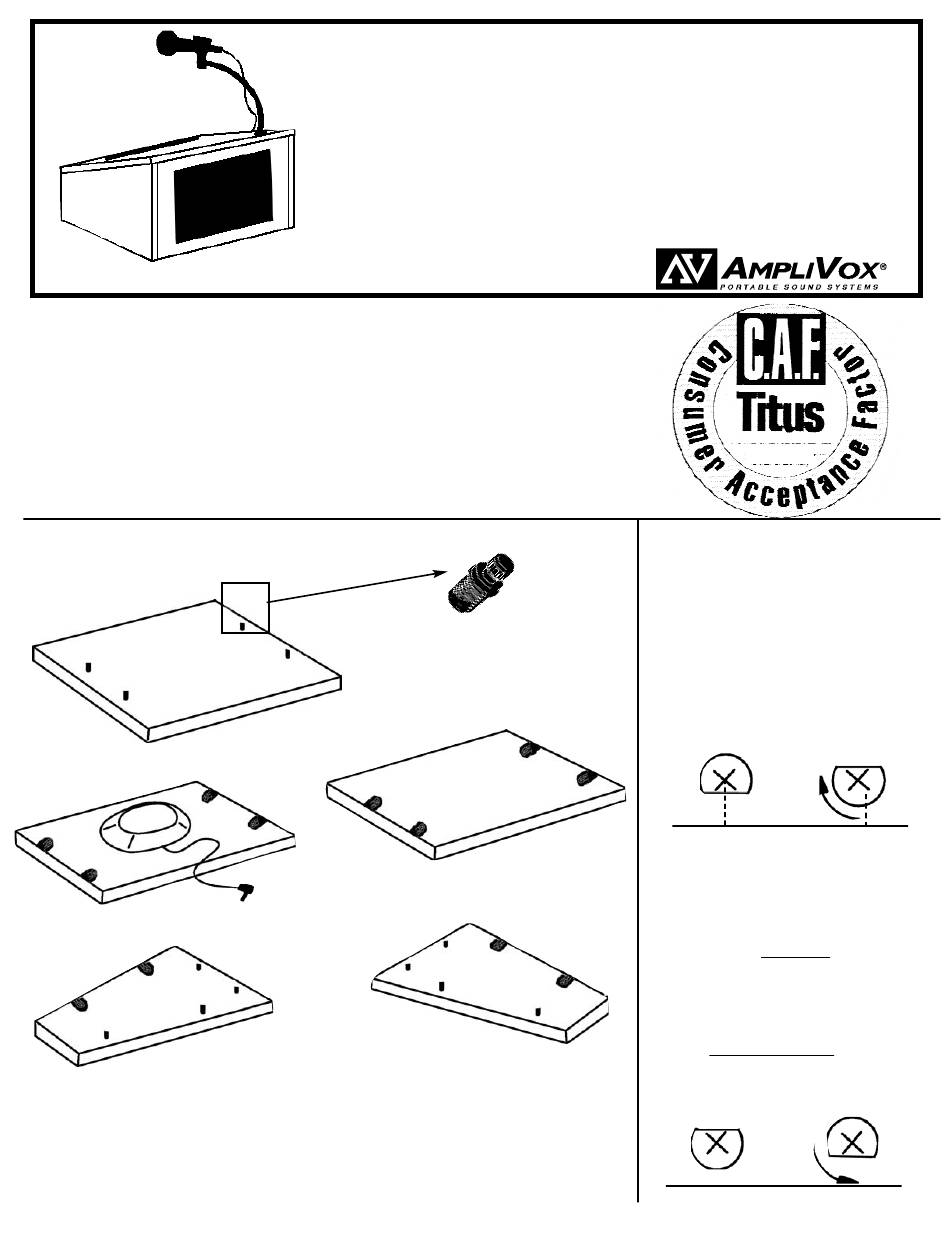

1. Unpack all the pieces. Be
sure to save the packing and the box
in case you need to return the lectern
for any reason. Check that you have
all the pieces and that they are not
damaged.
F:\docs\productinstructions\r-250assembly.qxd
Featuring Quickfit-Expando-6 Connectors
The Tabletop Lectern is designed
for easy assembly. If you have any
questions about assembling or using
your new sound system, or if you
want more information about acces-
sories, call AmpliVox's customer
service line.
1-800-267-5486
Hardware:
•12 Quickfit-Expando-6 Connectors
pre-installed
•12 Push-in Quickfit-6 Expanding dowels
Tools Needed:
•Phillips Screwdriver - for 1/2 turn of pre-
inserted Quickfit-Expando-6 Connectors
Quickfit-6 Expanding Dowel Pin
Left Side
2. Insert the dowel pins. With your
thumb(or use phillips screwdriver to
ease insertion), push the dowel pins
into the holes in the 2 sides and the
top. Make sure the plastic collar is
flush with the wood surface.
Easy Step-By-Step Instructions
for W/S-250 Tabletop Lectern Assembly
Bottom
Right Side
The lectern is carefully packed
to minimize shipping damage. If
your unit was damaged in shipping
call our toll-free customer service
line or visit our web site at
http://www.ampli.com
The Titus fittings supplied with this
kit have been specially designed
for ease of assembly
3. Inspect the
Quickfit Expando-6 Connectors.
Check the Top, Speaker/Front, Left and
Right Side Panels to insure that the flat
edge on the connector is facing the
outer edge of the board. Use a phillips
screwdriver to rotate them, if needed.
Untightened
(unlocked)
Edge of board
How the Quickfit-Expando-6
Connectors work.
Do not over tighten the connectors.
They will break if turned too far. Turn
only 1/2 turn clockwise to lock. The
steel Quickfit-6 expanding dowels and
the Quickfit-Expando-6-Connectors lock
together for easy assembly.
Turn counterclockwise to unlock
Tightened To untighten
(locked)
Edge of board
Pre-installed
To tighten
(to lock)
(to unlock)
