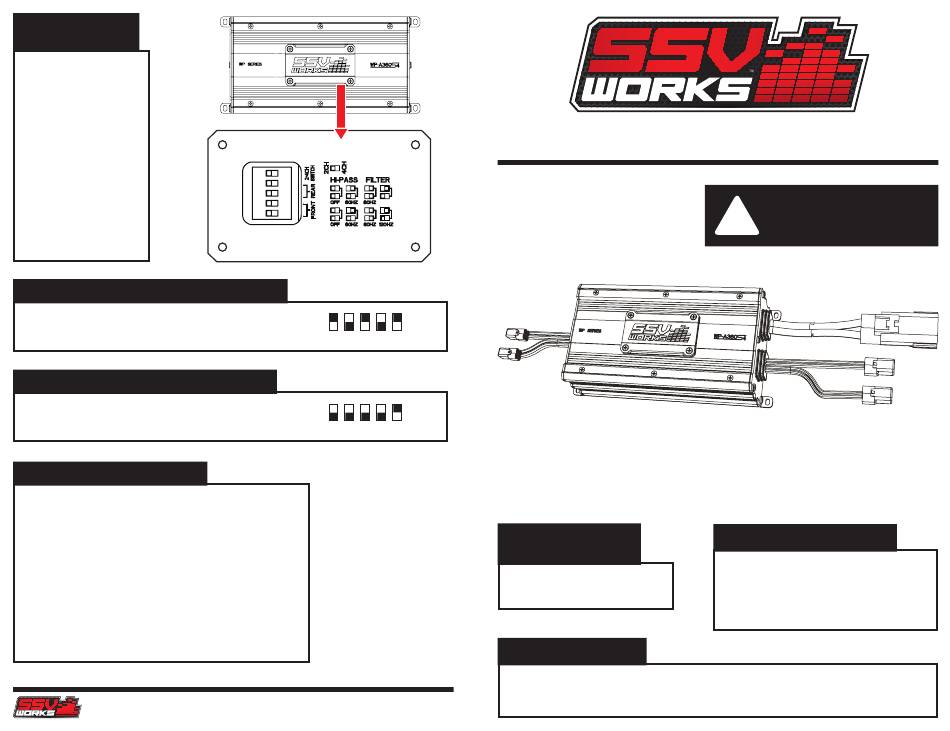

SSV Works WP-A360S4 Quick Start Manual

CROSSOVER
CONFIGURATIONS
1. Remove the 4 screws
securing the plate to
gain access to the dip
switches.
2. Use a small screwdriver
to flip the switches up or
down.
3. Switches 1 and 2 work
together to adjust your
FRONT crossover point.
4. Switches 3 and 4 work
together to adjust your
REAR crossover point.
5. Switch 5 adjusts your
amplifier between 2 or 4
Channel input mode.
RECOMMENDATION 1 (120hz CROSSOVER)
120hz crossover on both front and rear speakers is recommend
when adding a subwoofer in addition to your system.
RECOMMENDATION 2 (80hz CROSSOVER)
80hz crossover on both front and rear speakers is recommend
when no added subwoofer will be part of the system.
POWER / PROTECT LED LIGHT
Blue LED indicates the amplifier is powered up and in working order.
RED LED indicates protect mode is enabled on the amplifier
Protect Mode:
Protect mode can indicate:
Amplifier is overheating:
- Improper impedance
- Not enough ventilation
Short circuit:
- Speaker wires are making contact with each other.
Low Voltage:
- Amplifier needs 10-16 volts in order to operate.
WP-A360S4
© 2016 SSV Works, Oxnard, CA 93030 WP-A360S4 Rev. D 7-1-16
REMOVE PLATE
WP-A360S4

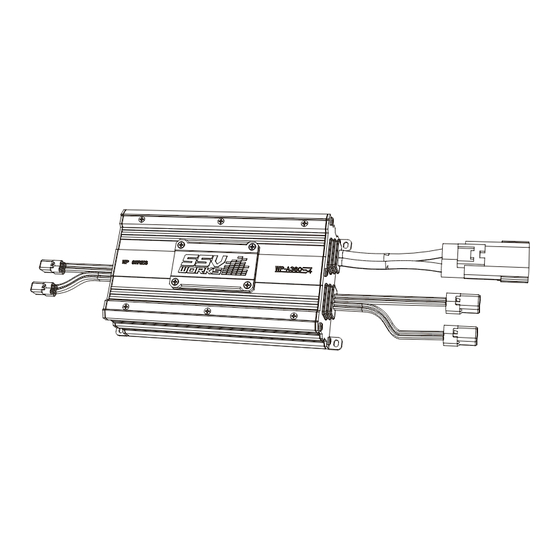

360 Watt Amplifier
1 2 3 4 5
1 2 3 4 5
WARRANTY INFORMATION:
All SSV Works amplifiers are covered by a limited 1 year warranty against defects in material or
workmanship. All SSV Works electronics are covered by a limited 1 year warranty against defects in material
or workmanship. Labor for replacement of defective components is not covered. Contact SSV Works for
further warranty information.
TOOLS NEEDED FOR
INSTALLATION
INSTALLATION NOTES
SSV Works WP Series amplifiers are designed with weather-proof durability and Plug and Play harnessing.
The WP-A360s4 amplifier is pre-tuned for SSV Works Source Units, which provides the best output levels
with no distortion.
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 x2 | Fax: 866-293-6751
- P2 screw driver - Drill
- P1 screw driver - 1/8" Drill bit
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
AMPLIFIER SPECIFICATIONS
- Class D, 4 Channel - BTL Output 4 ohm,
200W x 2
- Low Level Inputs
- Selectable
- Output 4 ohm, 50Wx4
Hi-Pass filter
- Output 2 ohm, 90Wx4
60/100/120 Hz
