Summary of Contents for Motorline FLAMA
- Page 1 FLAMA FLAMA USER’S AND INSTALLER’S MANUAL v6.1 REV. 05/2020...
-
Page 2: Table Of Contents
00. CONTENT 01. SAFETY INSTRUCTIONS INDEX ATTENTION: 01. SAFETY INSTRUCTIONS This product is certified in accordance with European 02. PACKAGE Community (EC) safety standards. INSIDE PACKAGE This product complies with Directive 2011/65/EU of the 03. OPERATOR European Parliament and of the Council, of 8 June 2011, on TECHNICAL CHARACTERISTICS the restriction of the use of certain hazardous substances in DIMENSIONS... -
Page 3: Safety Instructions
01. SAFETY INSTRUCTIONS GENERAL WARNINGS • Children shouldn’t play with the product or opening devices to avoid the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. very important. Read all instructions carefully before beginning the WARNINGS FOR TECHNICIANS installation/usage procedures and keep this manual in a safe place that it can be consulted whenever necessary. - Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY September 2009. • Attach the permanent label for the manual release as close as possible • Supplier disclaims any liability if: to the release mechanism. • Product failure or deformation result from improper installation • Disconnect means, such as a switch or circuit breaker on the electrical use or maintenance! panel, must be provided on the product’s fixed power supply leads in •...
-
Page 5: Package

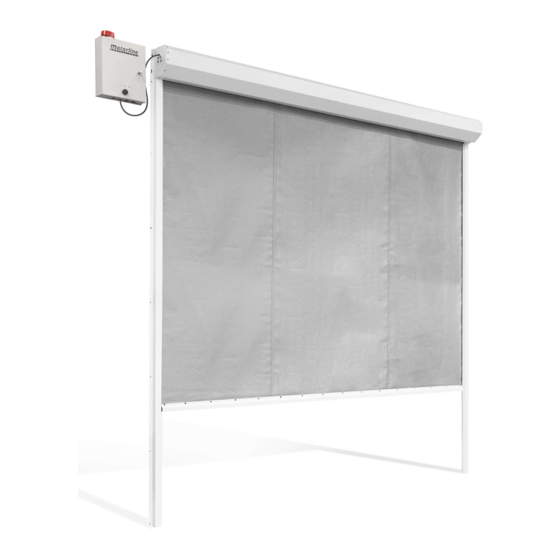

02. PACKAGE 03. OPERATOR INSIDE PACKAGE TECHNICAL CHARACTERISTICS FLAMA is a fire curtain built with indicated galvanized steel profiles, with lacquer. The kit consists of the following components: • 01 Motor • 02 Side guides MANEUVER BOARD • 01 Iron Safe •... -
Page 6: Dimensions
(wall, beam, iron pipe, etc.). If you install the curtain inside a tunnel you will need to create that structure. tunnel you will need to create that structure. LEGEND LEGEND Tunnel Tunnel Solid structure Solid structure FLAMA Curtain FLAMA Curtain 205mm 300mm PASSAGE SPAN PASSAGE SPAN WALL WALL GUIDE... -
Page 7: Installation
04. INSTALLATION INSTALLATION MAP 1 • Safe profile 2 • Motor 3 • Guide 4 • Maneuvers board 5 • Flashing light 6 • RESET button 7 • Informative LEDS 8 • Runner profile (not included in kit) 9 • Fire Breaker Fabric 10 •... -
Page 8: Pre-Installation Information 7A
• Evaluate the security devices to be installed. This will ensure that unexpected accidents do not happen. • Use appropriate screws to the place where the components of the FLAMA will be fixed. • Do not use plastic wall plugs in the FLAMA installation. -
Page 9: Fixing The Side Guides And Maneuver Board
04. INSTALLATION FIXING THE SIDE GUIDES AND MANEUVER BOARD POSITION GUIDES Place the guides by inserting them through the openings at the bottom of the safe. FIX GUIDES With the guides against the wall mark the fixing points and then drill the holes. -
Page 10: Settings
05. SETTINGS DC95 CONTROL BOARD DIAGRAM DIP SWITCH 1 MOTOR WIRES Depending on the dimension of the curtain, FLAMA could be (same phase and CURTAIN OPERATING MODE supplied with a DC95, DC120 or DC160 control board. neutral power 01 • red wire Confirm the model of your control board. -
Page 11: Dc120 And Dc160 Control Board Diagram
05. SETTINGS DC120 AND DC160 CONTROL BOARD DIAGRAM DIP SWITCH 1 LOCK SHUNT Depending on the dimension of the curtain, FLAMA could be supplied with a DC95, DC120 or CURTAIN OPERATING MODE FIRE TEST DC160 control board. Confirm the model of your control board. -
Page 12: Limit Switches Programming
05. SETTINGS LIMIT SWITCHES PROGRAMMING • LEGEND OF THE PROGRAMMING VALUE • PROGRAMMING THE INTERMEDIATE POSITION VALUE PROGRAMMING Opening position Intermediate Stop 3 4 5 Closing position If the door is operating in the 3 4 5 wrong direction, change on dip 4. -
Page 13: Set The Intermediate Stop Time 12A
05. SETTINGS 06. AUXILIARY INFORMATION SET THE INTERMEDIATE STOP TIME MANUAL OPERATING MODE • INTERMEDIATE STOP TIME It is possible to use the fire door in manual mode. To do this, access the inside of the maneuvers board and slide the door operation switch (page 9/10). From that moment, it will Minimum value 001 seconds be possible to open and close the door using the up and down buttons. -
Page 14: Troubleshooting
07. TROUBLESHOOTING FINAL CONSUMERS AND SPECIALIZED TECHNICIANS INSTRUCTIONS Problems Causes Solutions • Make sure that there are no malfunctions with the power supply, the power cord plug or the The green light turns off • Energy failure fuse. • Make sure that the transformer is not on short-circuit. Yellow light turns off •...
