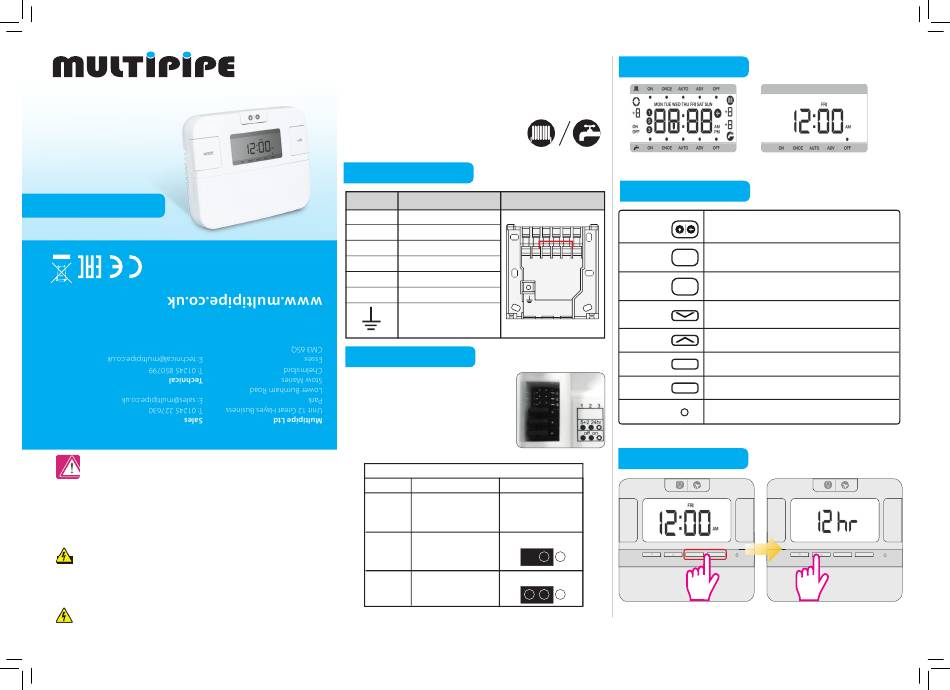

Multipipe 22-23015 Installer Manual

Single Channel Digital Time Clock
for 230V
Model: 22-23015
INSTALLER MANUAL

Introduction

A programmable controller is used to switch the heating system and/or the hot
water in your home on and off as needed. It works by controlling the central
heating and/or the hot water with programmed settings that take eff ect at
diff erent times of the day.

Product Compliance

EU Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU.

Safety Information

Safety Information
Use in accordance with the EU and national regulations.
For indoor use only.
Keep your device completely dry. This product must be installed by a competent
person and in accordance with all the EU and national regulations.
Always isolate the AC Mains supply before installing or working on any
components that require 230 VAC 50Hz supply.
Thank you for purchasing the 22-23015 Single Channel Digital Time
Clock for 230 V.
The Single Channel Digital Time Clock is recommended for users that
want to control only the Central Heating or the Hot Water system.
22-23015 Single Channel Digital Time Clock
CH or HW
Input: 230V, 50Hz

Installation

Output: 3A/ switch terminal
Terminal Description
N Mains Neutral
L Mains Live
1 Not Used
2 Not Used
3 Volt Free Connection
4 Volt Free Connection
Earth Parking
( )
no electrical connection

Jumper Settings

Changes to the jumpers settings should
only be made by the Engineer carrying out
the installation or other qualifi ed person.
The installer should select the jumper
positions required if changes need to
be made to the factory default settings.
These jumpers are found on the rear of the
controller.

22-23015 Switching Bridges

Switch Feature
22-23015 Settings
Fully pumped system(P*)
System
or gravity-fed hot water
system(G*)
5-2 days programme or
Program
24h programme
Memory Disable/enable the internal
Backup backup battery
* P - Fully pumped system for independent Central Heating and Hot Water.
* G - Gravity Hot Water system with Pumped Central Heating.
First Power Up

Button Function

Backplate
Backlight/
Holiday
Mode
MODE
N L 1 2 3 4 N L 1 2 3
+1Hr
+HR
Down
Up
Select
SELECT
Set
SET
Reset
Setting Date And Time
NA
MODE
5-2
SELECT
OFF
3 sec
Press and hold the indicated
buttons together for 3 sec.
1. Turn on the LCD backlight
2. Press for 3 sec to activate Holiday mode
Select operating mode (ON, ONCE, AUTO, ADV, OFF)
4 5 6
Activate/deactivate Boost function
Decreases the selected setting
Increases the selected setting
Select a clock or programme setting
Sets a clock or programme setting
Reset to Factory settings
+Hr MODE +Hr
SET SELECT SET
Choose your clock format
and press Select.
