HM700ACYL2
ELECTRODE STEAM HUMIDIFIER
CYLINDER REPLACEMENT
CAUTION
Before Servicing
1. Disconnect main power source before
accessing internal compartments.
2. The plumbing and electrical compartments
contain high voltage components and
wiring. Access should be limited to licensed
HVAC professionals only.
3. During and following operation of the
humidifier, the steam components in
contact with the steam such as the cylinder,
steam lines, steam distributors, and
condensate lines can become hot and burn
if touched. Please consult HM700
Installation manual for reference.
4. Installations of humidity equipment
installed by unqualified personnel or the
use of non-Resideo parts and components
will void warranty.
MAINTENANCE
The HM700 humidifier has been designed to require
very little maintenance. Regular maintenance
consists of checking the humidifier to ensure it is in
good condition, replacing the cylinder when the
software advises that the cylinder is spent, and
cleaning out the drain valve whenever the cylinder is
replaced.
Included in the Box
• Replacement Cylinder
• New O-Ring
• Installation Instructions
Tools Needed
• Screwdriver
• Pliers
• Wrench
INSTALLATION INSTRUCTIONS
SPECIFICATIONS

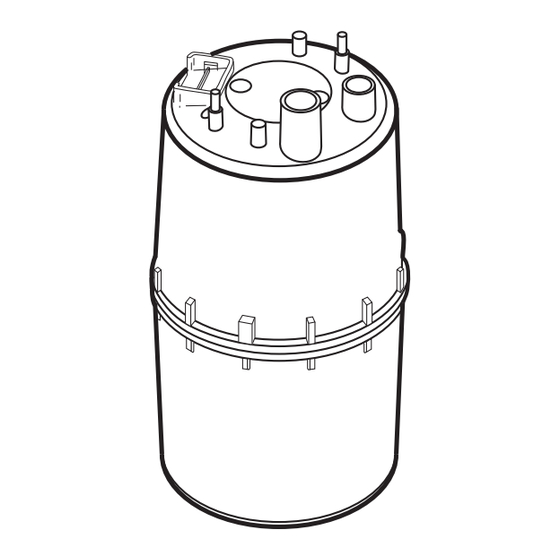

Product Name: HM700 Replacement Canister
Product Number: HM700ACYL2
Dimensions: See Fig. 1.

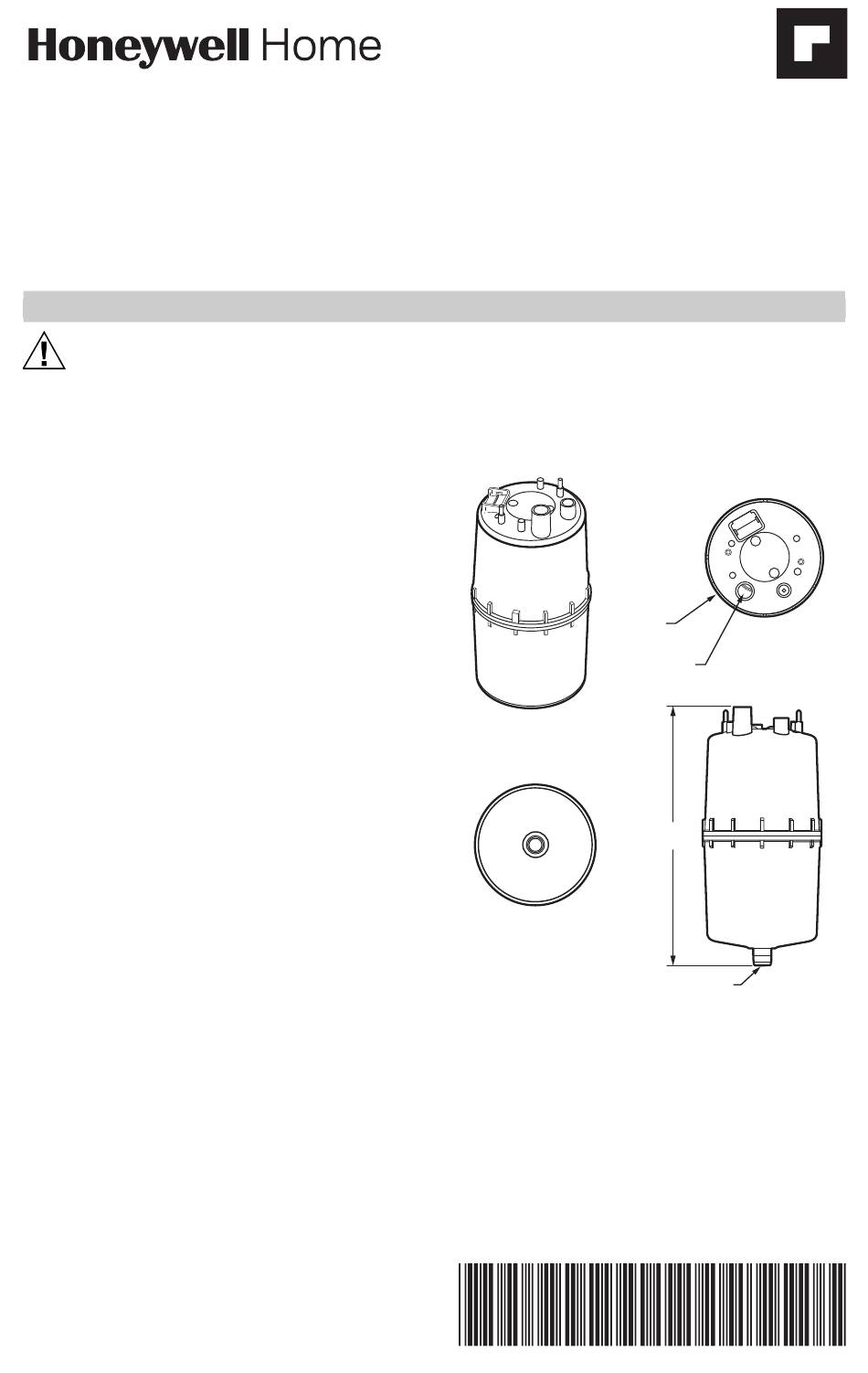

Fig. 1. Dimensions in in. (mm).
Cylinder Spent Fault
When the cylinder is spent the HM700 will stop
operating and the yellow LED will flash in a repeating
pattern of 4 flashes. At this time the cylinder must be
replaced.
The steam cylinder is disposable and must be
replaced at end of cylinder life. Cylinder life is
dependent on water supply conditions and humidifier
use.
Ø 5-45/64
(145)
STEAM OUTLET
7/8 (22) O.D.
12-13/32
(315)
WATER INLET
AND DRAIN
33-00159EFS-03
M35703
