The Custodian
Control Panel
Front-Fixed Installation
Installation and Maintenance Instructions
CN2DF-FF
CNMIXBT-FF
CN1SF-FF
CN2VDFMIXBT-FF
CN2VSHBMIX-FF
CN4BSHDFMIX-FF
I00335_Jun 20
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: 02 8536 4000 info
enware.com.au
@
®
Advertisement
Table of Contents
Summary of Contents for enware Custodian CN2DF-FF

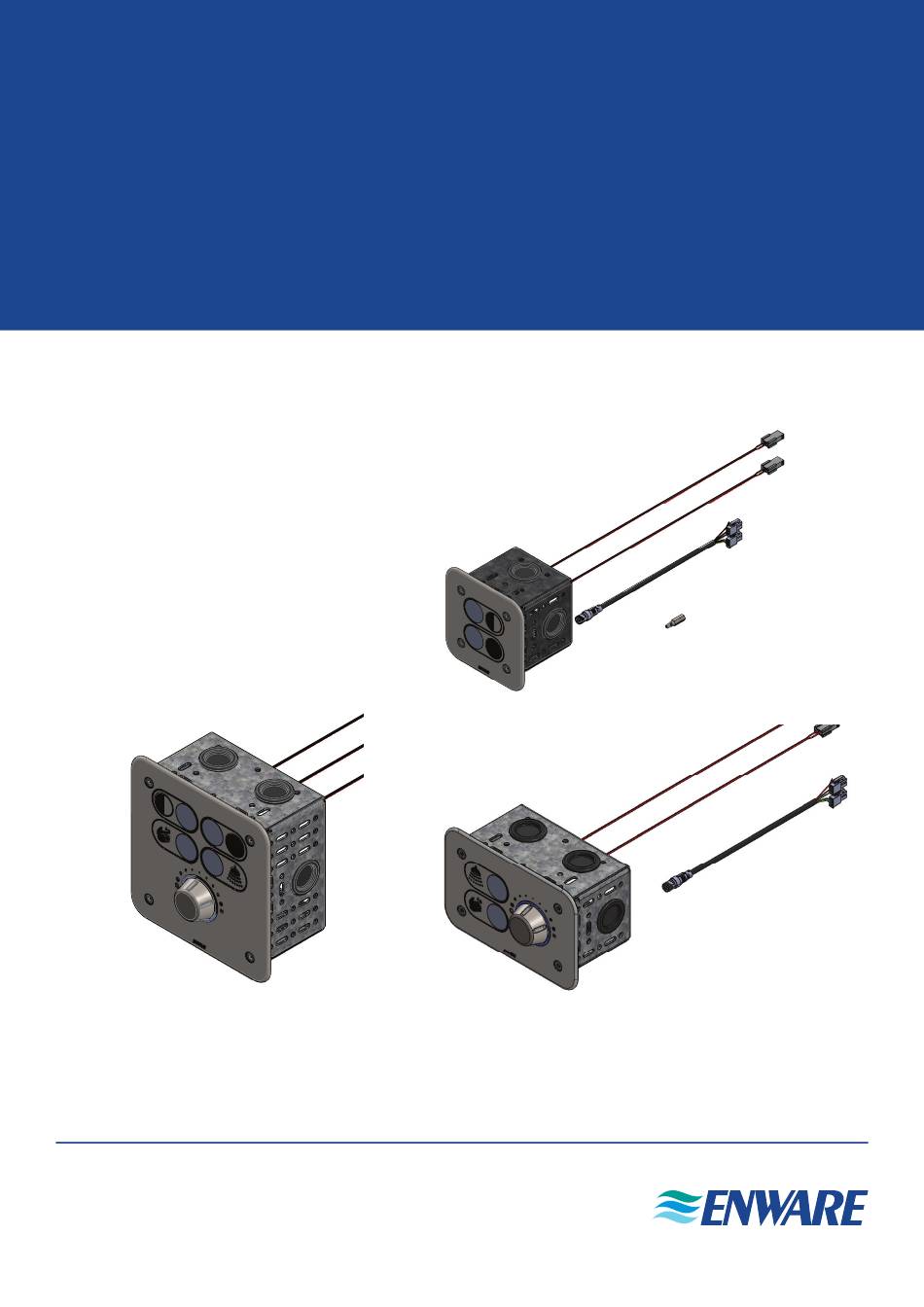

- Page 1 The Custodian ® Control Panel Front-Fixed Installation Installation and Maintenance Instructions CN2DF-FF CNMIXBT-FF CN1SF-FF CN2VDFMIXBT-FF CN2VSHBMIX-FF CN4BSHDFMIX-FF I00335_Jun 20 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: 02 8536 4000 info enware.com.au...
-
Page 2: Technical Data
IP Rating - Temperature Adjustment Wheel IP 68 installation compliance Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions. -
Page 3: Installation
1. Determine wall depth and cut out size according to the control plate size. WALL DEPTH & CUT OUT SIZE CN2DF-FF CNMIXBT-FF CN1SF-FF 90 W x 90 H x 90 D Wall Depth 90 - 110 mm www.enware.com.au Call 1300 369 27... - Page 4 WALL DEPTH & CUT OUT SIZE CN2VDFMIXBT-FF CN2VSHBMIX-FF 155 W x 90 H x 90 D Wall Depth 90 - 110 mm CN4BSHDFMIX-FF 155 W x 155 H x 90 D Wall Depth 90 - 110 mm Call 1300 369 273 www.enware.com.au...
- Page 5 (Use anti-pick silicone or silicone sealant of appropriate grade as required) 4. Fit control facia plate into position. Feed the cables through any of the half- blind rubber grommets, or through the rear of the bracket box. www.enware.com.au Call 1300 369 27...
- Page 6 (supplied) to hand-tighten the screws. Do not overtighten. TT25 Torx 6. Seal edge of front plate with silicone sealant to finish off the installation. (Use anti-pick silicone or silicone sealant of appropriate grade as required.) Call 1300 369 273 www.enware.com.au...
-
Page 7: Cable Connections
Connect cables to Smart Board eTMV Control Hub. Each cable is labelled with an I.D. number. Connect the two cables with the matching cable I.D. numbers. CABLE CONNECTIONS TO CONTROL PANEL FULL FLUSH SINGLE FLUSH WC WC FULL FLUSH www.enware.com.au Call 1300 369 27... - Page 8 CABLE CONNECTIONS TO CONTROL PANEL DUAL FLUSH FULL FLUSH HALF FLUSH HALF FLUSH FULL FLUSH SHOWER & BASIN SHOWER BASIN BASIN SHOWER Call 1300 369 273 www.enware.com.au...
- Page 9 BASIN, SHOWER & WC FULL FLUSH CABLE 1 C1 HALF FLUSH CABLE 1 C2 COMBINATION SHOWER CABLE 2 C1 BASIN CABLE 2 C2 CABLE 1 CABLE 2 HALF FLUSH BASIN FULL FLUSH SHOWER www.enware.com.au Call 1300 369 27...
-
Page 10: Access To Components
ACCESS TO TEMPERATURE CONTROL WHEEL (TLI) ACCESS TO PIEZO BUTTONS 1” (25.4mm) Call 1300 369 273 www.enware.com.au... -
Page 11: Spare Parts
Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. -
Page 12: Making A Claim
All notifications and accompanying forms must be sent to us marked for the attention of the Enware Australia Pty Except as provided or referred to in this document, we Limited, 9 Endeavour Road, Caringbah NSW 2229. We...
