#722151, Side Roller Table for 15-inch Planer
IMPORTANT SAFETY INSTRUCTIONS
•
Review all instructions before assembling the table. Improper assembly can cause personal injury and/or property damage.
•
Familiarize yourself with all safety and operating instructions for your JET planer before using this accessory.
•
Do not overload the side table.
•
Do not stand on the side table.
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other substances known to the
State of California to cause cancer. Avoid inhaling dust generated from wood products or use a dust mask or other safeguards for
personal protection.
Wood products emit chemicals known to the State of California to cause birth defects or other reproductive harm. For more
information go to http://www.p65warnings.ca.gov/wood.
Tools required for assembly:
Hex keys 4mm,5mm
Open-end wrench 13mm
Bubble level
Assembly instructions

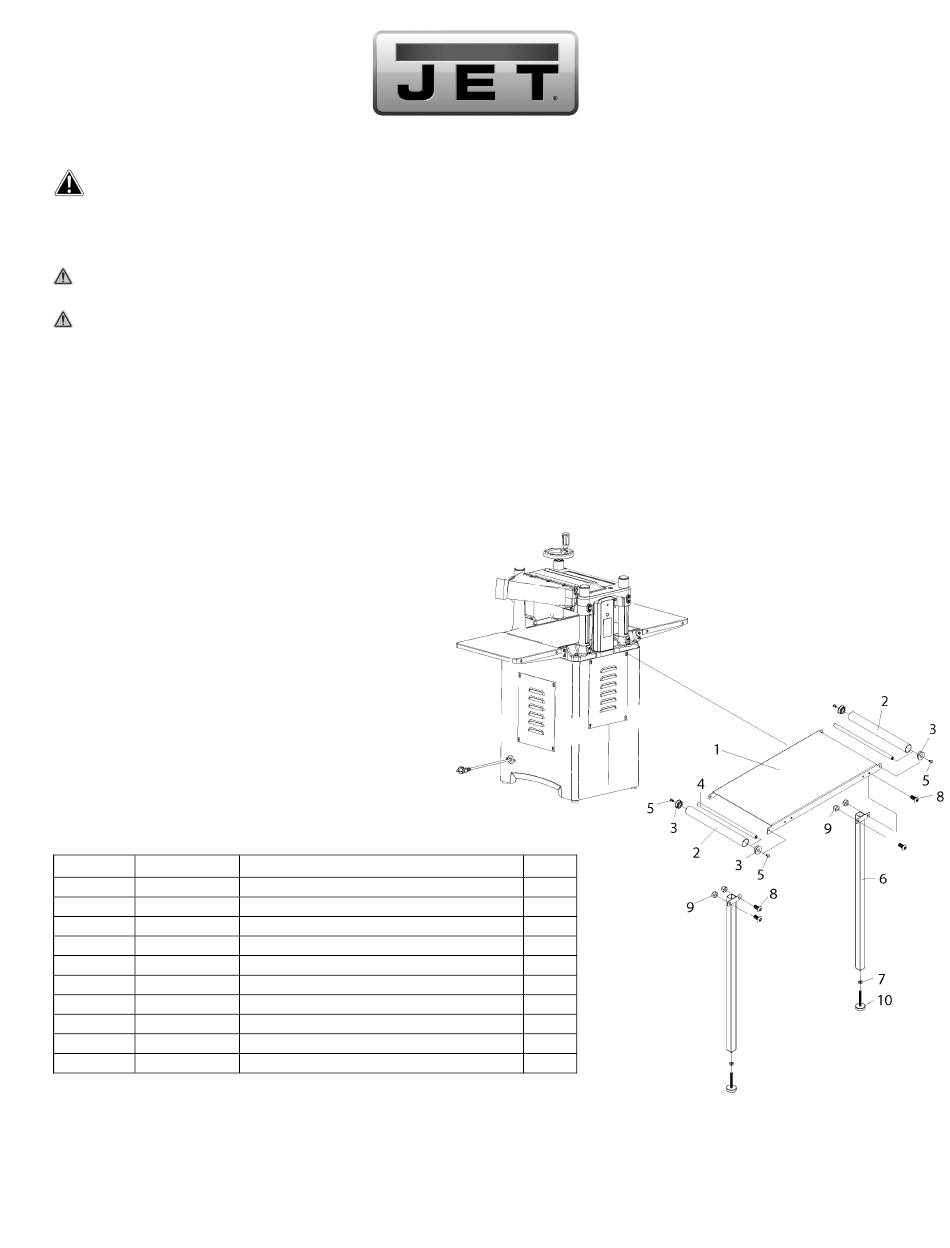

Numbers in parentheses refer to drawing.
1. Screw leveling pads (10) with hex nuts (7) into leg
ends.
2. Install legs (6) to inside table edge and tighten screws.
3. Install table to drive belt side of planer, using the
existing screws in planer. Do not fully tighten.
Place a level on table in both directions, and turn pads
4.
(10) in or out until table is level. Tighten nuts (7) up
against legs to secure setting.
Fully tighten screws on planer.
5.
Replacement Parts
Index no. Part no.
1
JWP15B-801
JWP15B-802
2
3
JWP15B-803
JWP15B-804
4
5
TS-2246102
JWP15B-806
6
7
TS-1540061
8
TS-2248162
TS-1541031
9
10
JWP15B-810
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.jettools.com
Description
Roller Table
Roller
Bushing
Shaft
Socket Head Button Screw M6x10
Leg
Hex Nut M8
Socket Head Button Screw M8x16
Hex Nylon Lock Nut M8
Leveler Pad
Qty.
1
2
4
2
4
2
2
4
4
2
Copyright © 2020 JET, a Division of JPW Industries, Inc.
Part No. M-722151
Edition 1 02/2020
