Related Manuals for Insidevision insideONE
Summary of Contents for Insidevision insideONE

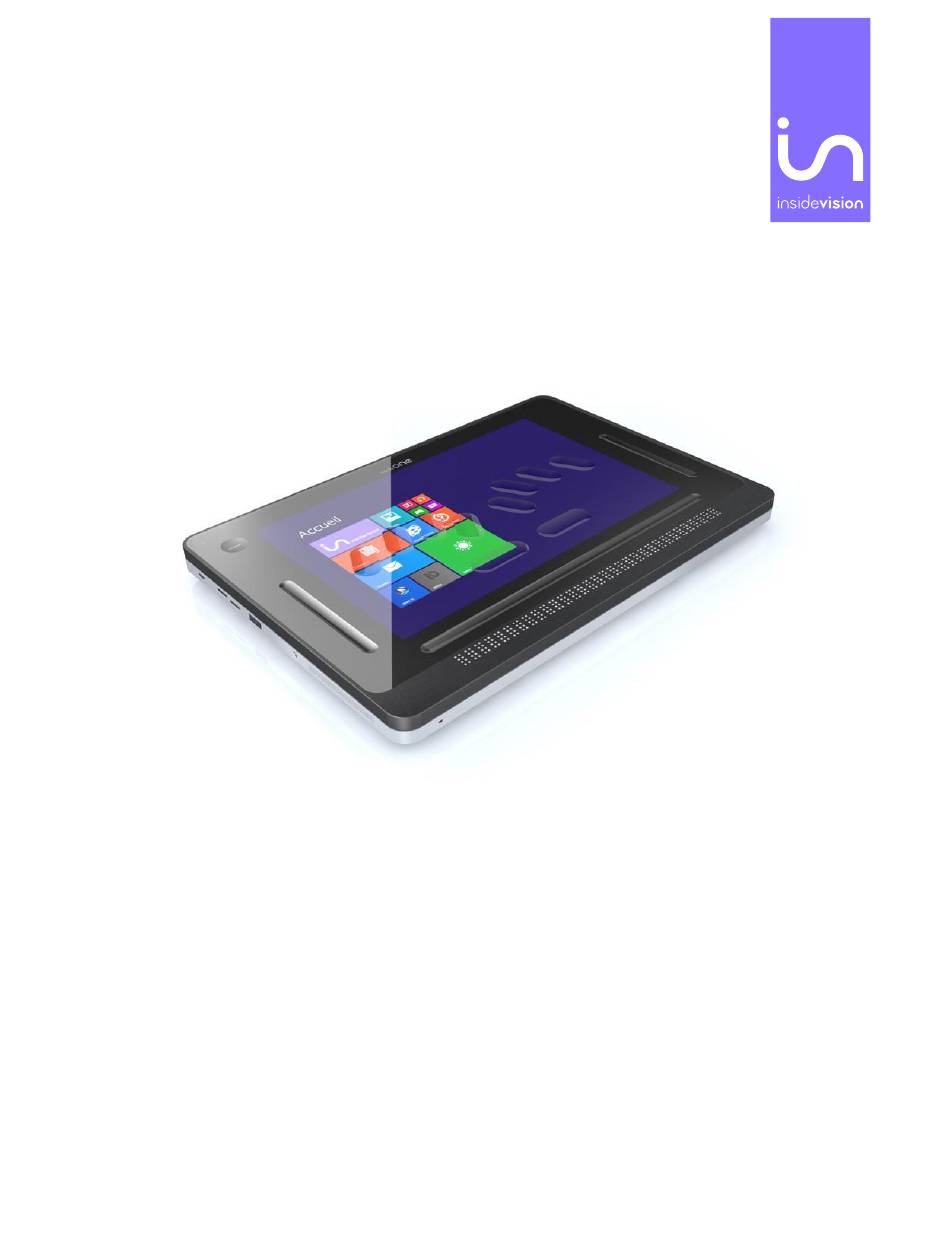

- Page 1 USER MANUAL Insidevision – v.3.0_320 Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 2: Table Of Contents
Starting up and shutting down ..........................8 Turning on the insideONE ..........................8 Shutting down insideONE Using the Windows Desktop ................. 8 Shutting down insideONE Using the Control icon on Windows desktop ............8 Sleep Mode ..............................9 Hibernate................................. 9 Interacting with the insideONE ........................... - Page 3 The Pop menu of Note ..........................23 Switch................................24 Settings................................25 Control ................................26 insideOne boot up process options ......................27 Windows ................................27 NVDA ................................. 27 JAWS .................................. 27 Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
- Page 4 Appendix E: Screen (when keyboards are inactive) ..................34 Appendix F: Braille shortcuts ..........................36 Appendix F: F keys shortcuts ..........................38 Appendix H: key combinations.......................... 38 Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 5: Let's Begin
The tablet’s 4GB of RAM, and quad-core Intel Atom processor clocked at 1.9 GHz allow the insideONE to boot up quickly. The insideONE has a 64 GB eMMC drive with the ability to expand storage capacity by an additional 256 GB using a Micro SD card. A 128 GB Micro SD card is provided. -
Page 6: Left Side
Orientation to the bottom panel of insideONE There are four rubber feet on the bottom of the insideONE to keep it stable, and to prevent it from sliding around when in use. Between the two rubber feet nearest the braille display is a printed label with the serial number, electrical information, and standards with which the insideONE complies. -
Page 7: Placement Of The Right Hand On The Braille Keyboard
Above the Left Slider is a circular button with a depression in its center. Like the sliders, it allows you to use gestures when working with the insideONE. Simply Called “Button,” it measures just over half an inch in diameter. -
Page 8: Let's Use It
Let’s use it Starting up and shutting down Turning on the insideONE To turn on the insideONE, press the Power button located on the top right side of the tablet for a few seconds. insideOne boot-up options The tablet boots up based on the default combination of the two available screen readers, JAWS and NVDA as well as the Home environment, an easy-to-navigate interface for a variety of blindness-focused applications. -
Page 9: Sleep Mode
To restart it, press the Power button again. Sleep Mode To conserve battery and shorten the time it takes the insideONE to boot up, you can put it in sleep mode. In this mode, resuming your work on the device is much faster than it is after completely shutting down. -
Page 10: Description Of Insideone Gestures
Home, NVDA, or JAWS. The following is a brief description of the types of gestures that can be used with the insideONE. Please see the appendices at the end of this manual for all gestures available to users of the insideONE. -
Page 11: A Note On Working With Sliders
To switch to the JAWS gestures, you need to perform a five-finger rotation gesture on the screen. To come back to the insideONE gestures, close the QWERTY keyboard by swiping down 1 finger in the left slider. Gestures can be performed in different places on the tablet. -
Page 12: The Braille Keyboard
Choosing a braille grade in Home In Home, you can choose between G0, G1 or G2, by going to the Settings/Braille menu. Before changing the braille grade, close all open Home applications. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 13: Choosing A Braille Grade When Nvda Is Enabled
"just" is written using the letter J, which is made up of only three dots. The display will use simbraille to indicate the dots an insideONE user has typed in cases where a word is made up of fewer letters than correspond to the number of print letters. Though some words may be shown on the Alphanumeric Transcription Bar in simbraille, the text will be displayed correctly in print on the screen. -
Page 14: The Home Environment
The state of an object will be indicated by using Yes or No. An object which is inaccessible to users of the insideONE who are blind will have a G in brackets following the name of the object. The equals sign indicates an edit field. -
Page 15: Moving Between Objects Of The Same Type
If you wish to bring the braille back to the focused object, swipe 2 fingers to the top in the bottom slider. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... - Page 16 Inside the same group, objects are of the same type. Use the arrow keys (one-finger swipe left or right across the right slider) to navigate between the objects. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 17: Home Menu Items
Home menu items Apps is a collection of applications specifically designed to simplify a user interaction with the insideONE to perform operations such as notetaking, file management, printing, emailing and other. Explorer, is a file manager to explore the content of the insideONE. -
Page 18: Navigation
Explorer, you find yourself in this group by default. When Explorer is started, Content displays Home folder and then current drives, u.C by default (which corresponds to the insideONE hard drive). If a USB stick is connected, it will be displayed in a row. Files created in Home applications will be saved in the Home folder by default. -
Page 19: The Run Menu In Explorer
To cut use the keyboard shortcut Ctrl+x • To paste use the keyboard shortcut Ctrl+v • To delete use the Del command (d+key 9+key 0) • To rename use the F2 command Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 20: Note
It has 3 groups of different types, named Begin, Save and Actions. When launching Note, you will find yourself in the Begin group. The Begin group The Begin group includes the following options: New, Open and Import. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... - Page 21 Select the temporary document or the name of your existing file, then rename the file and select the Ok button. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
- Page 22 If you click on No for a new document, it will be lost and the app closes. For an already named document, the modifications made since the file has been opened will be lost. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 23: The Pop Menu Of Note
• You can select a word with a one-finger triple-tap above the word. • You can extend your selection word by word swiping 2 fingers right or left. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 24: Switch
If it is a Note file, you will see the sequence number and the file name. To exit Switch, you can use the Escape command, or click on the parent element, or use the command to get back to the welcome menu. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 25: Settings
The message will disappear when 2% of charge are exceeded. Date and Time lets you know date or time provided by Windows. If the information is wrong, it is necessary to adjust values in Windows. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 26: Control
Control Control lets you choose how you wish to start or shut down the insideONE. The menu shows Stop and Launch. Stop lets you choose between Shutdown, Restart and Hibernate. For more information on the different sleep modes, see chapter 4.3. -
Page 27: Insideone Boot Up Process Options
With insideONE you can use either NVDA or JAWS as a screen reader. NVDA InsideOne is using the NVDA screen reader (Non Visual Desktop Access) to give you access to Windows and its numerous applications. You must use the standard Windows and NVDA commands using gestures and the insideONE keyboard. -
Page 28: Technical Support And Troubleshooting Your Tablet Remotely
When Administrator is selected, Windows 10 File Explorer is loaded. You find yourself in the default user section. Technical Support and Troubleshooting Your Tablet Remotely Should you experience any issues with the insideONE, or need to send it in for repair, please contact your local distributor. Remote Assistance It is possible to have someone control the insideONE remotely in order to troubleshoot or offer technical support. -
Page 29: Care And Maintenance Of Insideone
Do not allow moisture to get into any of the insideONE’s ports. Also, do not allow liquids to come into contact with the insideONE. Damage caused by moisture or liquid is not covered under the manufacturer’s warranty. -
Page 30: Appendices
Bottom Slider the current position of the with two fingers position of the cursor cursor (not with JAWS) Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... - Page 31 Bottom Slider fingers right cancels the last action Ctrl+Z then left swipe three Bottom Slider fingers left then repeats the last action Ctrl+Y right Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 32: Happendix B: Button
QWERTY when JAWS is enabled, use Left Slider seconds keyboard; Windows gestures. To switch to JAWS gestures, rotate 5 five fingers on a screen Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 33: Appendix D: Right Slider
Swipe left with two fingers object of a different (put one finger above the NVDA – JAWS: Shift + tab type/moves the cursor other) to the previous word Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... -
Page 34: Appendix E: Screen (When Keyboards Are Inactive)
Screen swipe down with two fingers the current position of the current position of the cursor Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... - Page 35 Screen repeats the last action Ctrl+Y right From the swipe down with four fingers goes to Home desktop None outer top of the screen Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 36: Appendix F: Braille Shortcuts
Ctrl 1+4+0 Delete 1+4+5+9+0 4+5+6+9+0 Enter 8 or 9+0 Escape 1+5+0 Home 1+2+3+9+0 Insert 2+4+9+0 Line break 1+2+9+0 Mute Volume 1+2+3+6+9+0 Number lock toggle 8+0 twice quickly Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971... - Page 37 0 or 9 2+3+4+5+0 Volume Up 1+2+3+6+0 Volume Down 1+2+3+6+9 Windows 2+4+5+6+0 Specific shortcut for Home menu 1+2+5+9+0 Specific shortcut for Home Control menu 1+4+0 then 1+0 then 1+2+5 Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
-
Page 38: Appendix F: F Keys Shortcuts
To add keys to Windows modifiers such as CTRL, ALT, make the combinations in sequence on the braille keyboard.… Example: to read the next column with JAWS: Windows + ALT + Right arrow, press 2+4+5+6+0 then 1+0 then 5+9+0. Insidevision Inc.|30 Saint Cloud Avenue | NEEDHAM – MA - 02492|contact@Insidevision-inc.com|www.Insidevision-us.com|781 799 2971...
