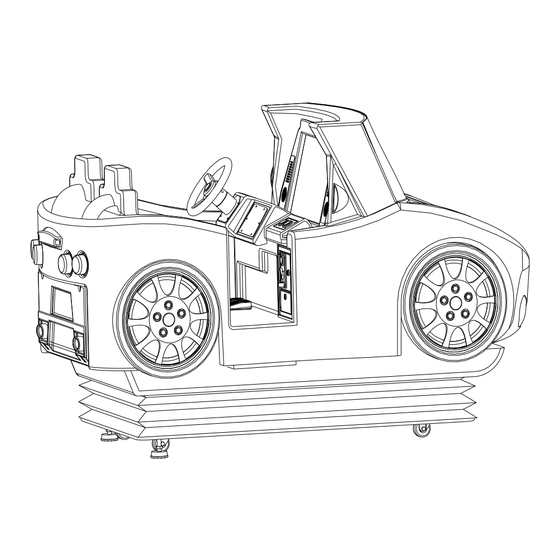

MecPower Tecway HAPPY CAR Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HAPPY CAR MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAPPY CAR and is the answer not in the manual?

Questions and answers

Summary of Contents for MecPower Tecway HAPPY CAR

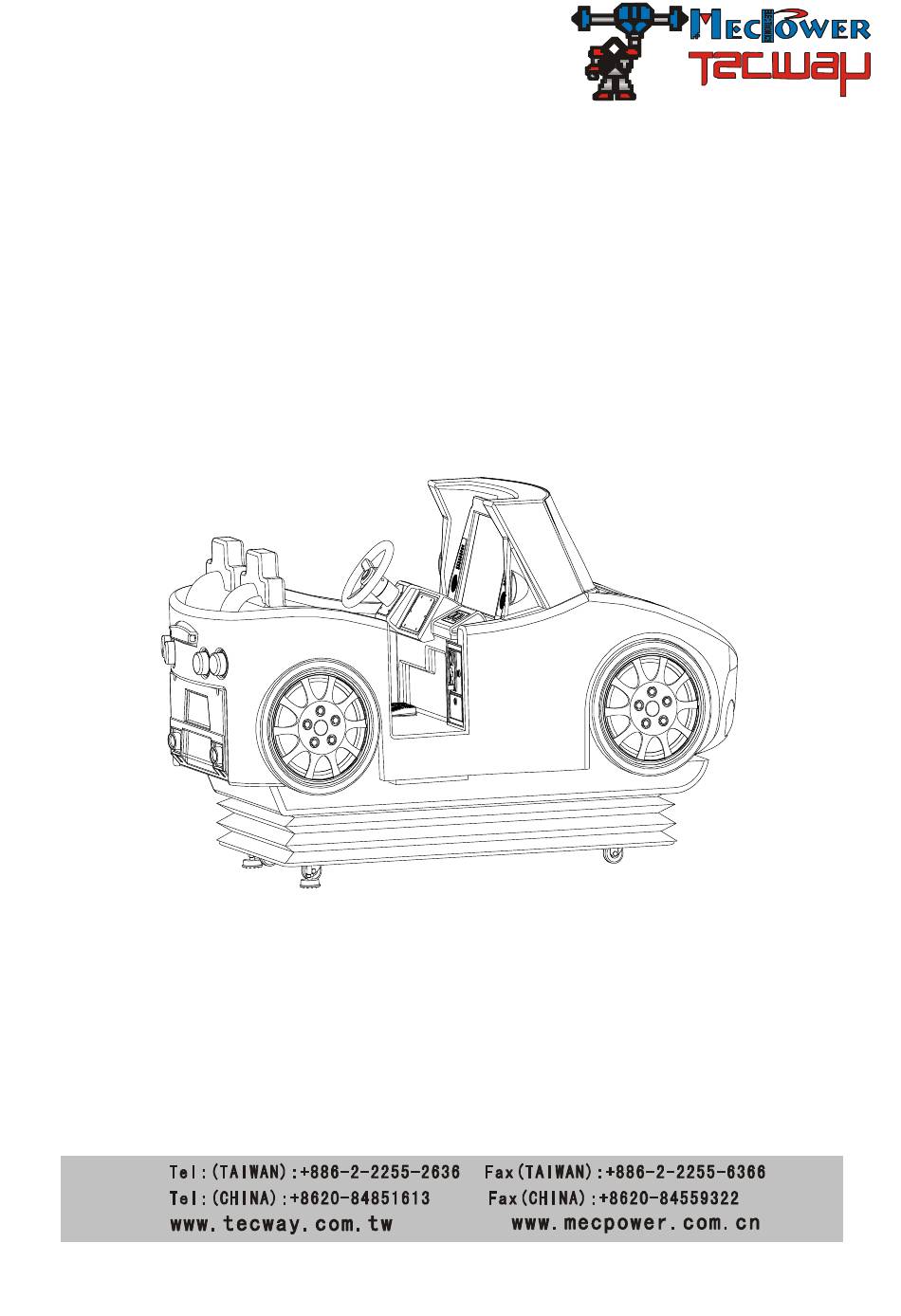

  • Page 1 HAPPY CAR MANUAL...
  • Page 2 PLAYING INSTRUCTIONS: 1. Insert coin and the game will start automatically after several seconds. 2. Move the steering wheel to control the direction of the car and press accelerator pedal to speed up. 3. Press windscreen wiper button, there will be wiping effect displayed. 4.

  • Page 3: Technical Parameters

    TECHNICAL PARAMETERS: Voltage: AC 220V/110V（50/60Hz） Max. current: 1.5A/3A (Note: The proper voltage and current used accords to the nameplate at the back door of the game.) Max. power: 215W Power (standby mode): 80W Coin size: φ21mm ~ φ30mm(diameter) 1.2mm ~ 2.5mm(thickness) Capacity of coin box: about 1600 pcs with coin size φ25mm*1.5mm Location required: indoor use;...
  • Page 4 Parts & Accessories shipped with the game: DRAWING NAME SPEC/MODEL LED bulb 12V white LED bulb yellow, white LED bulb Micro switch 1285 ＃ 1396 ＃ Power cord Manual...
  • Page 5 Check the connection (1). Check if the inner structure of the game is loose caused by transportation or the terminals drop. (2). Check if the game is grounded. (3). Check if the resistance of the GNDs is more than 100 megohm. (4).
  • Page 6 b) Hold the plug to pull it out from the socket. c) Do not touch the plug with wet hands. d) Make sure the voltage and fuse used are proper. ！ w a rn in g B e fo re in p u tin g th e p o w e r, p le a s e c h e c k th e re sis ta n c e b e tw e e n in p u t p o rt a n d G N D . M a k e s u re th e co n n e c tio n is p ro p e r.
  • Page 7 Check before operation: 1. Confirm the power cord is properly plugged and without any damages. 2. Confirm the game is properly fixed. 3. Confirm the cabinet of game is without damages and burrs. 4. Confirm the surface of game is clean and with proper marks. Daily operation: Please properly refer to the instructions above to check the game before operation.

  • Page 8: Game Settings

    GAME SETTINGS: Steering wheel 方向盘 Speaker button 喇叭按键 Setting board 设置板 设置板 Setting board SELECT Setting key 设置键 TEST ENTER SERVE ERASE 免费键 Free play key TEST: enter into setting menu. SERVE: for free play Move the steering wheel: move clockwisely to select downward the item / increase the value of setting;...
  • Page 9 Instructions: Press TEST to enter into setting menu. Move the steering wheel to select the item you would like to change; Press the speaker button to swift to value changing mode; Move the steering wheel to change the setting of the item; Press again the speaker button to swift to item selection mode.
  • Page 10 ADJUSTMENT Adjust the coin mech: adjusting chip of entrance sample coin chute micro-adjust resistance power/signal input GRAY COUNTER(+/-) DC+12V coin reject bar WHITE COIN SIGNAL BLACK GROUND GRAY COUNTER(-/+) COIN signal SW N.O. accurate normal N.C. 100ms SLOW 50ms MEDIUM COIN signal wavelength 25ms FAST adjusting SW...
  • Page 11 Adjust the volume: 1. Find the amplifier board on the back of the game, as below drawing shown: Amplifier board 功 放板 Sound potentiometer 音量 电位器 Amplifier board 功放板 2. Twist the volume potentiometer on amplifier board to adjust the volume. Note: Please slightly twist the potentiometer and do not quickly twist the potentiometer to the right side to avoid any damage of speaker...

  • Page 12: Check And Maintenance

    CHECK AND MAINTENANCE Daily check ITEMS DESCRIPTIONS Coin mech Check if the coin mech can work properly. Steering wheel Check if the steering wheel can work properly. Button Check if the button can work properly. Accelerator / brake sw Check if the accelerator and brake can work properly. Game’s movement Check if the game can move properly.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSES SOLUTIONS No sample coin. Insert sample coin into the coin mech. Sensitivity for coin getting through Can't insert coin Adjust the coin mech. the coin mech was stting too high. Coin mech is bad. Replace the coin mech. Bad connection of lights Reconnect the wires of lights.
