Summary of Contents for ODES Zeus Ultra 2019
- Page 1 ODES Zeus Ultra 2019 Owner’s Manual 2018-12-04 1800033...
- Page 2 e continually strive to bring you the highest quality, full-featured products. As a result, you may find that your actual display screens may be slightly different than what was represented in this manual at the time of printing. 2018-12-04 1800033...
-
Page 3: Table Of Contents
Table of Contents Product Information ..............................5 Care and Maintenance..........................5 Basic Navigation Features ............................6 Home ................................ 6 Video / GoPro ................................8 Music ..................................11 FM and AM Stations ..........................11 Bluetooth ..............................12 USB Connected Device .......................... 14 Weather .............................. - Page 4 - THIS PAGE INTENTIONALLY LEFT BLANK - 2018-12-04 1800033...
-
Page 5: Product Information
Product Information The Zeus Ultra 2019 display is designed for instrumentation and control of your ODES ATV and UTV vehicles. The display enables vehicle operators to view many different engine parameters and fault indicators. It is a multifunctional tool that provides multiple viewing screens, customizable settings, GPS tracking and navigation as well as a stereo with added Bluetooth functionality. -
Page 6: Basic Navigation Features

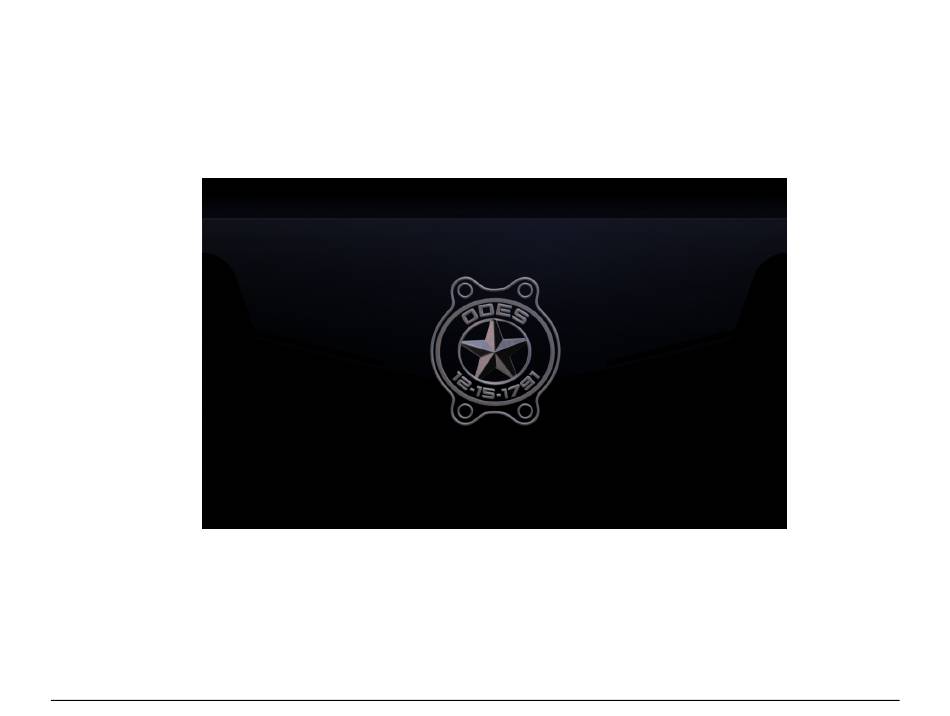

Basic Navigation Features All product features are easily accessed through Touch Point commands and Menus. Home The unit opens to the Home screen. Displayed on this screen are the following: RPM / KPH / MPH • • Engine Hours • Fuel Level •... - Page 7 The Touch Points on this screen control the following functions: Touch Point Touch Point Main Screen Displays the volume controls. Mute/Unmute Bluetooth Controls Music Switches / Heater Maps Settings Video / GoPro 2018-12-04 1800033...
-
Page 8: Video / Gopro
Video / GoPro Touch the Video / GoPro icon and the following screen will display: There are two video cameras to view. Touch Front to see video from the front of the vehicle, and touch Rear to see video from the rear of the vehicle. Touch to access the GoPro functions and the next screen will appear:... - Page 9 Select the name of the GoPro camera from the list shown. Touch Refresh if the name does not appear. Enter the specific password for the GoPro camera and touch Submit. 2018-12-04 1800033...
- Page 10 If the password is correct, touch the green screen to begin streaming video from the GoPro camera. Video: Allows the recording of action video. Touch the to begin and end the video recording. Photo: Allows single photos to be taken. Multi Shot: Allows rapid fire photos in sequence to be taken.
-
Page 11: Music
Music Touch the Music icon then touch the selector button to choose the source: FM and AM Stations Select FM and the following screen will appear: To create a saved station, navigate to the desired setting with the controls. Press and hold one of the ten slots to save a station for approximately 5 seconds and the display will appear as follows: 2018-12-04 1800033... -
Page 12: Bluetooth
Select Bluetooth from the screen (choices shown on page 8 of this manual). Ensure your device’s Bluetooth is set to ON. The ODES display will show any devices that it detects, as shown to the right, or touch Add New Device. - Page 13 Action Touch the ODES display name in the My Devices list on your device, or your device’s name on the ODES display and it will begin to connect. ODES will display the message shown at right stating that a pairing has been requested. At the same time, your device will ask if the pairing is approved.
-
Page 14: Usb Connected Device
Having your phone connected to the ODES display provides a benefit of knowing when you’ve missed a phone call and/or a text message. These both display one missed phone call and no missed text messages. USB Connected Device Touch the USB Library icon to read the contents of the USB drive. -
Page 15: Weather
Weather ODES has provided seven National Oceanic and Atmospheric Administration (NOAA) Weather Radio channels to review weather conditions. Simply touch one of the seven buttons shown. Navigation Touch the Navigation icon and the following screen will appear: 2018-12-04 1800033 -15-... - Page 16 Component Description North Up and Course Up. Touching these icons will orient the map to show either North at the top or the course heading at the top. Zoom in / Zoom Out. Touch the + to Zoom In and the – to Zoom Out. You may also use two fingers to stretch (Zoom In) and pinch (Zoom Out) the display.
-
Page 17: Navigation Settings (Waypoints, Tracks, Satellites And Maps)
Navigation Settings (Waypoints, Tracks, Satellites and Maps) Brightness: Touch the – or + buttons, or the progress bar itself to decrease or increase the brightness. Waypoint Manager This setting will list all the currently saved Waypoints and give the ability to record a track to that waypoint, display the waypoint on the map, edit the waypoint name and delete the waypoint. - Page 18 Waypoint Importer Insert a USB drive with a .gpx file into the USB port. Touch Import, then touch Import again on the appropriate file list that appears. Export Waypoints Touching this will display a keyboard. Ensure a USB drive is inserted, name the export file and touch Save.
- Page 19 Track Importer Insert a USB drive with a .gpx file into the USB port. Touch Import, then touch Import again on the appropriate file list that appears. Export Tracks This line will display “Export All Tracks?” Select Yes or Cancel, and ensure a USB drive is in place to which the tracks will be copied.
-
Page 20: Communications
This screen displays the current device paired (not connected) via Bluetooth. Touch Connect to link the devices, or Forget to erase that device from the ODES memory. displays the Missed Call Log. displays the Message Log. displays the list of paired devices. From that screen the Connect process may be initiated. -
Page 21: Controls
Controls Touch the Controls icon and the following page will appear: Touch the Light Bar selection to turn on (illuminated) or off (dark). Touch the Driver and Passenger Seat Heaters to turn on Low, High or off. Settings Touch the Settings icon and this page will appear: 2018-12-04 1800033... -
Page 22: User Settings
User Settings Available Languages to choose from are English, Spanish, Chinese, Dutch, Italian, French (Canadian or European), German and Russian. Select US Standard (ex: MPH) or Metric (ex: KPH) for the Units. Select the 12 hour or 24 hour (Military style) clock format. -
Page 23: Map Settings
Map Settings Navigation Settings shown earlier in this document. System Info Update Software: Insert a USB drive loaded with the software update file into the USB port and touch this line to select the appropriate file to load. Safety Tips: Familiarize yourself with the Pre- Ride Checklist, Maintenance and Diagnostic Safety Tips for your vehicle. -
Page 24: Troubleshooting
Troubleshooting General Troubleshooting Guide Display appears not to work or doesn’t come ON. 1. Display could be in sleep mode. Touch the screen to activate the display. 2. Check for loose connections at the battery and display unit. 3. Check for reversed polarity on the power connections. 4.
