Sentryus DDR-08-1U Quick Setup Manual

Full d1 realtime h.264 dvr – 8 / 16 ch
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Full D1 Realtime H.264 DVR – 8 / 16 CH.
Quick Setup Guide

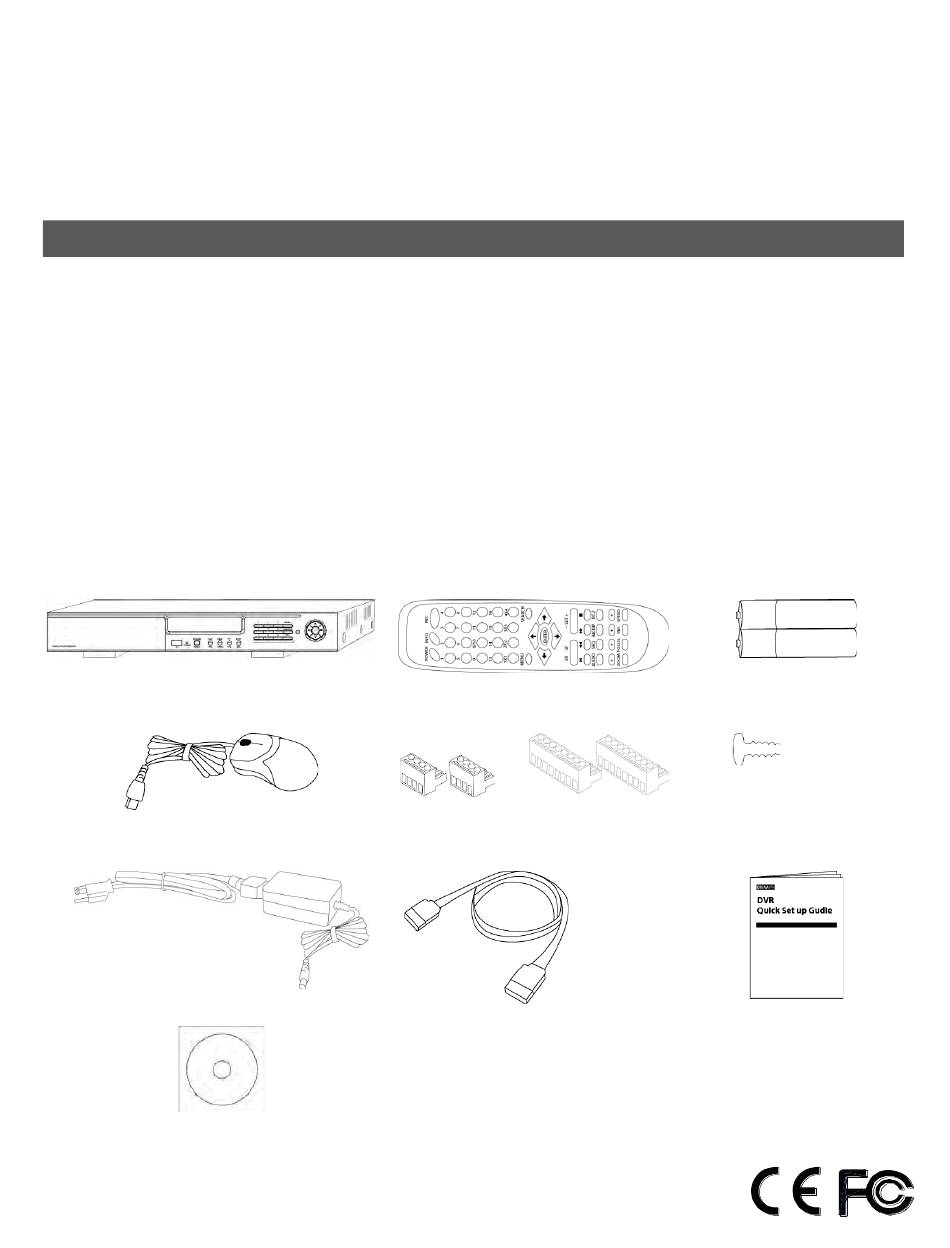

PACKAGE CONTENTS
A.
One (1)
DDR-08-1U / DDR-16-1U DVR
B.
One (1)
Remote Controller
C.
Two (2)
AAA Battery for Remote Controller
D.
One (1)
USB Mouse
E.
Two (2)
8 Screw on Terminal Connector
Two (2)
4 Screw on Terminal Connector - DDR-16-1U
F.
Eight (8)
Hard Drive Screws - DDR-08-1U
Twelve (12) Hard Drive Screws - DDR-16-1U
G.
One (1)
12V DC / 5Amp w/ Power Cord
H.
Two (2)
SATA Cable Inside - DDR-08-1U
Three (3)
SATA Cable Inside - DDR-16-1U
I.
One (1)
Quick Set up Guide Book
J.
One (1)
CMS Software & Manual CD
A.
D.
G.
J.
Thank you for purchasing our product.
Please read this quick guide before using
the product. Change without notice.
B.
E.
x 2 (16 CH.)
x 2 (8 / 16 CH.)
H.
Inside the DVR
x 2 (8 CH.)
x 3 (16 CH.)
DDR-08-1U / DDR-16-1U Quick Setup Guide
DDR-08-1U
DDR-16-1U
C.
F.
I.
*Note: Any Return Must Include All Components
**Recommend to use UPS Battery Backup.
MADE IN TAIWAN
x 8 (8 CH.)
x 12 (16 CH.)
R201302-V05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDR-08-1U and is the answer not in the manual?

Questions and answers

Summary of Contents for Sentryus DDR-08-1U

  • Page 1 DDR-08-1U / DDR-16-1U Quick Setup Guide DDR-08-1U DDR-16-1U Full D1 Realtime H.264 DVR – 8 / 16 CH. Quick Setup Guide PACKAGE CONTENTS One (1) DDR-08-1U / DDR-16-1U DVR One (1) Remote Controller Two (2) AAA Battery for Remote Controller...

  • Page 2: Panel Definition

    DDR-08-1U / DDR-16-1U Quick Setup Guide Panel Definition 1. Front Panel Item # Label Name Function Connect USB thumb drive or mouse REC / FOCUS Manual record / focus adjustment(PTZ) PLAY / IRIS Enter Playback/ iris adjustment (PTZ) REW / SPEED Fast rewind on playback mode / speed adjustment (PTZ) FF / P.T.Z.
  • Page 3 DDR-08-1U / DDR-16-1U Quick Setup Guide Item # Label Name Function Connect to monitor as an AUX output channel by channel. Only video display, Spot out no menu show Audio out Audio output, connect to the sound box POWER INPUT...

  • Page 4: Control Option

    DDR-08-1U / DDR-16-1U Quick Setup Guide Control Option 1. Remote Controller This remote control use AAA battery, the definition as following: Item # Label Name Function Power System shut down INFO Enter information page Manual record Digital Button Enter digital or switch channel...

  • Page 5: Wizard Setup

    DDR-08-1U / DDR-16-1U Quick Setup Guide 3 Under Backup mode Single click left button to select item, single click right button to jump back to previous page. 4 Under PTZ mode Single click left button to operate PTZ function, single click right button to jump back to previous page.
  • Page 6 DDR-08-1U / DDR-16-1U Quick Setup Guide If Schedule Motion Recording needs to be changed: To modify motion recording schedule click on the pencil icon located on the upper right of the screen, then click on desired days and times to schedule recording when motion trigger.

  • Page 7: Part 1. Static Ip Address

    DDR-08-1U / DDR-16-1U Quick Setup Guide Network Setup: Static IP Address & DDNS Part 1. Static IP Address 1. Enter Main Menu screen by pressing the MENU 2. Select Setup. button on the front panel of the DVR. Then enter password “123456” and click Login 3.
  • Page 8 DDR-08-1U / DDR-16-1U Quick Setup Guide Part 2. DDNS 1. Continue Part 1: Select “Other Setting” from the Tab bar and turn on DDNS. Select DDNS Type and pick one website from the given field to register your Host Domain Name.
  • Page 9 DDR-08-1U / DDR-16-1U Quick Setup Guide Now enter User Name, Password, and Host Domain that you wrote down earlier and click Test After Test passes, then click Apply and Exit. TIP: The DDNS URL will always be in the form of <hostname>.dvrdydns.com...
