Summary of Contents for DPL Hercules

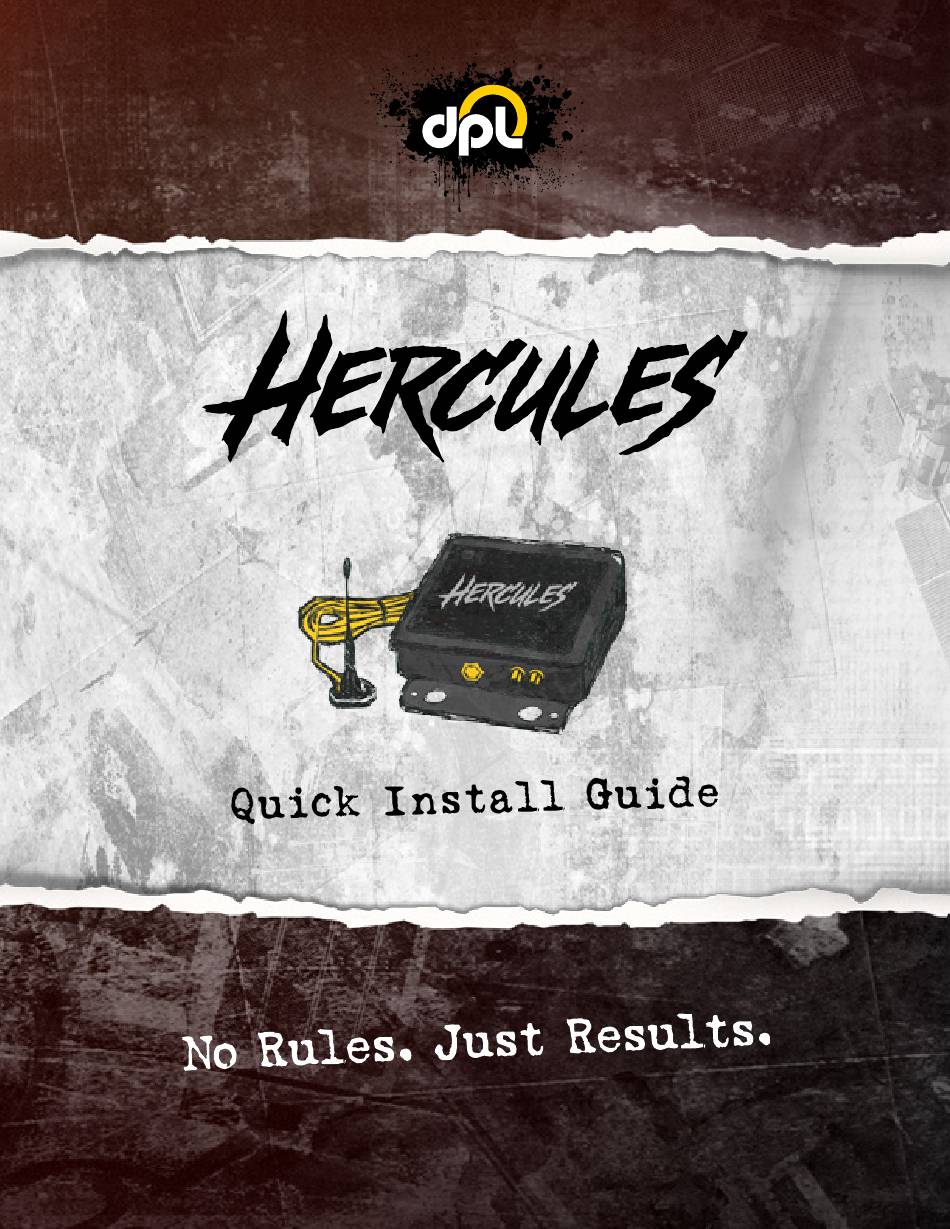

- Page 1 REV # – DPL500ATMLTER2...
-
Page 2: Table Of Contents
Table of Contents Equipment Supplied Connecting the Hercules ATM Configuration RMS Configuration Specifications... -
Page 3: Equipment Supplied
If any of the above items are missing please contact DPL. Before You Begin Activate the Hercules (if not pre activated) a minimum of two-days before installation by logging in to the Hercules Portal at hercules. dplwireless.com or by contacting DPL technical support at 1-800-561-8880 or by email at support@dplwireless.com... -
Page 4: Connecting The Hercules
ATMs. Message format supplied by transaction processor. Connecting the Hercules Step 1 Connect the antennas to the Hercules by screwing the SMA connectors into the antenna jacks of the Hercules (hand tight). Secure the magnetic mounts at the base of the... - Page 5 Connect the required communication cable (ethernet or telephone) from the ATM to the Hercules. Step 3 Plug the power adapter into the Hercules and then plug it into an AC outlet. Verify the green Power indicator is lit on the Hercules. support@dplwireless.com...
-
Page 6: Atm Configuration
Verify the green ATM and SRVC indicators are lit indicating the Hercules is successfully communicating with DPL’s data centers. Step 5 Place the Hercules inside the safe of the ATM and lock the safe. ATM Configuration Depending on your chosen connectivity type, configure the ATM using the settings below: •... -
Page 7: Rms Configuration
Host • Disable URL • Host Address (1&2): 192.168.0.52 • Host Port (1&2): 8000 • Disable SSL • Disable Permanent TCP/IP Dial Up • Modem speed: 1200 baud or 2400 baud Host • Host number: 555-0120 RMS Configuration (Optional) 2-Way configuration is available for ATMs that use remote management software (RMS). - Page 8 The Hercules+ supports v.22bis, v.32 and v.32bis (2400 – 14,400) baud rates for 2-Way. • RMS Server IP: 192.168.0.53 Note: The above settings are DPL’s standard configuration. If these settings are not available in your ATM, contact DPL technical support. Step 2...
- Page 9 FCC Statement Antenna Placement: Place antenna so a minimum of 8 inches is maintained between it and any person to limit RF exposure to within FCC guidelines. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 10 (3) Connect the equipment into an outlet or a circuit different from that to which the receiver is connected, and (4) Consult DPL or an experienced radio/TV technician for help. Warning Changes or modifications not expressly approved by DPL could void the user’s...
- Page 11 Digital Cellular Phones. Trademarks and Copyright Hercules/Hercules+ is a trademark of DPL. All rights to this publication are reserved. No part of this publication may be copied, reproduced, transmitted or stored in any form or by any...
-
Page 12: Specifications
Specifications Warranty 5 years parts and labour. Details available from DPL. Dial In Interface Central Office POTS Line, RJ-11, 2400 baud v.22bis or 1200 Baud Ethernet Port Supports 10/100T speeds and straight or crossover cables Interface Port Custom port for Protetcor / Restart...
