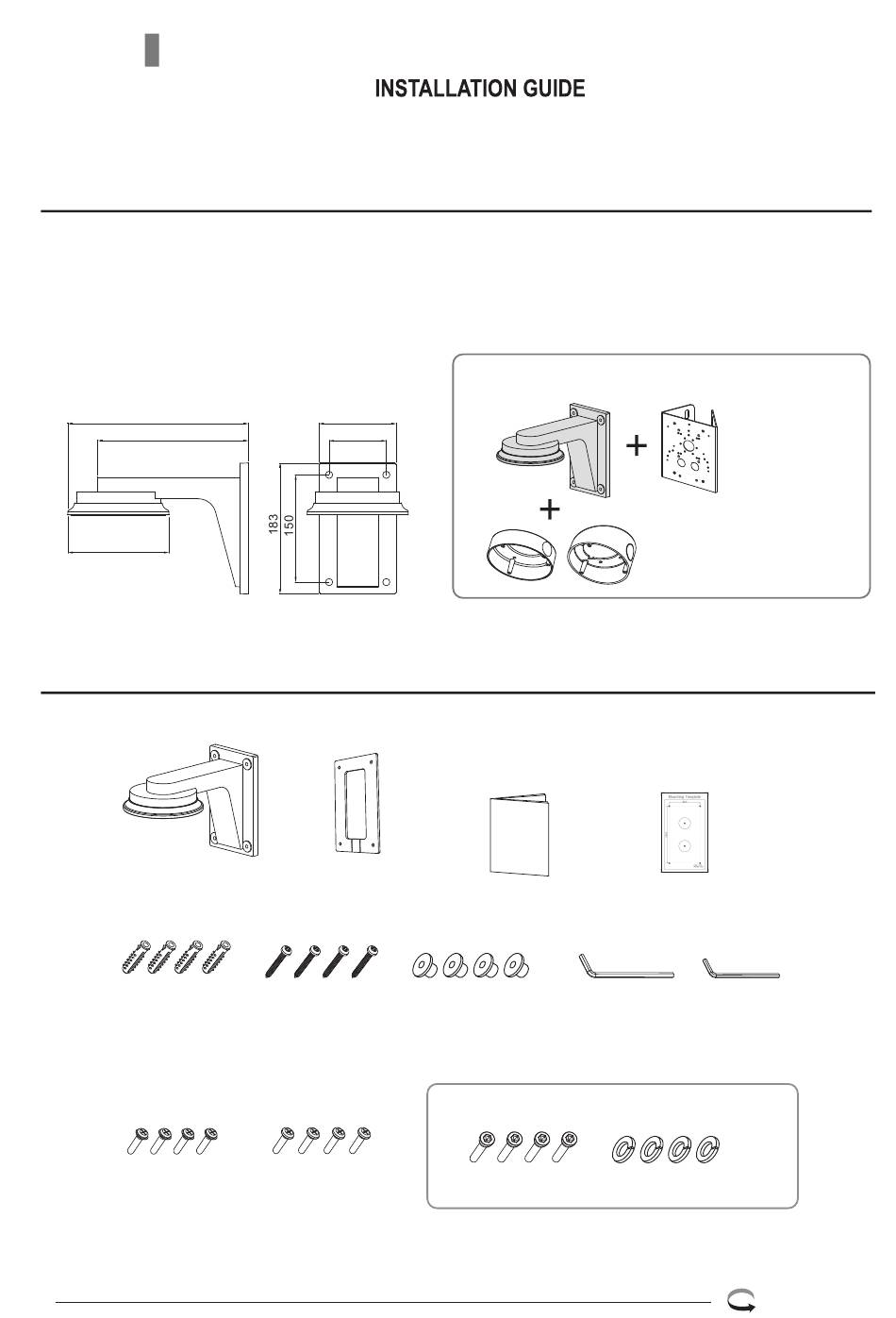

Wall Mount Bracket
PRIOR to USE
Install the mount onto a strong structure such as concrete
wall. Use the supplied accessories when installing the
mount bracket depends on mounting position.
DIMENSION
(unit: mm)
252.7
211
Ø141.4
PARTS SUPPLIED
Wall Mount Bracket
Plastic Anchor
8x35mm (Q'ty:4)
Assembly Screw : for main bracket
M3x12mm (Q'ty:4)
108
80
EVA Rubber
(Q'ty:1)
Mounting Screw
SUS Bushing (Q'ty:4)
M5x40mm (Q'ty:4)
M4x12mm (Q'ty:4)
Screwed in Mount-Plate
for Vandalproof dome
SPECIFICATION
Construction:
Aluminum cast
Environment:
Wall mount for a Vandalproof dome
Dimension(mm):
Ø141.4(W)x183(H)x252.7(L)
Weight:
1 kg (2.2 lb)
APPLICATION
Installation
Guide
L-Wrench
5mm (Q'ty:1)
Mounting Screw : for Pole mount adaptor
M6x20mm (Q'ty:4)
Spring Washer (Q'ty:4)
Pole mount adapter
(mounting on the
pole-like structure)
Surface mount or
Tilted mount adaptor
Mounting
Template
L-Wrench
3mm(Q'ty:1)
Please Turn Over
Advertisement
Summary of Contents for Ronix RWMB-1000
- Page 1 Wall Mount Bracket for Vandalproof dome SPECIFICATION PRIOR to USE Install the mount onto a strong structure such as concrete Construction: Aluminum cast wall. Use the supplied accessories when installing the Environment: Wall mount for a Vandalproof dome mount bracket depends on mounting position. Dimension(mm): Ø141.4(W)x183(H)x252.7(L) Weight:...
- Page 2 INSTALLATION 1. Locate the mounting template at the installation position and drill the wall. 2. Remove the release paper of EVA rubber and attach to bottom of the bracket. (If the bracket is installed on outdoor wall, take off the missing line for water drain) 3.
