Bartec 07-3353-31.3 Operating Instructions

Operating Instructions
Description
These lamp modules are used everywhere
in Group IIC, Zone 1 hazardous areas where
machine functions are to be activated by
pressing a button and the functional status
of the respective machine is to be indicated
visually.
Each actuating element is fitted into a
mounting hole on a control console or panel.
The respective lamp module is then fas-
tened without tools to the actuating element
and secured with a fixing nut (see following
pages for assembly).
The easy installation of the actuators in the
control console or panel allows conformance
to a high IP degree of protection.

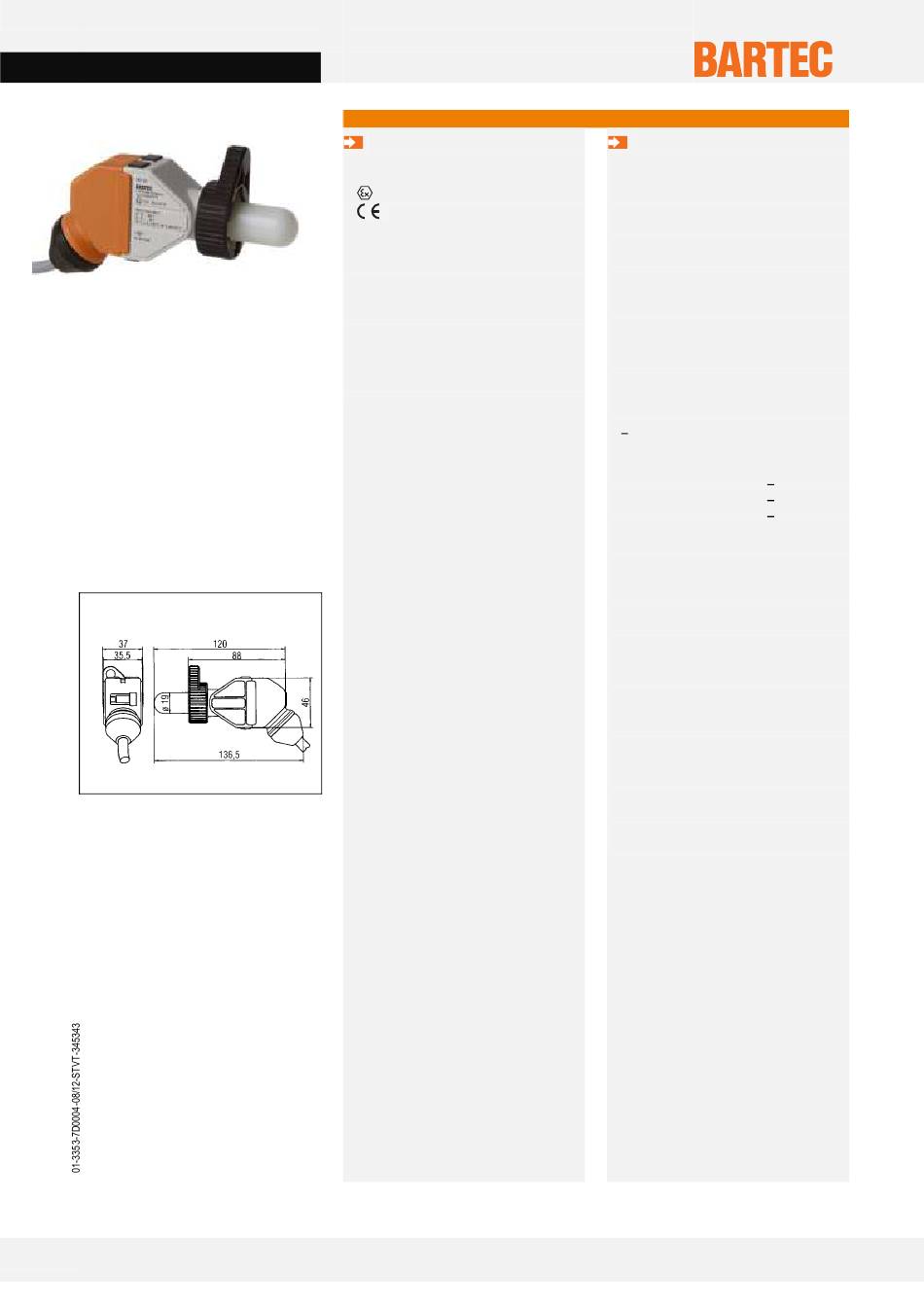

Dimensions in mm
BARTEC
GmbH Max-Eyth-Straße 16
D-97980 Bad Mergentheim
Lamp module
Type 07-3353-31.3
Lamp module with connection cable
Explosion protection
Ex protection type
II 2G Ex d IIC T6
0044
Certification
PTB 97 ATEX 1065 X
Ambient temperature
-40 °C to +50 °C
Storage, transport: -55 °C to +70 °C
approved for Zone
1
Tel.: +49 7931 597-0 info@bartec.de
Fax: +49 7931 597-119 www.bartec.de
Technical data
Protection class
determined by actuating element and
additional enclosure.
Lamp module up to IP 67 in combination
with actuating element
PTB 00 ATEX 3114 U.
Weight
approx. 180 g (without connection
cable)
Rated insulation voltage
300 V
Power consumption
< 1 W
Rated operating voltage (Ue)
AC 12 V to 250 V
DC 12 V to 60 V
AC/DC 12 V to 24 V
Enclosure material / manufacturing process
Thermoplastic / injection moulding
Connection
integrated connection cable, 3 m
ø 6.4 mm, 2 x 0.75 mm
Lamp
LED (red, green, yellow, white, blue)
Illumination
very bright, visible angle up to 180°
Service life
electrical > 10
Mounting
locked, by bayonet lock
Technical data subject to change without notice. Changes, errors and
Reservation
misprints may not be used as a basis for any claim for damages.
(T < +50 °C)
a
(T < +50 °C)
a
(T < +60 °C)
a
2
5 running hours
1/3
