Summary of Contents for Red Stone BY1201

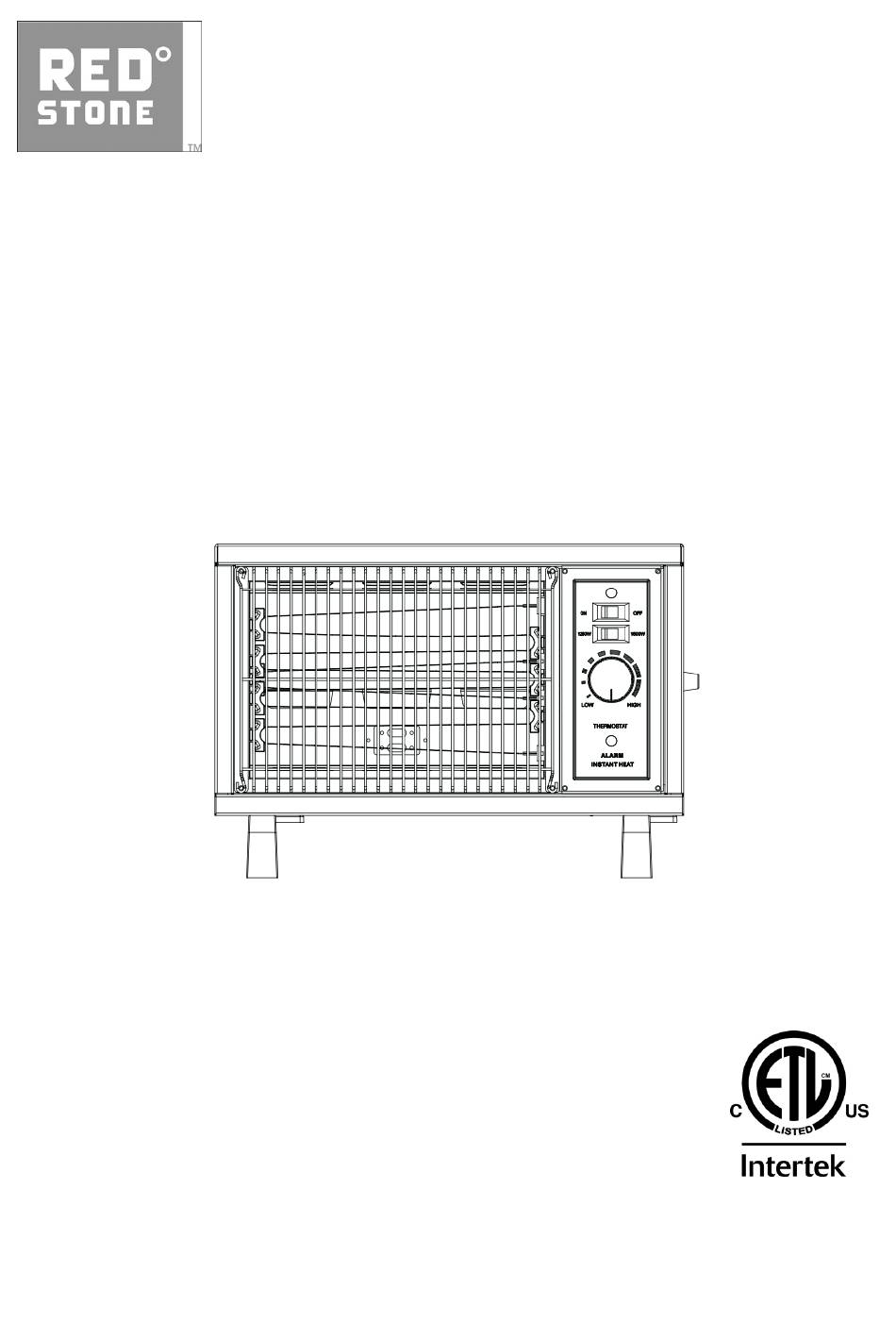

- Page 1 Redstone Electric Radiant Heater OWER’S MANUAL Model No. BY1201 SKU No. 1241595 PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.
- Page 2 Thank you for choosing our Electric Radiant Heater. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS, BEFORE USING THE HEATER WARNING! ! POTENTIAL FOR ELECTRICAL HAZARD IF NOT ADHERED TO! When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. - Page 4 from heated surfaces and open flames. 13. Always plug heaters directly into a wall outlet / receptacle Never use with an extension cord or relocatable power tap (outlet/power strip) 14. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet. 15.
-
Page 5: Specifications
SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 1500W Unit Size 16.34 in. (L) x 7.09 in. (W) x 11.42 in. (H) Unit Weight 5.29 lbs SAFETY FEATURES Overheat Safety Feature This heater is equipped with a shut-off safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. - Page 6 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
-
Page 7: Product Diagram

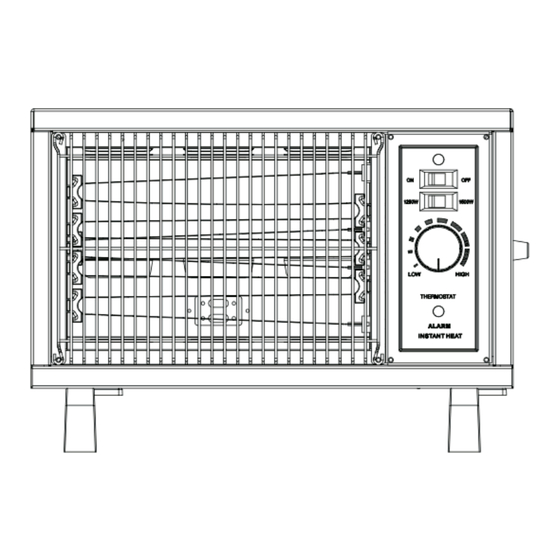

PRODUCT DIAGRAM... -
Page 8: Panel Diagram
PANEL DIAGRAM... -
Page 9: Instructions For Assembly
INSTRUCTIONS FOR ASSEMBLY To complete assembly, please follow these steps in order: 1. Place heater upside down. 2. Ensure Front of Heater and Front of Legs are in correct position. (Fig. 1) 3. Insert Base Feet into notches on bottom of heater. Slide toward front of heater until secure. (Fig. 2) 4. -
Page 10: Maintenance
STARTING UNIT AND SELECTING HEAT MODE FUNCTION SWITCH ON PANEL Turn the heater ON by pressing the HEAT ON/OFF button. Turn the heater OFF by pressing the HEAT ON/OFF button. Press the Mode button to toggle between the heat modes. High Mode (1500 W)/Low Mode (1250W) SELECTING DESIRED TEMPERATURE FUNCTION... -
Page 11: Troubleshooting
TROUBLE SHOOTING If the heater will not operate, please check the following: 1. Check if the power cord is plugged into an electrical outlet. If not, plug in unit to appropriate outlet. 2. Check if electricity to the outlet is working. 3.
