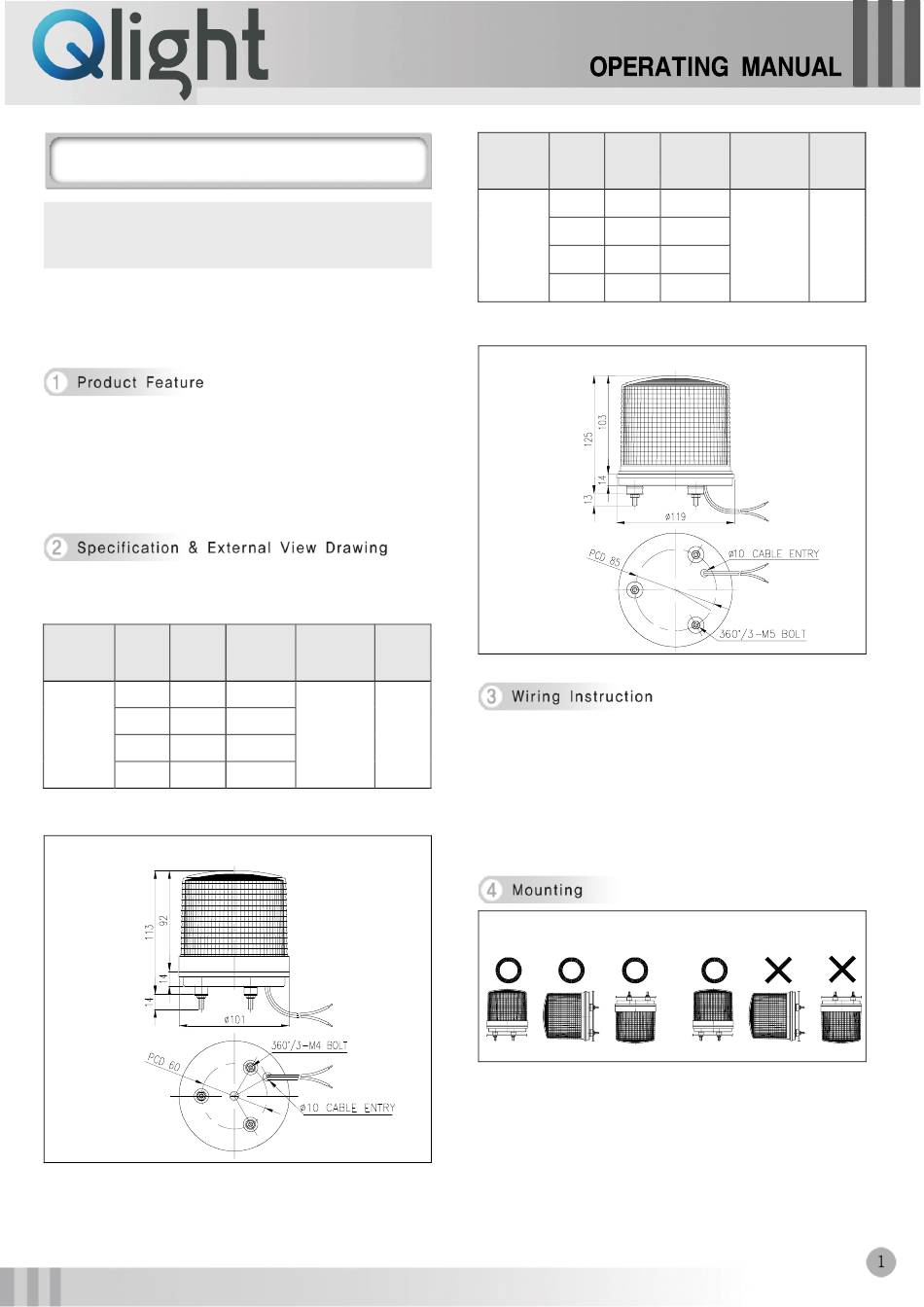

Qlight S100S Operating Manual

ww w.qlight.com
S100S / S125S
OPERATING MANUAL

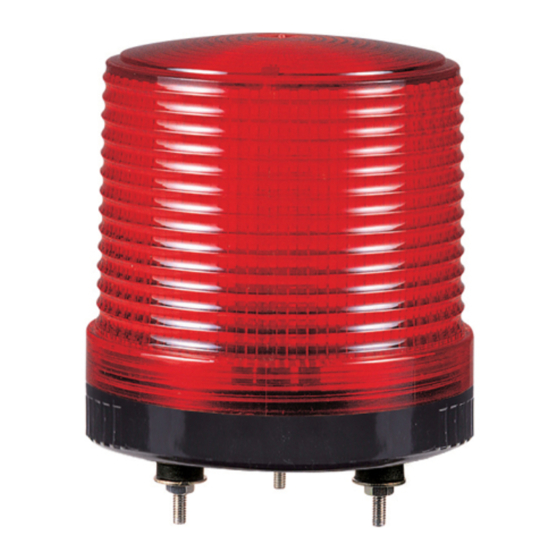

Xenon Lamp Strobe Light
Thank you for purchasing QLight product. Please read this
manual carefully before installing this product for safe and long
use.
▪ Suitable for a bright place and a signal transfer for a long
distance with a strong strobe signal light.
▪ Easy to change its lamp by taking a connector type lamp.
▪ Material : Lens-AS, Body-ABS
▪ Flashes : 60-80/Min.(Continuous flashing of 2 times)
▪ Protection Class : IP54
1) S100S
▪ General Specification
Rated
Model Current
Voltage
DC12V 1.001A
DC24V 0.616A
S100S
AC110V 0.133A
AC220V 0.106A
▪ External View Drawing
2) S125S
▪ General Specification
Weight Flashes Color
0.25Kg
RED-R
0.25Kg
AMBER-A
60~80/min.
GREEN-G
0.25Kg
BLUE-B
0.25Kg
S100S
Rated
Model Current
Voltage
DC12V 1.001A
DC24V 0.616A
S125S
AC110V 0.133A
AC220V 0.106A
▪ External View Drawing
Power line UL1015-NO.18(0.75sq) x 2C 400mm comes out from
the product.
▪ In case of product using AC voltage, connect the line without
Polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
Indoor
▪ This product was manufactured with the structure for indoor
use. Installing in any direction is okay for indoor use.
▪ Outdoor use is limited at a place where no water or very little
water percolates. Mounting also should be done only on the
vertical standing direction.
▪ Mount at the place where exists low vibration, low impact, low
moisture and low dust as long as possible.
Weight Flashes Color
0.25Kg
RED-R
0.25Kg
AMBER-A
60~80/min.
GREEN-G
0.25Kg
BLUE-B
0.25Kg
S125S
Outdoor
