September
HASSEB AUDIO OVER ETHERNET XLR INSTRUCTIONS MANUAL
19, 2018
VERSION 1.0

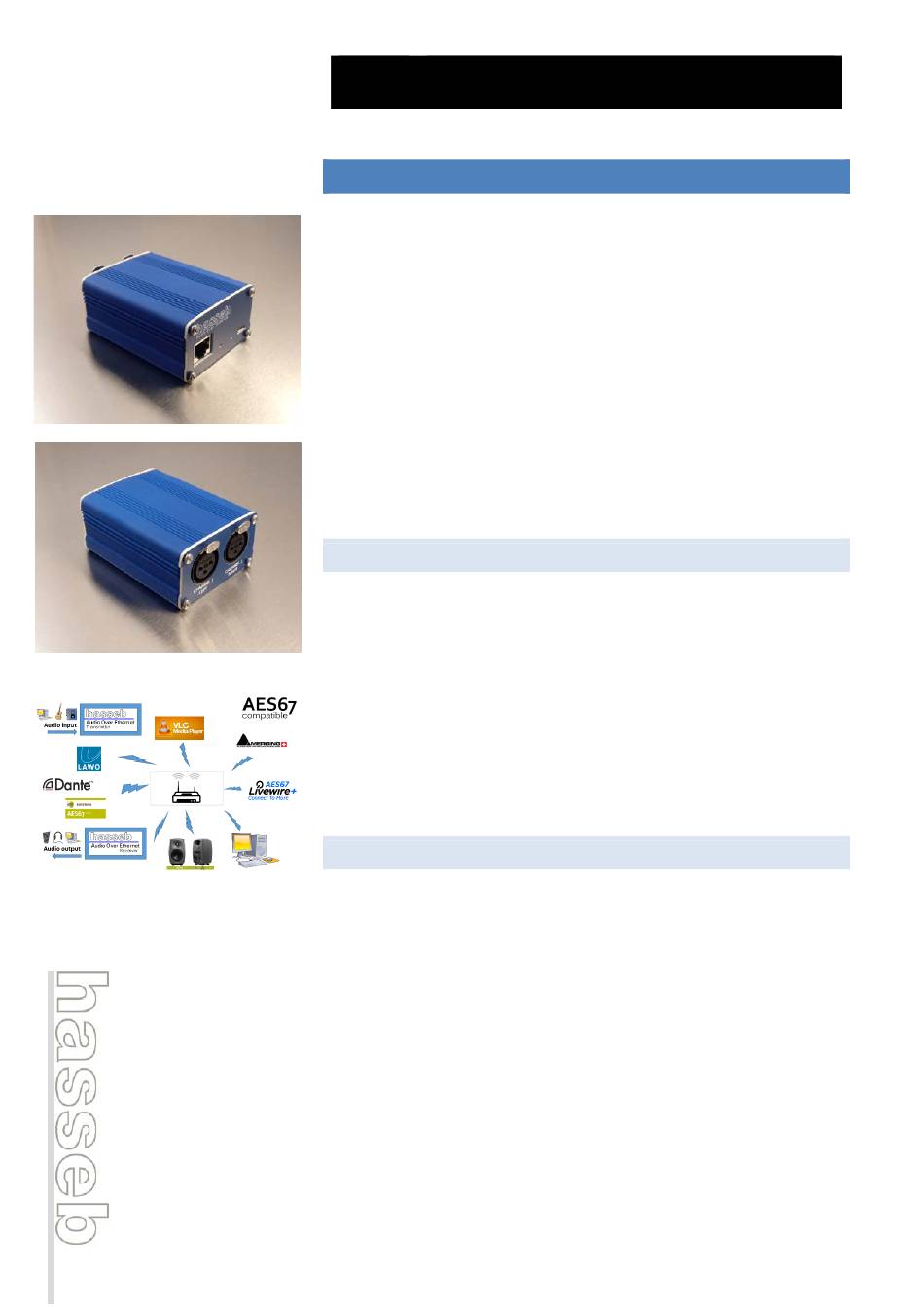

HASSEB AUDIO OVER ETHERNET XLR
hasseb Audio over Ethernet XLR is an easy to use and portable device used to send
lossless, realtime microphone audio signal using Ethenet network. The device is
compatible with AES67 standard and can be used as a standalone device or
together with other AES67 compatible devices.
Two 3-pin XLR audio connectors are used to connect microphones to Ethernet
netowork. The device has two input channels with a high quality analog amplifier
and A/D converter to digitize the analog microphone signals. In addition, the
device has a 48 V phantom source for microphones requiring phantom power.
The device is configured using a web user interface and mDNS (multicast Domain
Name System) protocol is supported to easily find the device IP addresses from
the network. For professional grade network audio systems PTP (Precision Time
Protocol) based time synchronization is required. The device can act as IEEE1588
grand master to provide synchronization clock signal to the network.
INSTALLATION
The device can be powered through the Ethernet cable using a Power over
Ethernet capable switch of through a micro USB connector with an external 5 V
USB power supply.
DHCP (Dynamic Host Configuration Protocol) support is enabled by default, so the
device will assign an IP address automatically. All hasseb Audio over Ethernet XLR
devices and most other AES67 devices and their names and IP addresses
connected to the network can be found using any software, capable of searching
the network for mDNS supported devices. If you have normal domestic network
router, the web user interface of you router can also be used to find the IP
addresses of the connected devices.
WEB USER INTERFACE
The device can be configured for network, audio, and stream settings using any
web browser. Writing the IP address of the device to the address field of your web
browser, the configuration page will be opened. You can find the IP address of the
device from your network router or using free third party software such as Bonjour
Browser or MT Discovery.
hasseb Inc.
info@hasseb.fi
www.hasseb.fi
Advertisement
Summary of Contents for HASSEB AUDIO OVER ETHERNET XLR
- Page 1 VERSION 1.0 HASSEB AUDIO OVER ETHERNET XLR hasseb Audio over Ethernet XLR is an easy to use and portable device used to send lossless, realtime microphone audio signal using Ethenet network. The device is compatible with AES67 standard and can be used as a standalone device or together with other AES67 compatible devices.
-
Page 2: Audio Settings
September HASSEB AUDIO OVER ETHERNET XLR INSTRUCTIONS MANUAL 19, 2018 VERSION 1.0 Figure 1: A web browser is used to configure the device. AUDIO SETTINGS The phantom voltage can be set on/off using the audio settings. The initial startup volume level for the left and right channels can be set individually between -100 and 100, where a volume level of -100 mutes the microphone and 100 means full amplification. -
Page 3: Network Settings
After configuration of new network settings, the device will reboot automatically. STREAM SETTINGS The network audio stream sent by hasseb Audio Over Ethernet device is named as AES67-stream (on ‘network_hostname’), where ‘network_hostname’ is the hostname of the device as defined in network settings (for example AES67-stream (on hasseb-AoE-AB-CD)). -
Page 4: Status Led
September HASSEB AUDIO OVER ETHERNET XLR INSTRUCTIONS MANUAL 19, 2018 VERSION 1.0 STATUS LED There is a blue LED next to the USB connector of the device to indicate the status of the device. The LED will blink once a second when the device is operating properly. - Page 5 September HASSEB AUDIO OVER ETHERNET XLR INSTRUCTIONS MANUAL 19, 2018 VERSION 1.0 Specifications Input voltage 5 VDC (USB) / 48 V (PoE) Input current 300 mA Input audio voltage 50 mV Phantom voltage 48 ± 2 V Operating temperature 0 – 50 °C...
