Product Introduction

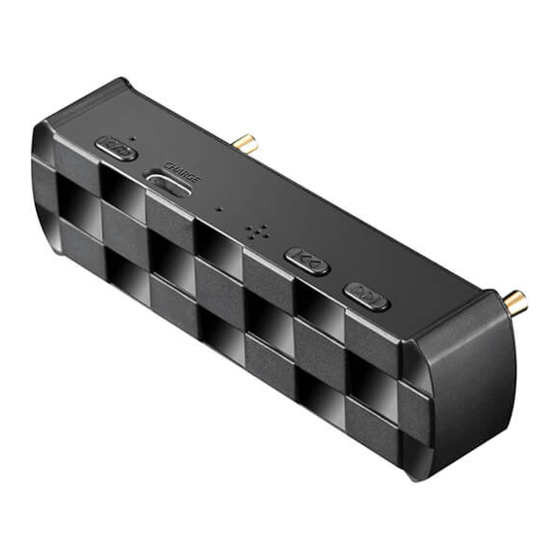

05BL Pro is a bluetooth digital turntable specially designed for
XD05/XD05Plus. It adopt Qualcomm CSR8675 bluetooth chip,
supports bluetooth 5.0, it supports AAC, aptX, aptX_LL，aptX_HD，
LDAC signal and converts bluetooth audio signal into high quality
coaxial digital output. After transmission to XD05/XD05Plus for
digital decoding, your XD05/XD05Plus will be upgraded into a
bluetooth decoding headphone amp to terminate the restriction of
wires and open up a new music era of freedom.
Product Features
◆Built-in Qualcomm CSR8675 bluetooth chip;
◆It supports SBC,AAC, aptX, aptX_LL，aptX_HD，LDAC signal;
◆High quality coaxial output;
◆Built-in microphone from Panasonic;
◆Available power check with IOS devices or Android phones after
connection supported;
◆Three-colored LED and clear all-control of the work status;
◆Independent buttons, easy and practical.
3
2
5
4
1
6
Parts and Controls
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for xDuoo 05BL Pro
- Page 1 Product Introduction 05BL Pro is a bluetooth digital turntable specially designed for XD05/XD05Plus. It adopt Qualcomm CSR8675 bluetooth chip, supports bluetooth 5.0, it supports AAC, aptX, aptX_LL，aptX_HD， LDAC signal and converts bluetooth audio signal into high quality coaxial digital output. After transmission to XD05/XD05Plus for...
- Page 2 1、 power/play key 1) Long press to power on, it will be entered the matching mode, please find and connect 05BL Pro to your Bluetooth device. It will connected the last Bluetooth device after power on. 2) If your phone can’t find the 05BL PRO, please double-click this key, force it entered the matching mode, and find again.
- Page 3 1、Bluetooth work status Blue LED fast blinks if Matching; slow blinks if connected; breathing light if playing music. 2、Charging Red LED on if charging, Blue LED on if fully. DFU upgrade mode 1、It will enter DFU upgrade mode if press and hold the up and down key 5 seconds.
- Page 4 2，After installing, power XD05/XD05 PLUS on, press INPUT key to the screen displays COAXAIL IN. See the figure. 3，Power 05BL Pro on and connect with the bluetooth device. Play the music and enjoy the music. 4，Demount the screws on both sides of the volume knob if installation of protection casing is required.
- Page 5 5，The battery life of 05BL Pro is consistent with XD05/XD05 PLUS. Disconnect them and charge them respectively if the power runs out.
