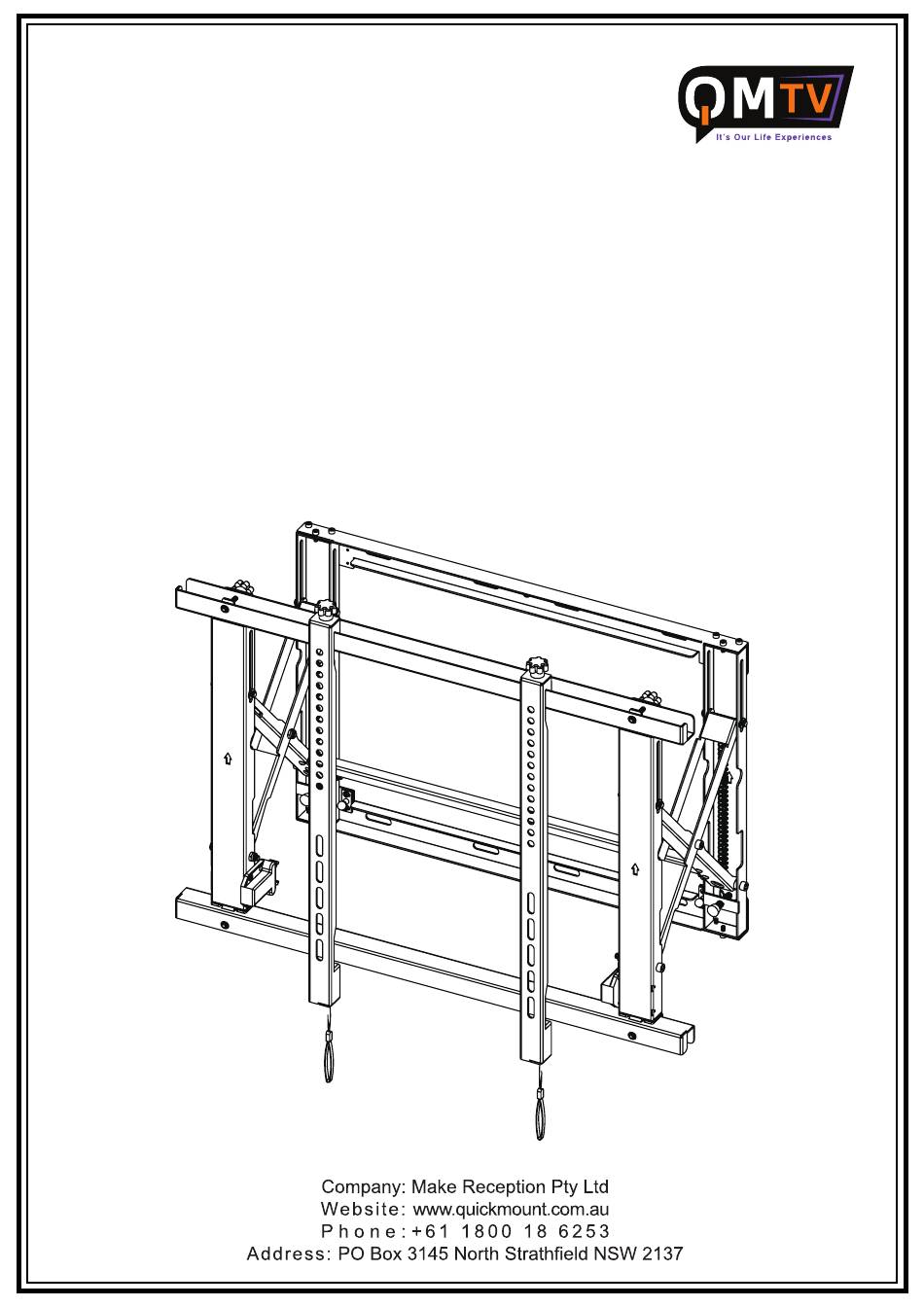

- Page 1 INSTALLATION GUIDE Video Wall Mount MV-70/400 Support 32" to 70" Screens Max Load Capacity: 100 lbs (45 kg) VESA 400x600 compatible...
-
Page 2: Table Of Contents
WARNING • Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before attempting to begin your installation. • This product should only be installed by someone who has a basic knowledge of building construction,installation and fully understands these instructions. -
Page 3: Parts List
Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List Description Magentic Spirit Level(x1) Magentic Spirit Level 15x15x40 philips pan head screw M6x12 philips pan head screw M6x25 philips pan head screw M8x12... -
Page 4: Assembly Outline
Assembly Outline (At least two people are needed) Confirm the installation environment, then fix wall plate to the wall using the following methods. STEP1 Take out the packaged bracket, push two sides of it by hands, it will open based on the force of the spring. -
Page 5: Install To Solid Concrete Or Cinder Block
Install to Solid Concrete or Cinder Block WARNING • When installing the wall mount to cinder block, verify that you have a minimum of 1-3/8" of actual solid concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Install To Single Wood Stud Wall
Install to Single Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 7: Installation Of The Screen
Installation of the screen hooks Spacer(1) hooks (D&E don’t need F(washer 1)) (Flat screen is not provided) hook WASHER(1) (Flat screen is not provided) hooks secure the hooks to the mount using the locking tabs on both hooks. After the TV is installed, if the TV was not in a horizontal line, peaple After the TV is installed, if the TV was not in a flat situation, peaple can turn the can adjust the tv by the screws, the max adjustable distance is 15mm screws, so the pole can be pushed ahead slowly, by this way, the inclination of... -
Page 8: Product Dimensions
MV-70/400 PRODUCT DIMENSIONS [2.59~10.51] from MIN65.7mm to MAX 267.7mm Four corners can be adjusted independently: △10mm 25.98 660.0mm 24.69 max to 627.0mm 1.14 16.14 29.0 mm 410.0mm 3.15 80.0 mm 8 of 8...
