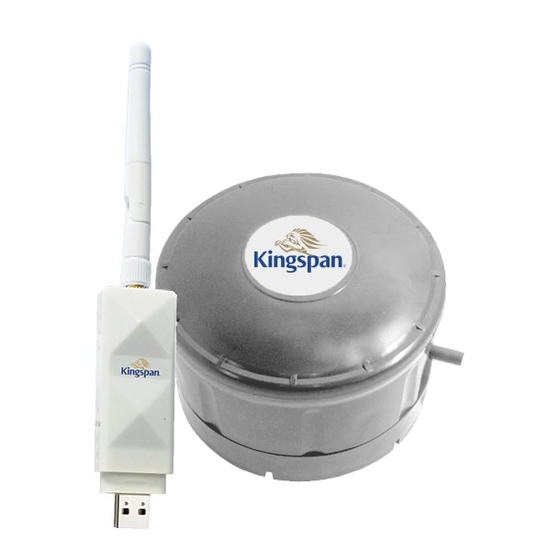

SENSiT
Advanced Tank Transmitter
Installation Manual
This product is to be used only on tanks within the parameters outlined in the specifications.
Any use of the product on applications that lie outside these specifications is done so at users own risk.
Read fully before installation and use
Check level,
distance
and height
A
A. Weather Seal B. Screws C. Watchman Sonic Advanced Transmitter D. Watchman Sonic Advanced Base Parts B
and D are not needed if unit is supplied with EcoSafe tank. E. Waveguide Adapter for optional waveguide installation
®
Drill
Apply
Tank
Base
B
Measure
Tank
D
C
Fit
transmitter
to the
base
E
Advertisement
Table of Contents
Related Manuals for Kingspan SENSiT
Summary of Contents for Kingspan SENSiT
- Page 1 SENSiT ® Advanced Tank Transmitter Installation Manual This product is to be used only on tanks within the parameters outlined in the specifications. Any use of the product on applications that lie outside these specifications is done so at users own risk.
- Page 2 Advanced Tank Transmitter Installation Manual 1. CHECK LEVEL, DISTANCE AND HEIGHT Ensure before you start your install that the tank the Watchman Sonic Advanced is to be fitted: 1. On a flat level base. 2. Within a 200 metre range from receiver position. 3.
- Page 3 V.1 EN NB: For tanks with window corrugations or internal braces ensure Tank Braces that the Watchman Sonic Advanced is not positioned above or within 15cm of the area of the WINDOW or the edge of the tank. If the Watchman Sonic Advanced is positioned over or close to the WINDOWED area it transmits incorrect readings to the receiver.
- Page 4 5. WAVEGUIDE PIPE INSTALLATION (OPTIONAL) Choose a suitable Outer Tank • Choose a flat level point that is at the same Outer Tank position for transmitter (Bund) level and no higher than any opening at the top of the tank (filling point etc) •...
- Page 5 Drill a hole in the place that you have selected on the tank’s top surface using a 58mm hole-saw. (shown in Picture 15) Warning: If you are unsure if you should drill the tank please check with the tank manufacturer first.
- Page 6 Pipe Type: ABS 32mm Waste Pipe, (available in your local DIY store) The actual size of pipe is approximately 36.3mm Outer Diameter x 31.8mm Inner Diameter * Never joint the pipe, it must be a single piece. Pipe lenght 40mm clearance 40mm clearance...
- Page 7 • Purchased over 1 year ago. (Proof of purchase will be required). Out of Warranty Only • Returned to Kingspan Water & Energy in a form other than in Though the lithium battery will have a very long service life, it which they were originally supplied.
- Page 8 However, it cannot prevent theft E: sensor@kingspan.com or leakage and householders should take all reasonable steps to ensure the tank is 5 013 573 87 621 2 kingspan.com secured. Kingspan Water & Energy Limited accepts no liability for any fuel losses.
